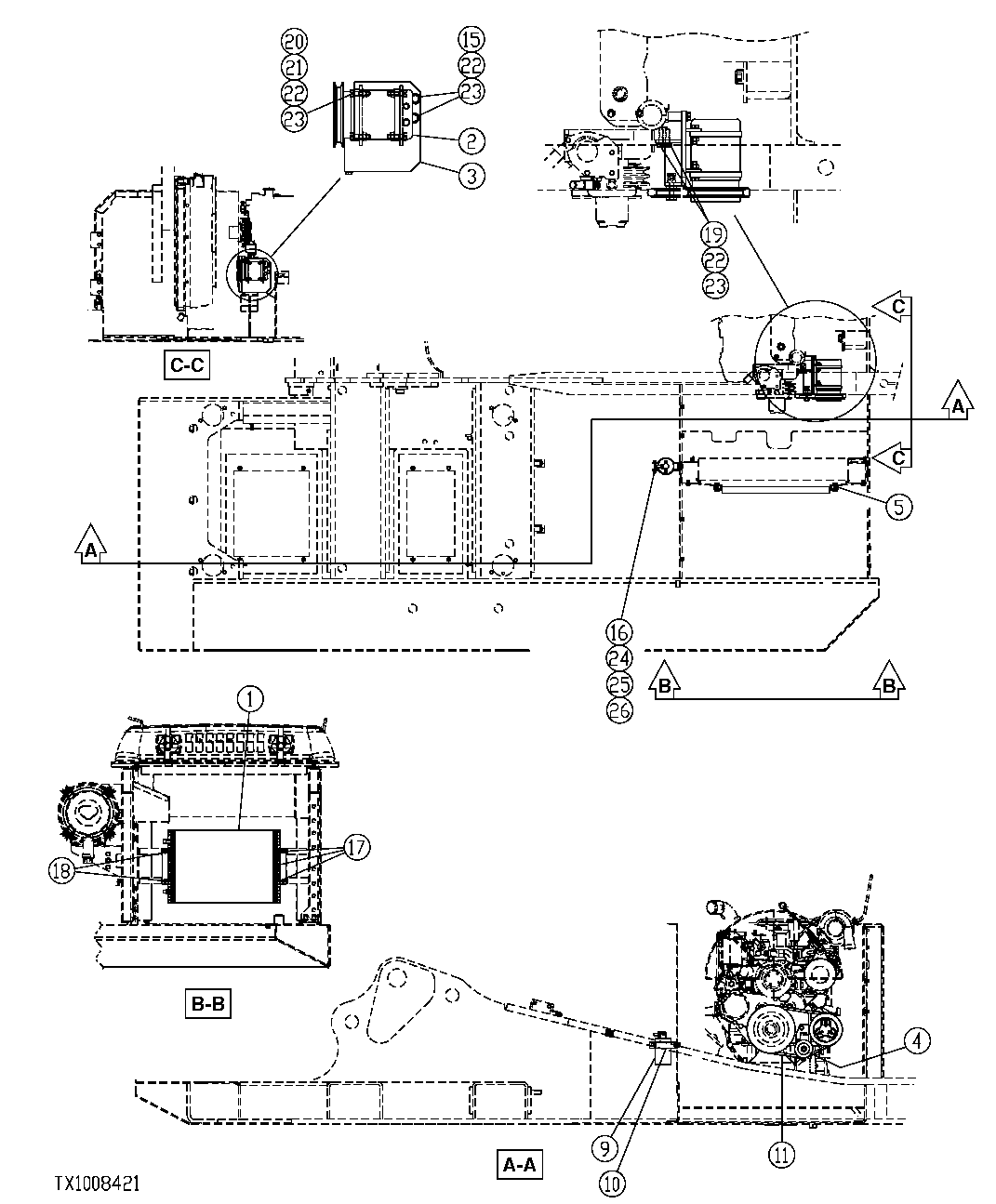

Запчасти John Deere 554 329 - AIR CONDITIONER COMPRESSOR, CONDENSER, AND RECEIVER-DRYER 1830 HEATING AND AIR CONDITIONING

1

DH400538

Vapor Condenser

SUB FOR FFSB110319

1шт.

2

FF200866

Compressor

See DTAC Solution 107167 For New Compressor Part Numbers Required N LA, SUB FOR DH400539 AND FFSB11032 0

1шт.

3

DH700088

Bracket

USE WITH FF200866, SUB FOR FFSB110998

1шт.

4

4346770

Pulley

SUB FOR FFSB110991 OR AT213915

1шт.

4451204

Bolt

Belt Tightening Screw

1шт.

5

DH400535

Bracket

SUB FOR FFSB110989

2шт.

9

DH400518

Receiver-Dryer

USE WITH FF200866, SUB FOR FFSB110327

1шт.

10

DH300123

Bracket

SUB FOR FFSB110328

1шт.

11

DH400537

V-Belt

USE WITH FF200866, SUB FOR FFSB110997

1шт.

15

24M7053

Washer

17 X 30 X 3 mm USE WITH FF 200866, SUB FOR FFSB107399

2шт.

16

19M8713

Screw

M6 X 45 SUB FOR FFSB110136

1шт.

17

21M7271

Screw

M5 X 16 SUB FOR FFSB108268

6шт.

18

19M8008

Cap Screw

M8 X 35 SUB FOR FFSB110435

4шт.

19

12M7066

Lock Washer

10 mm USE WITH FF200866, SUB FOR FFSB107961 OR FFSB107409

6шт.

20

12M7006

Lock Washer

6 mm USE WITH FF200866, SUB FOR FFSB107439

1шт.

21

24M7054

Washer

6.400 X 12 X 1.600 mm USE WIT H FF200866, SUB FOR FFSB107438

2шт.

22

14M7303

Flange Nut

M6 USE WITH FF200866, SUB FOR FFSB108288

1шт.

23

12M7056

Lock Washer

8 mm USE WITH FF200866, SUB FOR FFSB108029 AND 12M7065

4шт.

24

Pressure Switch

AT322233 NLA

1шт.

DH400736

Pressure Switch

SUB FOR FFSB110572

1шт.

25

DH400536

Shim Kit

SUB FOR FFSB111325

2шт.

26

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR FFSB107142

2шт.
