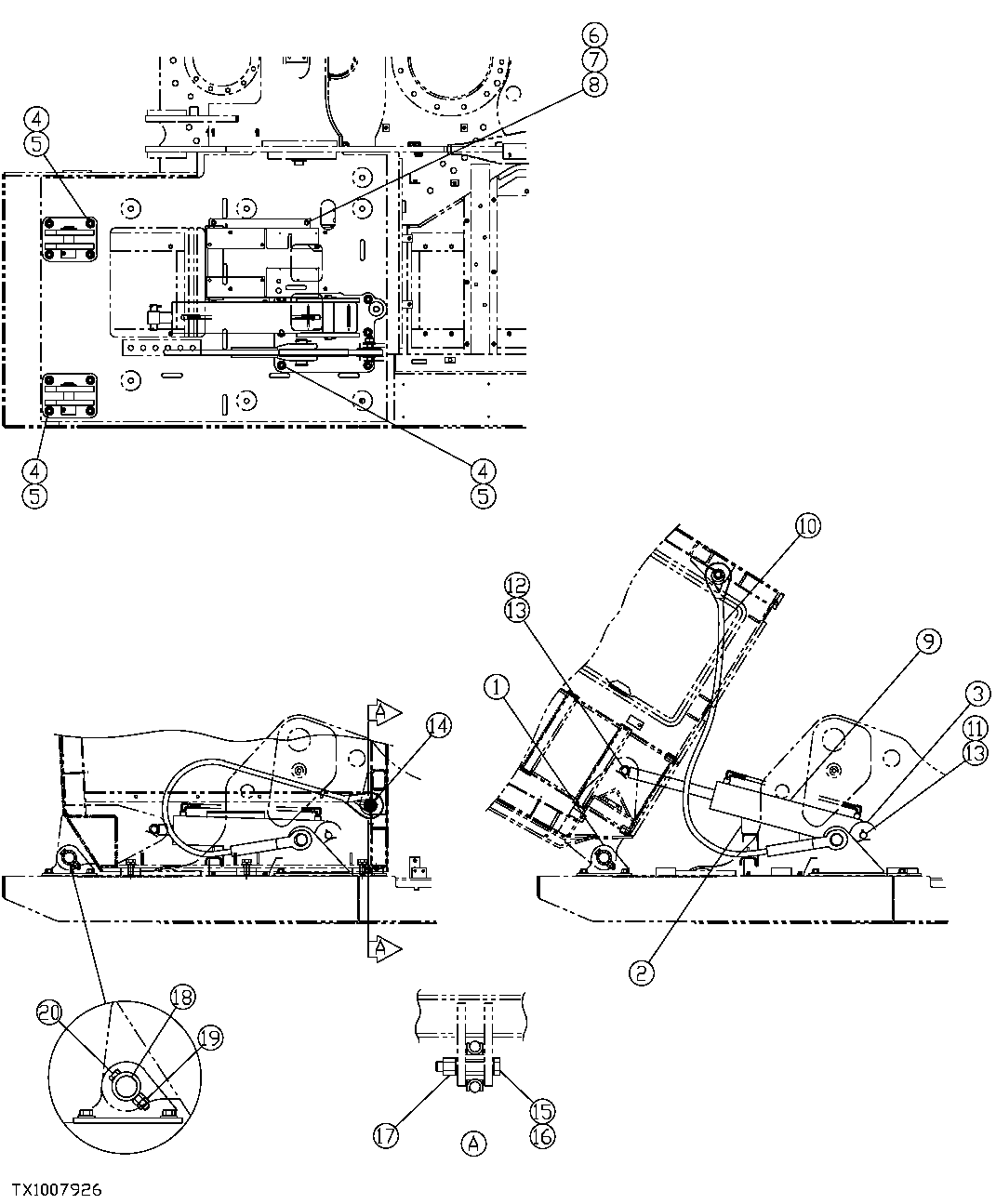

Запчасти John Deere 554 310 - CAB TILT BRACKETS AND CYLINDER 1810 OPERATOR ENCLOSURE

1

FFSB112716

Bracket

RH

1шт.

FFSB113228

Bracket

LH

1шт.

2

FFSB112965

Bracket

1шт.

3

FFSB112720

Bracket

1шт.

4

19M8224

Cap Screw

M20 X 60 (SUB FOR FFSB110790)

28шт.

5

J222020

Washer

(SUB FOR FFSB110791)

28шт.

6

19M7382

Cap Screw

M10 X 40 (SUB FOR FFSB109189)

4шт.

7

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

4шт.

8

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

4шт.

9

FFSB102281

Cylinder

1шт.

10

FFSB104368

Cable

1шт.

11

FFSB104371

Pin Fastener

1шт.

12

FFSB104370

Pin Fastener

1шт.

13

11H244

Cotter Pin

3/16" X 2-1/2" (SUB FOR FFSB108869)

4шт.

14

FFSB104369

Spacer

1шт.

15

19M7937

Cap Screw

M24 X 140 (SUB FOR FFSB108863)

1шт.

16

FFSB108805

Washer

2шт.

17

14M7413

Lock Nut

M24 (SUB FOR FFSB108864)

1шт.

18

FFSB110123

Pin Fastener

10шт.

19

14M7276

Nut

M16 (SUB FOR FFSB108865)

10шт.

20

19M7941

Cap Screw

M16 X 120 (SUB FOR FFSB103443)

10шт.
