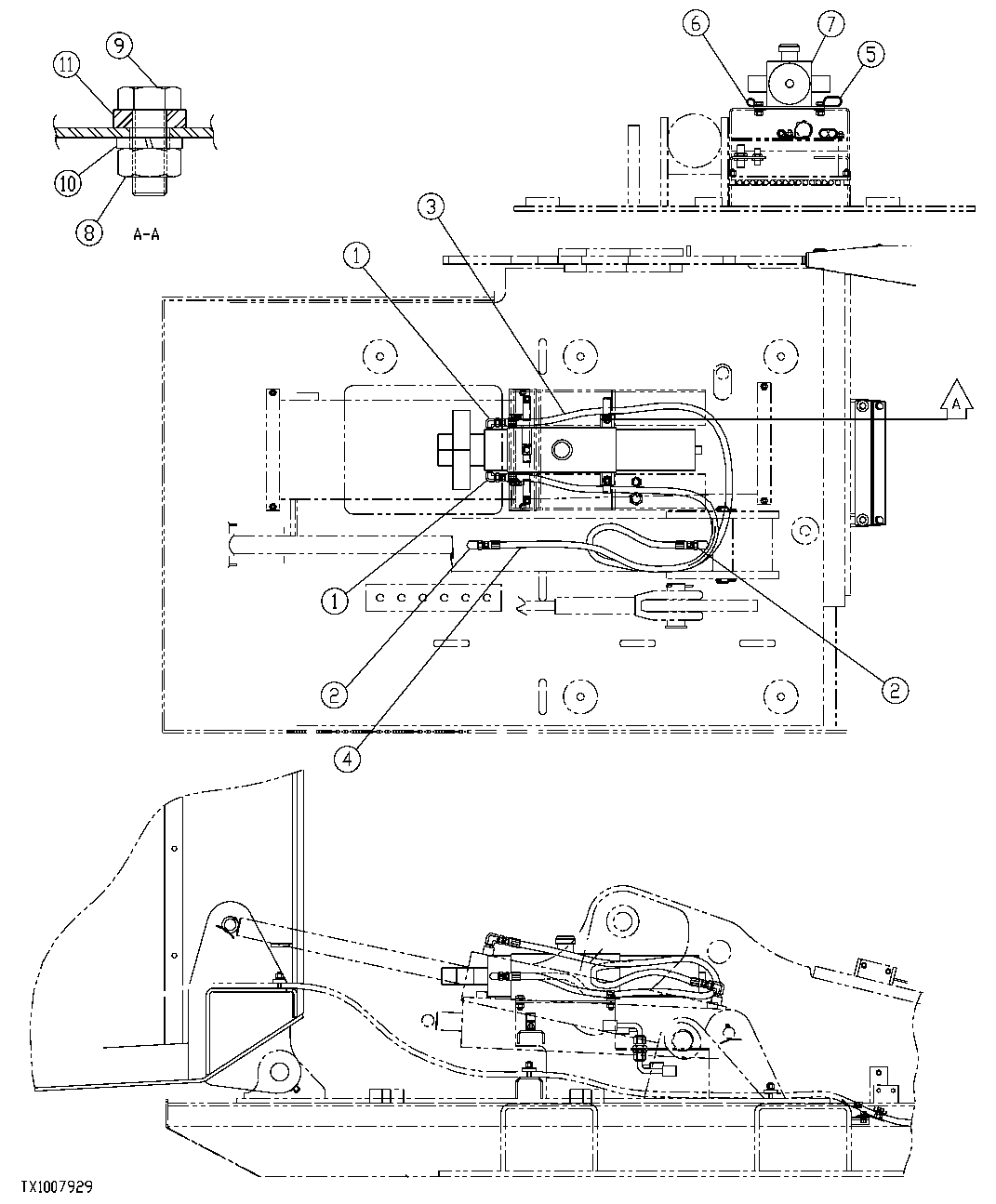

Запчасти John Deere 554 307 - CAB HYDRAULIC TILT CYLINDER HOSES 1810 OPERATOR ENCLOSURE

1

X6CLO-S

Adapter Fitting

(SUB FOR FFSB107324)

2шт.

2

X6-8CLO-S

Adapter Fitting

(SUB FOR FFSB103262)

2шт.

3

FFSB102288

Hydraulic Hose

(CUT TO LENGTH) 2169MM

1шт.

4

FFSB102289

Hydraulic Hose

(CUT TO LENGTH) 1762MM

1шт.

5

FFSB102828

Clip

1шт.

6

F053301

Holder

( FFSB102835 NLA) ( FFSB102835 NLA)

1шт.

7

FFSB104999

Power Supply

1шт.

8

14M7274

Nut

M10 (SUB FOR FFSB107411)

4шт.

9

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB107141)

4шт.

10

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

4шт.

11

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

4шт.
