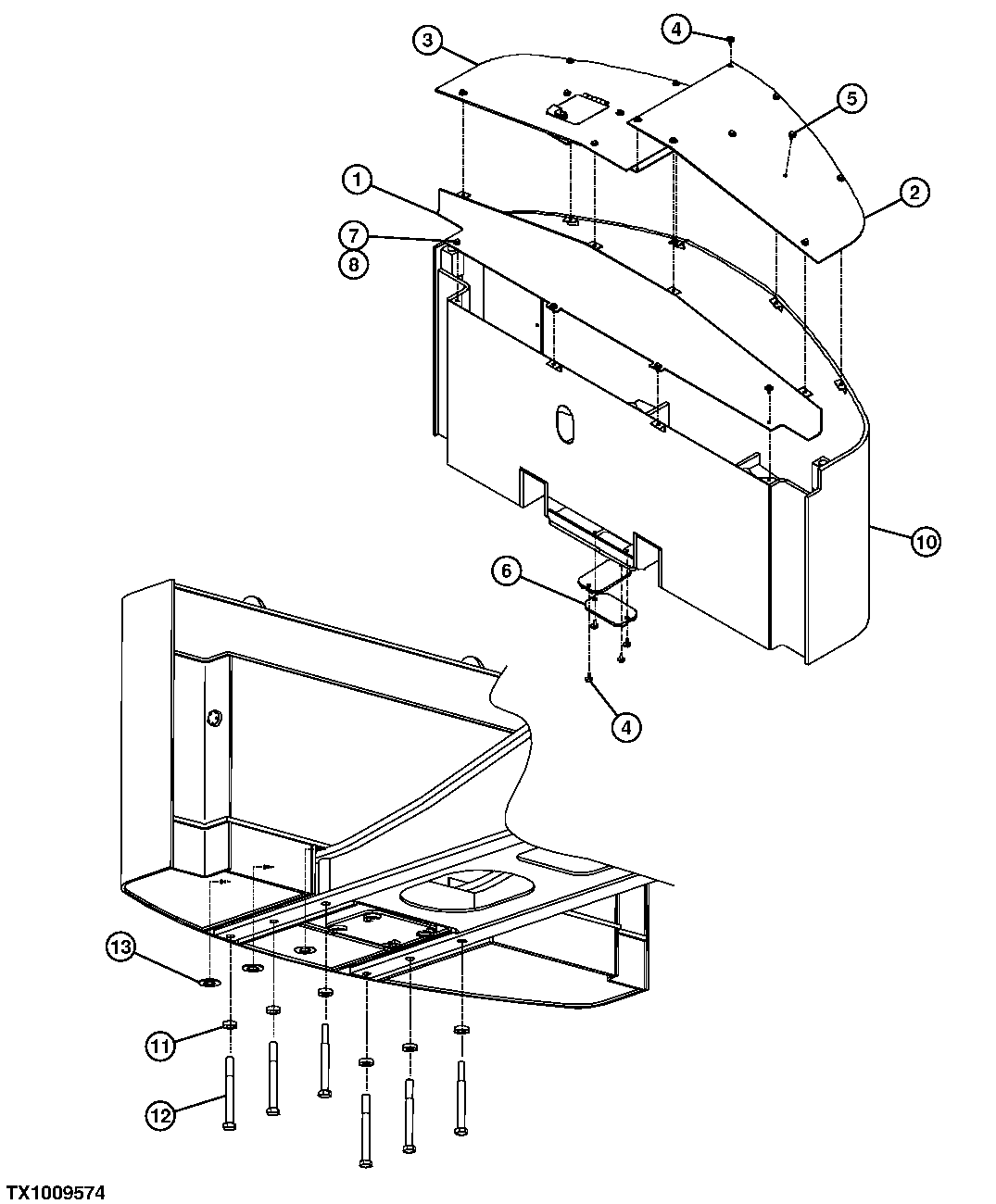

Запчасти John Deere 554 298 - COUNTERWEIGHT AND COVERS FOR FUEL TANK (SN 200066- ) 1749 CHASSIS WEIGHTS

1

FFSB113167

Cover

1шт.

2

FFSB113165

Cover

1шт.

3

FFSB113119

Cover

1шт.

4

19M7550

Cap Screw

M10 X 35 (SUB FOR J031035)

17шт.

12M7066

Lock Washer

10 mm

17шт.

24M7346

Washer

11 X 20 X 2 mm

17шт.

5

19M7402

Cap Screw

M10 X 25 (SUB FOR J021025)

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

6

FFSB111387

Cover

2шт.

7

H148835

Bolt

M10 X 30

1шт.

8

24M7136

Washer

10.500 X 27 X 2 mm (SUB FOR FFSB107485)

1шт.

10

FFSB113118

Counterweight

(SUB FOR FFSB102999)

1шт.

11

4174859P

Washer

31 X 60 X 16 MM (SUB FOR FFSB109478 OR TH103498)

6шт.

12

J833025

Bolt

M30 X 300 (SUB FOR J823025)

6шт.

13

24H1532

Washer

1-33/64" X 3" X 0.075"

10шт.
