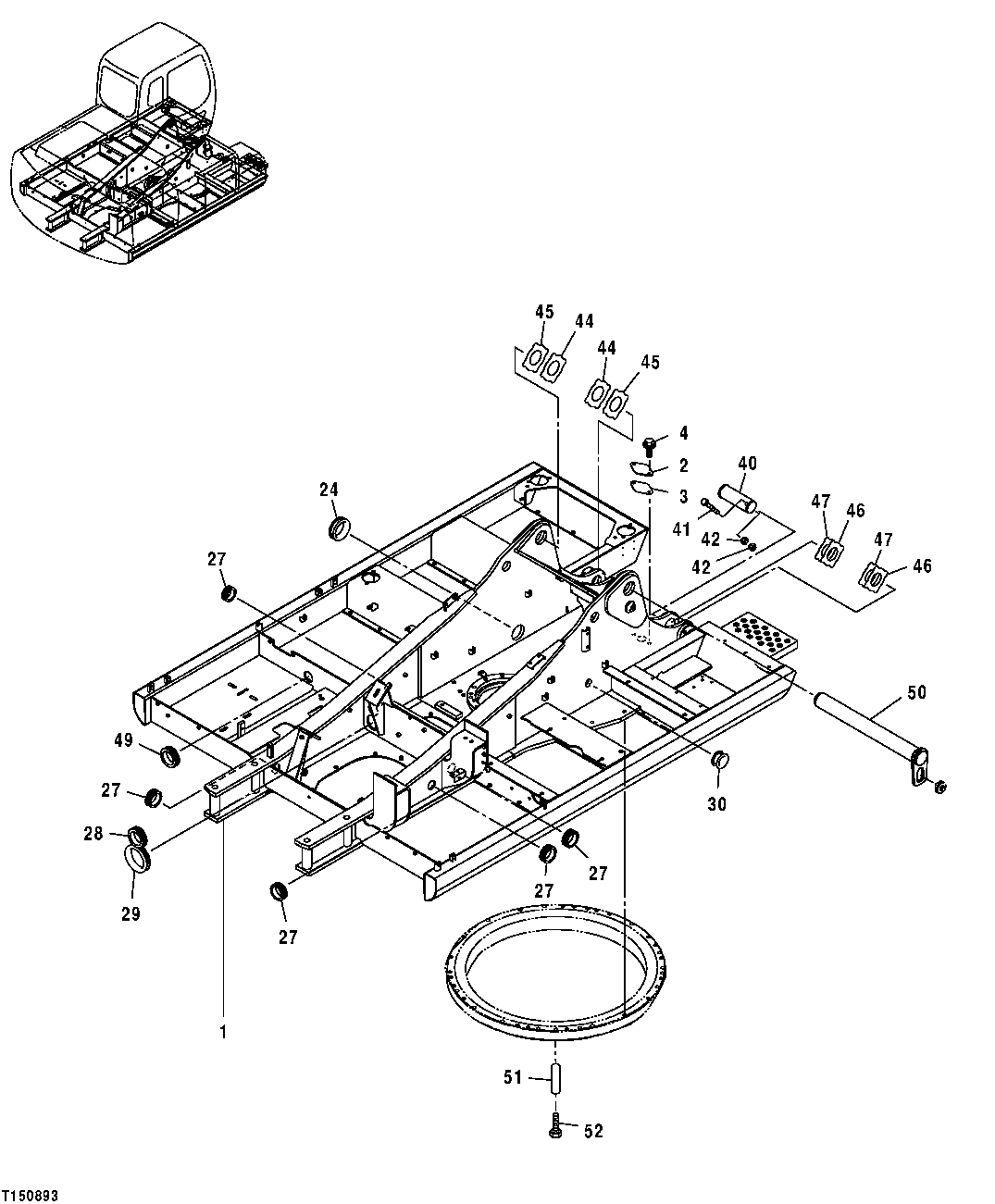

Запчасти John Deere 554 292 - MAIN FRAME, BOOM PIN, AND BOOM CYLINDER PINS 1740 FRAME INSTALLATION

1

DH500054

Main Frame

DH500054 NLA

1шт.

2

4255799

Cover

SUB FOR AT154929

1шт.

3

4161735

Gasket

SUB FOR AT130379

1шт.

4

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

19M7402

Cap Screw

M10 X 25

2шт.

24

4191977

Grommet

SUB FOR TH109399

1шт.

27

4201749

Grommet

SUB FOR TH108205

5шт.

28

4208279

Grommet

SUB FOR AT131854

1шт.

29

4201986

Grommet

SUB FOR AT217099, 4345810

3шт.

30

4257181

Grommet

SUB FOR AT155274

1шт.

40

AT318060

Pin Fastener

SUB FOR 3088573, TH3088573

2шт.

41

4435129

Pin Fastener

SUB FOR TH4435129

2шт.

42

14M7276

Nut

M16

4шт.

44

4470743

Thrust Washer

(SUB FOR 4444284 OR FFSB111690)(1.0)

2шт.

45

4444285

Thrust Washer

(SUB FOR TH4444285 OR FFSB111691)(2.0)

2шт.

46

4444286

Thrust Washer

(SUB FOR TH4444286)(1.0)

4шт.

47

4444287

Thrust Washer

(SUB FOR TH4444287)(2.0)

4шт.

49

4255567

Bushing

SUB FOR AT155271, 4255530

2шт.

50

Pin Fastener

(SEE FOLLOWING PAGE FOR DETAIL)

1шт.

51

DH400500

Spacer

SUB FOR FFSB110981

32шт.

52

DH401110

Bolt

M20 X 2.50 X 150 (SUB FOR FFSB115344 ( 19M7921 NLA))

32шт.
