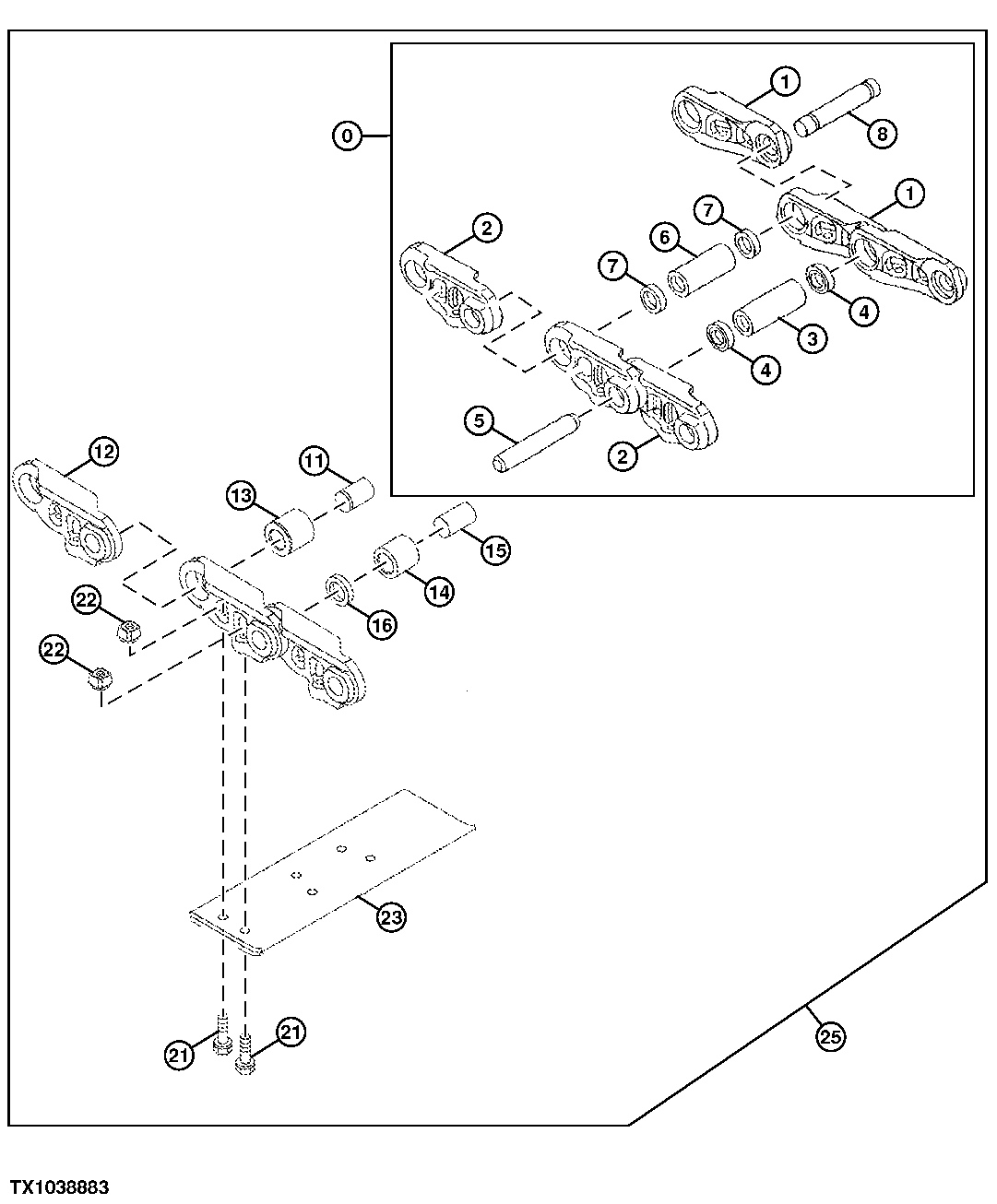

Запчасти John Deere 554 9 - TRI-TRACK TRACK CHAIN (LEFT SIDE) (SN 200514- ) 0130 TRACK SYSTEMS

0

FFSB111198

Track Chain W/O Shoes

1шт.

1

AT219480

Strutted LINK-RH

NLA, SUB 0005251R, SUB FOR FFSB113381, RH

49шт.

0005251R

Track Link

RH

49шт.

2

AT219481

Strutted LINK-LH

NLA, SUB 0005252R, SUB FOR FFSB113382, LH

49шт.

0005252R

Track Link

RH

49шт.

3

AT186162

Bushing

(SUB FOR FFSB113383)

48шт.

4

AT186161

Seal

(SUB FOR FFSB113384)

98шт.

5

AT180028

Pin Fastener

(SUB FOR FFSB113385)

48шт.

6

AT219468

Bushing

(SUB FOR FFSB113386)

1шт.

7

AT219471

Spacer

(SUB FOR FFSB113387)

2шт.

8

AT180030

Pin Fastener

(SUB FOR FFSB113388)

1шт.

11

FFSB115603

Track Pin

48шт.

12

AT219481

Strutted LINK-LH

(SUB FOR FFSB113382)

49шт.

13

FFSB115604

Track Bushing

48шт.

14

FFSB115612

Master Track Bushing

1шт.

15

FFSB115613

Master Track Pin

1шт.

16

AT219471

Spacer

(SUB FOR FFSB113387)

1шт.

21

FFSB115600

Bolt

Use With 700 mm Shoes

294шт.

T142594

Track Bolt

M20 X 62 Use With 800 mm Shoes (SUB FOR FFSB111195)

294шт.

22

T139615

Nut

M20 (SUB FOR FFSB111196)

294шт.

23

FFSB115606

Double Bar Shoe

700 MM

49шт.

FFSB115611

Triple Bar Shoe

800 MM

49шт.

25

FFSB115596

Track Assembly With Shoes

Use With 700 mm Shoes

1шт.

FFSB115598

Track Assembly With Shoes

Use With 800 mm Shoes

1шт.
