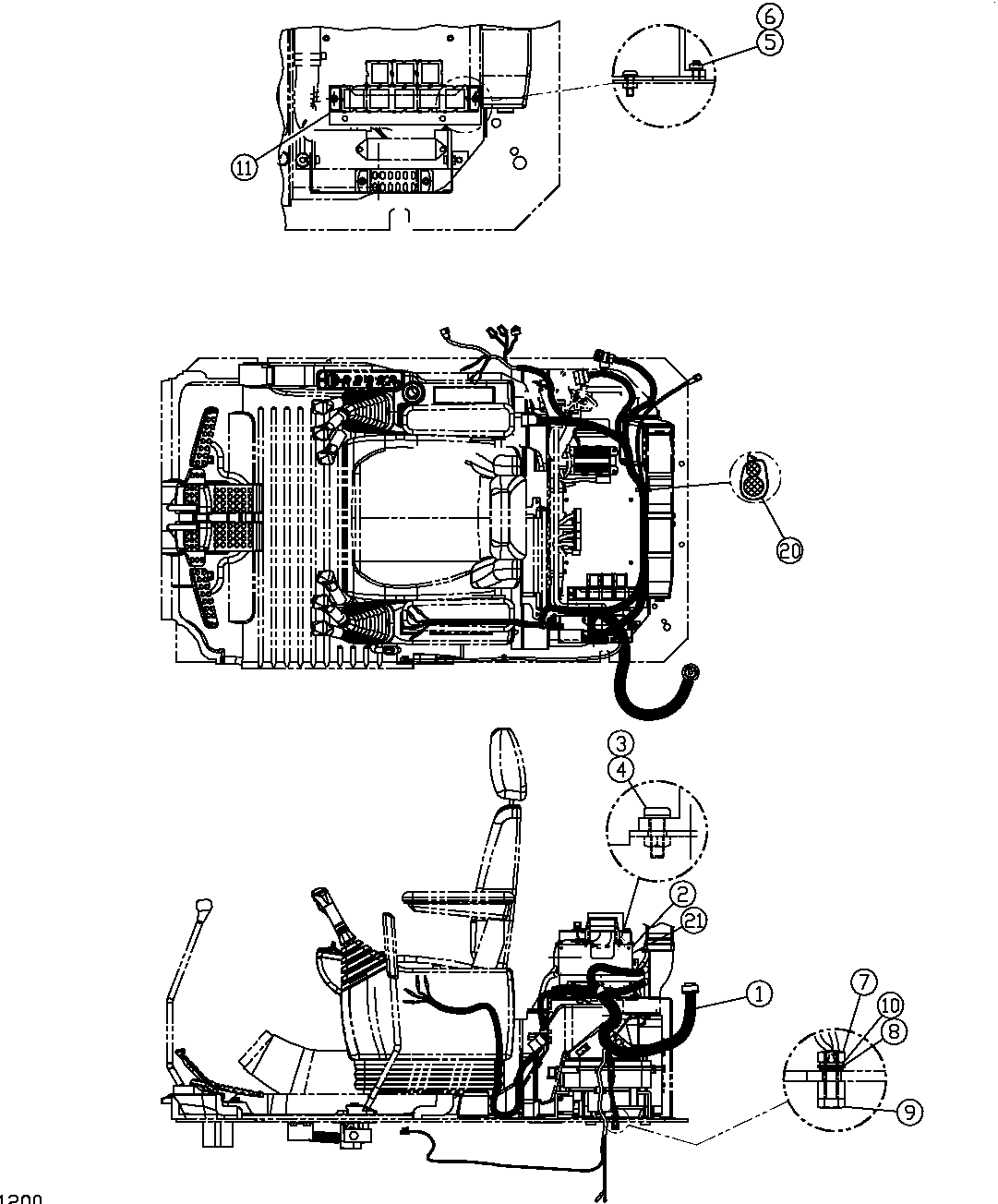

Запчасти John Deere 554 275 - SIDE ENTRY CAB WIRING HARNESS FOR HEELER PLUMBING(S.N. 200011-) 1674B FORESTRY CAB WIRE HARNESS AND SWITCHES

1

FFSB109948

Wiring Harness

1шт.

2

19M8425

Cap Screw

M6 X 16 (SUB FOR FFSB107905)

4шт.

3

24M7348

Washer

5.500 X 10 X 1 mm (SUB FOR FFSB107713)

2шт.

4

21M7271

Screw

M5 X 16 (SUB FOR FFSB108268)

2шт.

5

14M7297

Nut

M5 (SUB FOR FFSB105284)

2шт.

6

24M7348

Washer

5.500 X 10 X 1 mm (SUB FOR FFSB107713)

2шт.

7

14M7274

Nut

M10 (SUB FOR FFSB107411)

1шт.

8

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

1шт.

9

19M7382

Cap Screw

M10 X 40 (SUB FOR FFSB109189)

1шт.

10

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

1шт.

11

FFSB110287

Elec. Connector Terminal

1шт.

20

H77698

Tie Band

(SUB FOR FFSB108110)

1шт.

21

FFSB110207

Fuse Box

1шт.
