Запчасти John Deere 554 271 - SIDE ENTRY CAB ELECTRICAL COMPONENTS 1674B FORESTRY CAB WIRE HARNESS AND SWITCHES

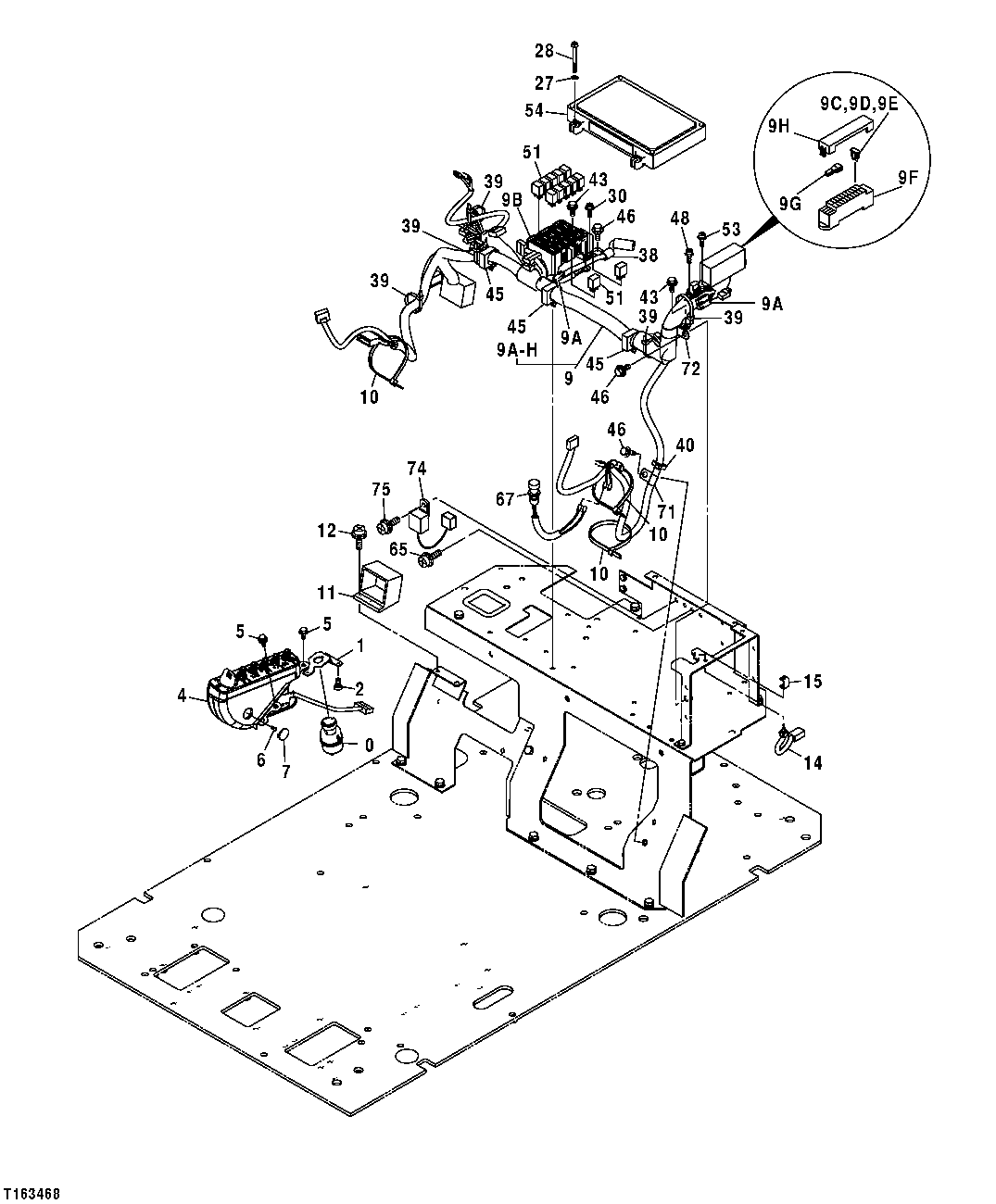

Схема запчастей John Deere 554 - 271 - SIDE ENTRY CAB ELECTRICAL COMPONENTS 1674B FORESTRY CAB WIRE HARNESS AND SWITCHES

Артикул

Название

Примечание

Количество

0

4477373

Switch

(SUB FOR TH4469337)

1шт.

AT194969

Key

(SUB FOR AT147803)

1шт.

1

3087882

Bracket

(SUB FOR TH3087882)

1шт.

2

4361800

Screw

(SUB FOR AT214011)

3шт.

4

4454518

Control Console

(SUB FOR TH4454518)

1шт.

4482656

Dial Knob

Speed

1шт.

4483208

Dial Knob

4шт.

4483209

Dial Knob

1шт.

4370152

Lamp

2шт.

4483206

Switch

Harness

1шт.

5

J010814

Screw With Washer

(SUB FOR AT132457)

3шт.

6

4381572

Screw

(SUB FOR TH4381572)

1шт.

7

4426354

Cap

(SUB FOR TH4426354)

1шт.

9

4610466

Wiring Harness

(SUB FOR TH4468558 OR 4468558)

1шт.

9A

4456778

Diode

(SUB FOR TH4456778)

6шт.

9B

4427429

Circuit Box

(SUB FOR TH4427429)

1шт.

9C

57M7688

Fuse

8шт.

9D

57M7689

Fuse

8шт.

9E

57M7691

Fuse

4шт.

9F

4456735

Fuse Holder

(SUB FOR TH4456735)

1шт.

9G

Special Service Tool

( TH4436737 NLA)

1шт.

9H

4468530

Cover

(SUB FOR TH4468530)

1шт.

10

H77698

Tie Band

3шт.

11

4431090

Electrical Connector Assy

(SUB FOR TH4431090)

1шт.

12

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

14

4359384

Switch

(SUB FOR AT213984)

1шт.

15

4367375

Bracket

(SUB FOR AT214036)

1шт.

27

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

28

21M7466

Screw

M6 X 30 (SUB FOR M430630)

2шт.

30

Screw With Washer

( J460620 NLA) ( J460620 NLA) (SUB FOR AT200012)

4шт.

21M7267

Screw

M6 X 20

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

38

R73384

Clamp

(SUB FOR TH108597, 4190253)

1шт.

39

H77698

Tie Band

5шт.

40

H77698

Tie Band

1шт.

43

19M7932

Cap Screw

M8 X 16

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

45

4449019

Clip

(SUB FOR TH4449019)

3шт.

46

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.

48

Screw

(SUB FOR AT156974)( J460310 NLA)

2шт.

21M7394

Screw

M3 X 10

2шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

2шт.

12H233

Lock Washer

1/8"

2шт.

51

4436534

Relay

(SUB FOR TH4436534)

11шт.

53

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

54

4487162

Vehicle Controller

(SUB FOR 4449505)

1шт.

9226761

Vehicle Controller

1шт.

65

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

67

4384758

Switch

(TRAVEL ALARM SWITCH) Travel A larm Switch (SUB FOR AT215573)

1шт.

71

4190275

Clamp

(SUB FOR TH108598)

1шт.

72

AT121321

Hose Clamp

1шт.

74

AT195741

Relay

(WITH RELAY, ALTERNATOR)

1шт.

75

Cap Screw

( THM460616 NLA)

1шт.

Выбрано товаров: 63
