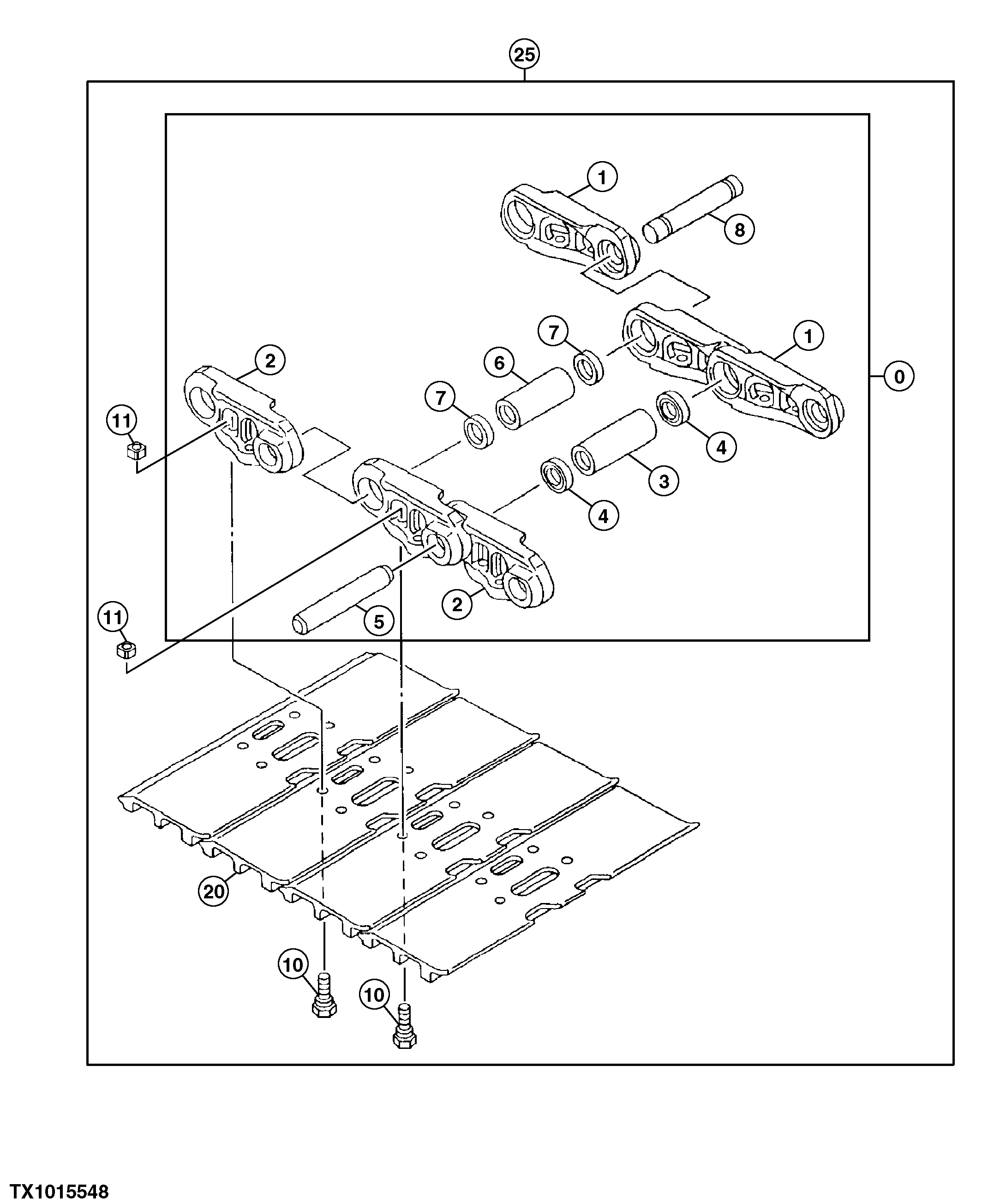

Запчасти John Deere 554 8 - Heavy Duty Track Chain Assembly Replacement 0130 TRACK SYSTEMS

0

AT407019

Track Chain W/O Shoes

1шт.

1

FF200447

Link

RH

46шт.

2

FF200448

Link

LH

46шт.

3

FF101717

Bushing

48шт.

4

FFSB112367

Seal

96шт.

5

FF101719

Pin

48шт.

6

FF101720

Master Track Bushing

1шт.

7

FFSB112370

Spacer

Master Track Seal

2шт.

8

FF101722

Master Track Pin

1шт.

10

T210807

Track Bolt

196шт.

11

T210814

Nut

196шт.

20

FF101712

Double Bar Shoe

700 mm

46шт.

FF101724

Triple Bar Shoe

800 mm

46шт.

25

Track Assembly With Shoes

700 mm, FF101726 NLA

2шт.

Track Assembly With Shoes

800 mm, FF101727 NLA

2шт.
