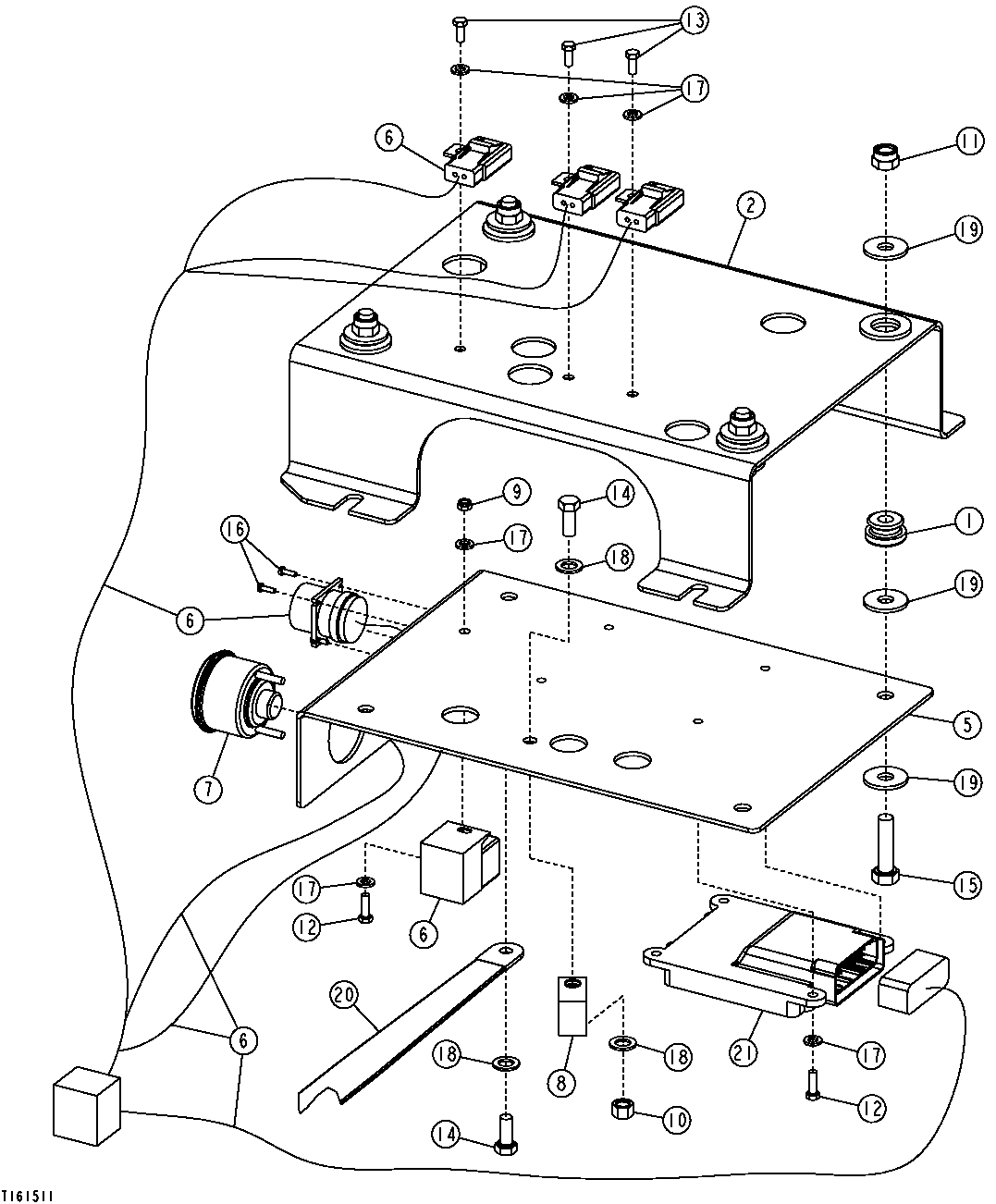

Запчасти John Deere 554 249 - ENGINE CONTROL UNIT ASSEMBLY (VEHICLE S.N. 200062- ) 1674 WIRING HARNESS AND SWITCHES

1

AT116162

Isolator

4шт.

2

AT197101

Cover

1шт.

5

AT199340

Angle

1шт.

6

AT199497

Wiring Harness

1шт.

7

RE68155

Gauge

1шт.

8

T78787

Clamp

1шт.

9

14M7265

Lock Nut

M5

1шт.

10

14M7327

Lock Nut

M8

1шт.

11

14M7517

Lock Nut

M10

4шт.

12

19M7372

Cap Screw

M5 X 16

5шт.

13

19M7640

Cap Screw

M5 X 12

3шт.

14

19M7881

Screw

M8 X 20

2шт.

15

19M8637

Cap Screw

M10 X 40

4шт.

16

21M7394

Screw

M3 X 10

4шт.

17

24M7088

Washer

6.600 X 12 X 1.600 mm

9шт.

18

24M7096

Washer

10.500 X 18 X 1.600 mm

3шт.

19

24M7296

Washer

10.500 X 30 X 2.500 mm

12шт.

20

AT180705

Ground Cable

1шт.

21

RE532629

Engine Controller

SUB FOR RE518177, RE519775 AND RE522529

1шт.

57M9171

Electrical Connector Assy

1шт.

R104701

Elec. Connector Terminal

1шт.
