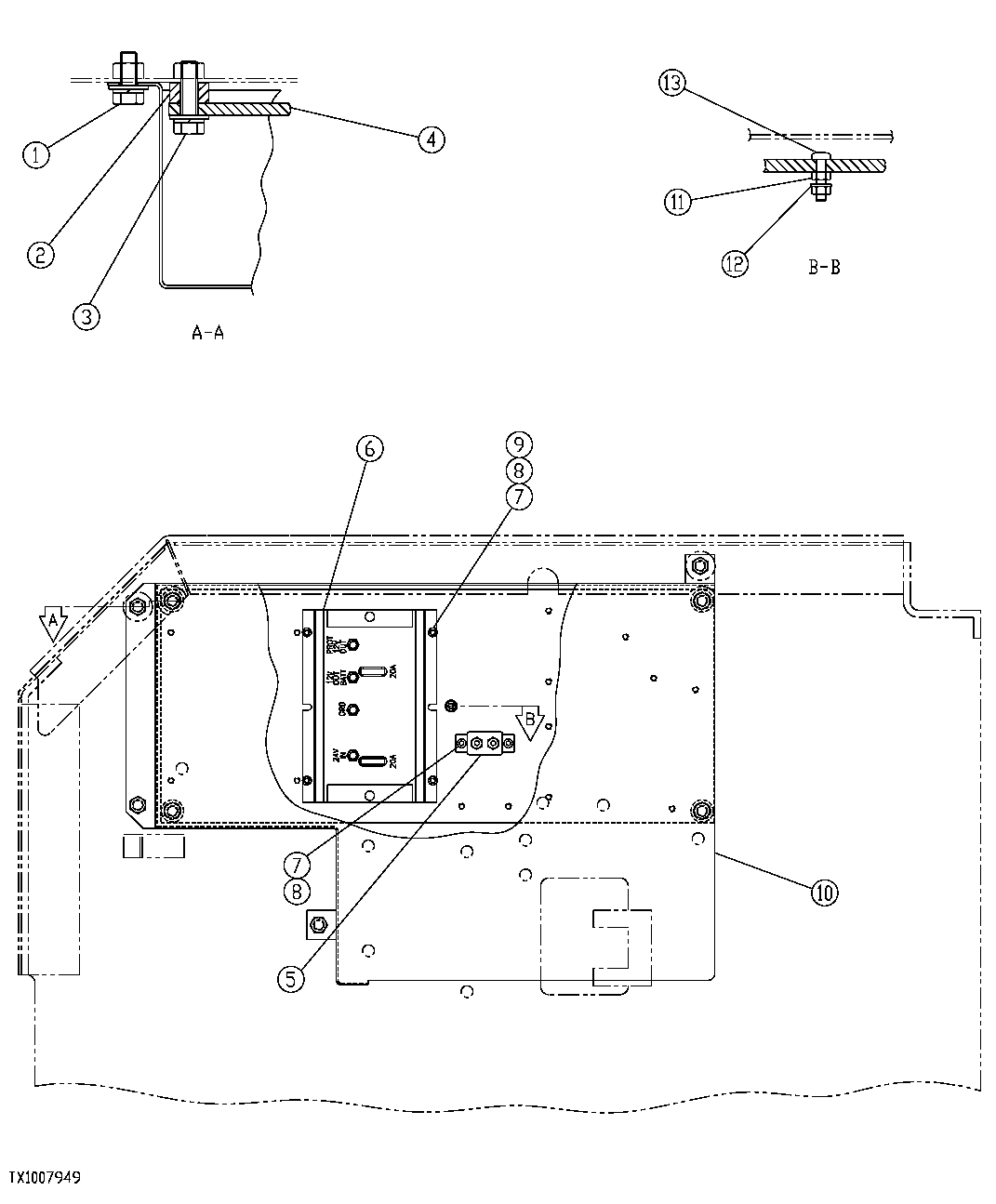

Запчасти John Deere 554 244 - REAR PANEL POWER CONVERTER (STANDARD) 1674 WIRING HARNESS AND SWITCHES

1

19M7932

Cap Screw

M8 X 16 (SUB FOR FFSB10 9185 ) (SUB FOR 19M7162)

4шт.

12M7065

Lock Washer

8 mm (SUB FOR FFSB109185)

4шт.

2

DH400528

Spacer

(SUB FOR FFSB102193)

4шт.

3

19M7288

Cap Screw

M8 X 30 (SUB FOR FFSB107866)

4шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB107866)

4шт.

24M7296

Washer

10.500 X 30 X 2.500 mm (SUB FOR FFSB107866)

4шт.

4

DH100035

Plate

(SUB FOR FFSB110111)

1шт.

5

DH400529

Circuit Breaker

(SUB FOR FFSB103166)

1шт.

6

AT142288

Converter

(SUB FOR FFSB108503)

1шт.

14H786

Nut

1/4" Not Illustrated

2шт.

7

12M7112

Lock Washer

5.300 mm (SUB FOR FFSB110194)

4шт.

8

FFSB110195

Bolt

6шт.

9

24M7348

Washer

5.500 X 10 X 1 mm (SUB FOR FFSB107713)

4шт.

10

DH200038

Plate

(SUB FOR FFSB110162)

1шт.

11

14M7297

Nut

M5 (SUB FOR FFSB105284)

2шт.

12

12M7064

Lock Washer

5 mm (SUB FOR FFSB108156)

1шт.

13

21M7207

Screw

M5 X 20 (SUB FOR FFSB106806)

1шт.
