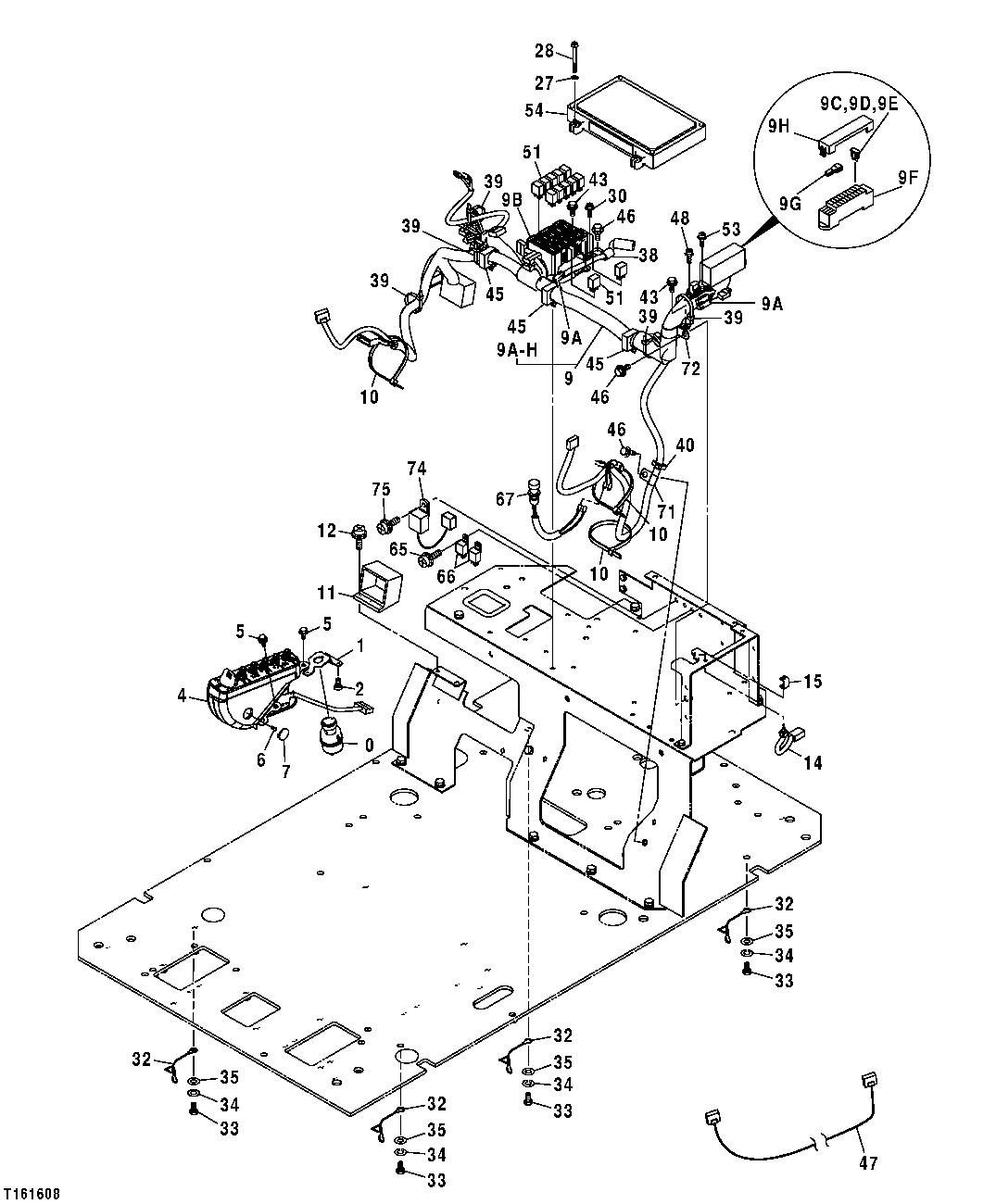

Запчасти John Deere 554 239 - CAB WIRING HARNESS, IGNITION SWITCH, AND SWITCH BOX 1674 WIRING HARNESS AND SWITCHES

30

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

4шт.

21M7267

Screw

M6 X 20

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

32

4281293

Ground Cable

(SUB FOR AT154961)

4шт.

33

19M8324

Cap Screw

M10 X 16

4шт.

34

12M7066

Lock Washer

10 mm

4шт.

35

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

38

R73384

Clamp

(SUB FOR TH108597, 4190253)

1шт.

39

H77698

Tie Band

5шт.

40

H77698

Tie Band

1шт.

43

19M7932

Cap Screw

M8 X 16

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

45

4449019

Clip

(SUB FOR TH4449019)

3шт.

46

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.

47

2048203

Wiring Harness

2.75 m, Extension (SUB FOR TH2048203)

1шт.

2048184

Wiring Harness

4.6 m, Extension (SUB FOR TH2048184)

1шт.

48

Screw

(SUB FOR AT156974)

2шт.

21M7394

Screw

M3 X 10

2шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

2шт.

12H233

Lock Washer

1/8"

2шт.

51

4436534

Relay

(SUB FOR TH4436534)

11шт.

53

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

54

4487330

Vehicle Controller

(SUB FOR 4449504)

1шт.

9226759

Vehicle Controller

1шт.

65

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

66

4414207

Relay

(SUB FOR AT186647)

2шт.

67

4384758

Switch

Travel Alarm Switch (SUB FOR AT215573)

1шт.

71

4190275

Clamp

(SUB FOR TH108598)

1шт.

72

AT121321

Hose Clamp

1шт.

74

AT195741

Relay

1шт.

75

Cap Screw

( THM460616 NLA)

1шт.
