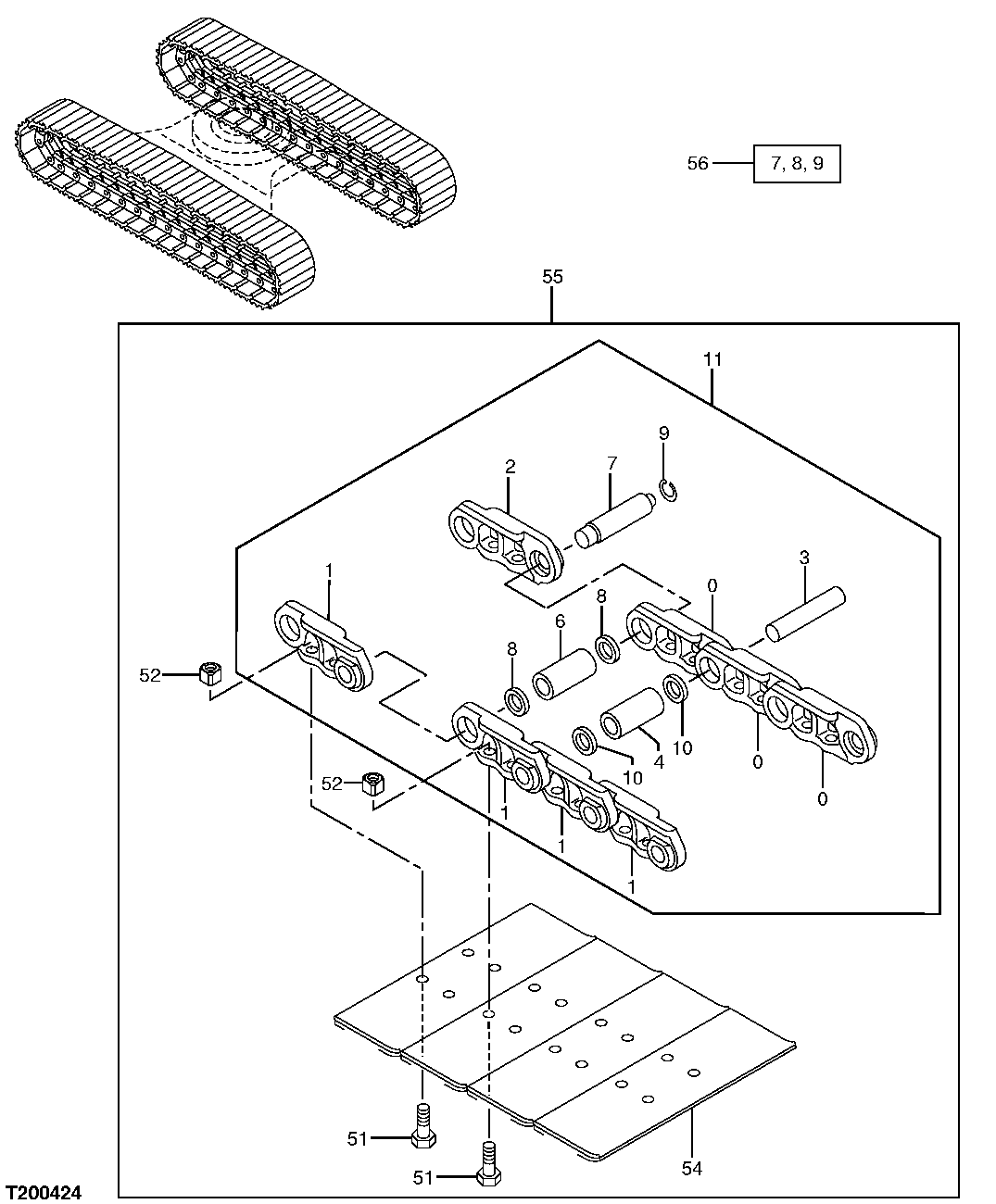

Запчасти John Deere 554 5 - Track Chains, Master Pin With Snap Ring 0130 TRACK SYSTEMS

0

AT180025

Link

(RH)

48шт.

1

AT180027

Link

(LH)

49шт.

2

T209261

Master Track LINK-RH

1шт.

3

AT180028

Pin Fastener

48шт.

4

AT186162

Bushing

48шт.

6

AT219468

Bushing

1шт.

7

T209260

Master Track Pin

1шт.

8

AT219471

Spacer

Master

1шт.

9

T209259

Snap Ring

2шт.

10

AT186161

Seal

96шт.

11

AT311612

Track Chain W/O Shoes

1шт.

51

AT180036

Track Bolt

M18 X 52

196шт.

52

AT180048

Nut

M18

196шт.

54

AT180034

Open Center 3 Bar Shoe

600 mm, Wide

49шт.

AT180035

Open Center 3 Bar Shoe

700 mm, Wide

49шт.

AT219470

Open Center 3 Bar Shoe

800 mm, Wide

49шт.

55

AT311613

Track Assembly With Shoes

(COMPLETE TRACK ASSEMBLY WITH 600MM SHOES)

1шт.

AT311614

Track Assembly With Shoes

(COMPLETE TRACK ASSEMBLY WITH 700MM SHOES)

1шт.

AT311615

Track Assembly With Shoes

(COMPLETE TRACK ASSEMBLY WITH 800MM SHOES)

1шт.

56

AT313621

Chain Kit

(INCLUDES (1) T209260, (1) T209 259 AND (2) AT219471) Master Pin

1шт.
