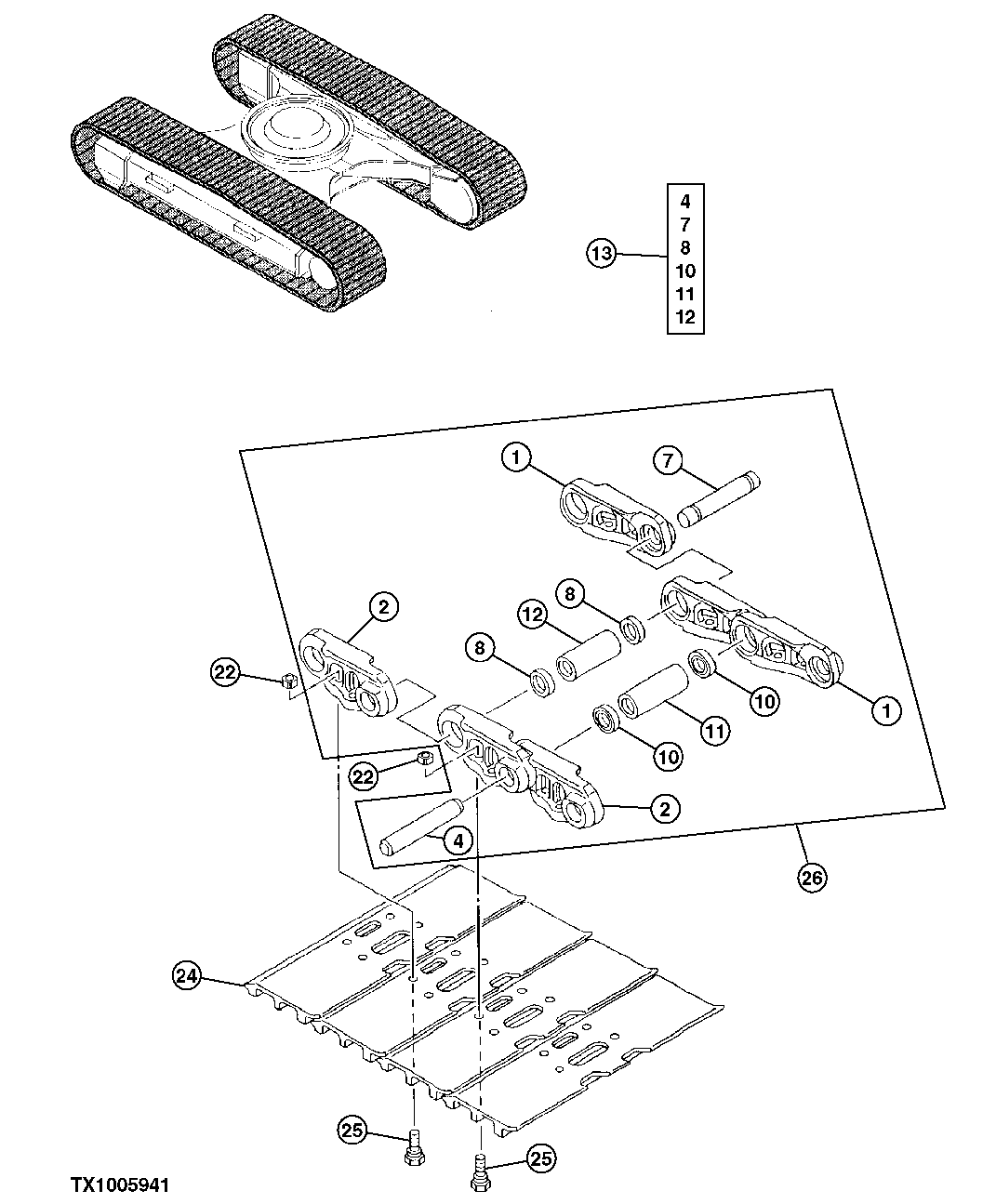

Запчасти John Deere 554 4 - Track Chains, Press in Master 0130 TRACK SYSTEMS

1

AT180025

Link

49шт.

2

AT180027

Link

49шт.

4

AT180030

Pin Fastener

37.720 X 212 mm (1.485" X 8.346") (A LSO ORDER (2) AT219471 AND AT219468)

1шт.

7

AT180028

Pin Fastener

47шт.

8

AT180029

Spacer

Dual Spring Washer

188шт.

AT186161

Seal

M Seal

94шт.

10

Spacer

Master FFSB13386 NLA, ORDER AT219471

2шт.

AT219471

Spacer

Master ALSO ORDER AT180030 AND AT219468

2шт.

11

Bushing

Master ( FFSB113387 NLA) (SUB AT219468)

1шт.

AT219468

Bushing

Master ALSO ORDER (2) AT219471 AND AT180030

1шт.

12

Bushing

AT180032 NLA, SUB AT186162

48шт.

AT186162

Bushing

Use With M Seal ALSO ORDER (2) AT186161

48шт.

13

AT187185

Pin & Bushing Kit

1шт.

22

AT180048

Nut

Each Side Of Unit

196шт.

24

AT180034

Open Center 3 Bar Shoe

600 mm, Each Side Of Unit

49шт.

AT180035

Open Center 3 Bar Shoe

700 mm, Each Side Of Unit

49шт.

AT219470

Open Center 3 Bar Shoe

800 mm, Each Side Of Unit

49шт.

25

AT180036

Track Bolt

Each Side Of Unit

196шт.

26

Track Chain W/O Shoes

( AT219478 NLA)(SUB (2) AT3 11612) One Each Side Of Unit

2шт.
