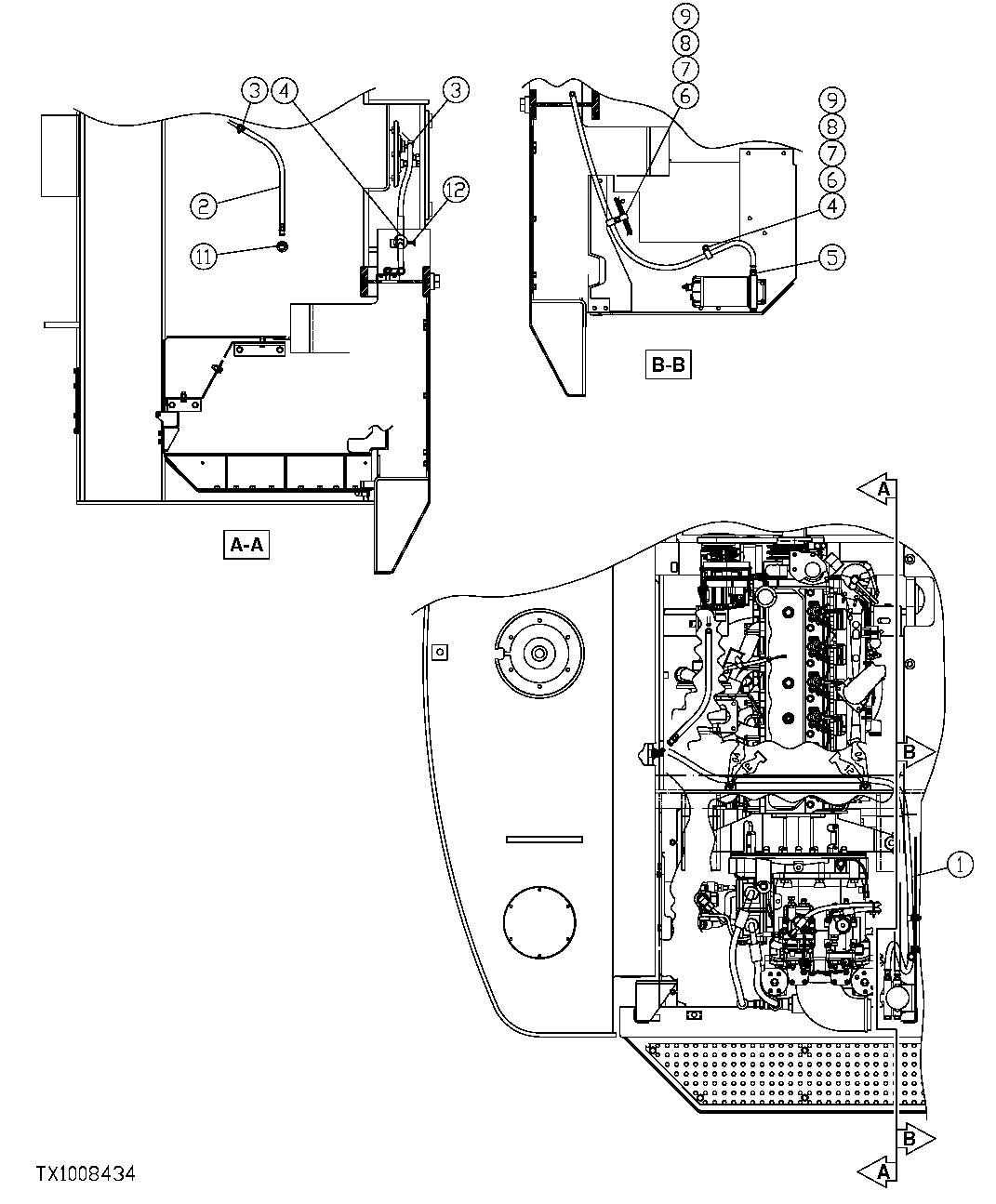

Запчасти John Deere 554 208 - FUEL TANK TO FILTER & INJECTION PUMP TO FUEL TANK HOSES (S.N. -200065) 0563 FUEL LINES AND FITTINGS

1

DH900349

Hydraulic Hose

2600 mm, (SUB FOR FFSB111849 AND FFSB11116 7 ( TY24398 NOT USED FOR THIS APPLICATION))

1шт.

FFSB111699

Sleeve

2500 mm, (SUB FOR FFSB111849 OR FFSB110709)

1шт.

2

TY24398

Bulk Hose

600 mm, (SUB FOR FFSB110704 ( FFSB11 0710 NOT USED FOR THIS APPLICATION))

1шт.

Hose Guard

(SUB FOR FFSB110711 AND FFSB110704 ( FF SB110709 NOT USED FOR THIS APPLICATION))

1шт.

3

TY22464

Clamp

(SUB FOR FFSB103981)

2шт.

4

XCL-14

Hose Clamp

(SUB FOR FFSB104506)

4шт.

5

N202122

Fitting

1шт.

6

19M7167

Cap Screw

M10 X 25

2шт.

7

12M7066

Lock Washer

10 mm

2шт.

8

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

9

14M7274

Nut

M10

2шт.

11

X3103-6-6

Elbow Fitting

1шт.

12

19M8324

Cap Screw

M10 X 16

3шт.
