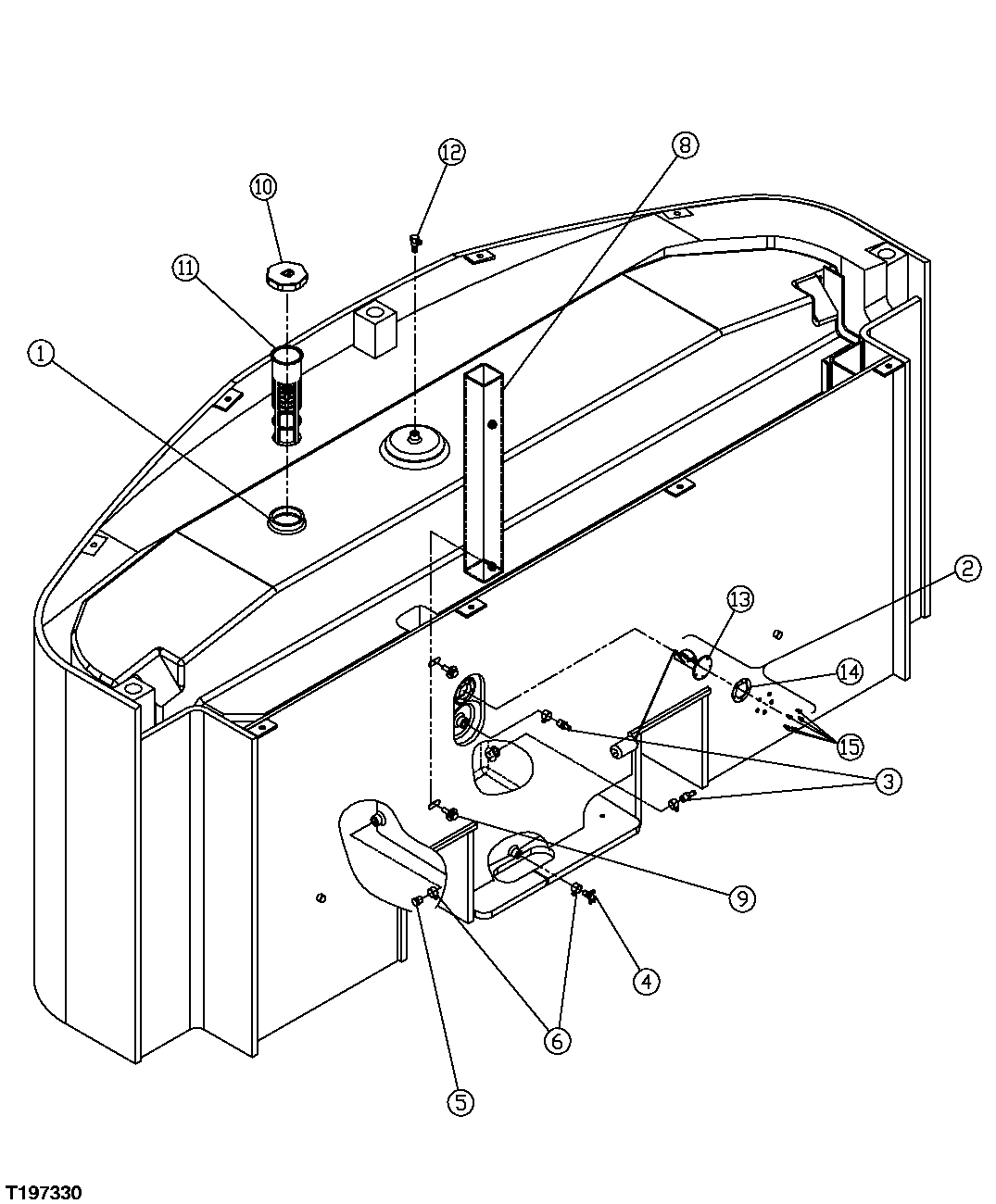

Запчасти John Deere 554 206 - FUEL TANK (SN 200066-200222) 0560 EXTERNAL FUEL SUPPLY SYSTEMS

1

FFSB113476

Fuel Tank

SUB FOR FFSB107793, FFSB111210

1шт.

3

R119990

Adapter Fitting

2шт.

4

AT365267

Pressure Relief Valve

SUB FOR FFSB111681

1шт.

5

XCL-14

Hose Clamp

SUB FOR FFSB104506

1шт.

6

FFSB102829

Clamp

4шт.

8

FFSB112354

Bracket

1шт.

9

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

10

AT179586

Filler Cap

1шт.

11

AH162914

Strainer

1шт.

12

AT157938

Vent

1шт.

13

4660782

Float

SUB FOR 4257128

1шт.

14

T155195

Gasket

1шт.

15

21M7265

Screw

M5 X 12

5шт.

16

FFSB114138

Plate

Need Only If Using Updated Fuel Strain er - Per DTAC Solution Not Illustrated

1шт.

17

FFSB114160

Plate

Need Only If Using Updated Fuel Strain er - Per DTAC Solution Not Illustrated

1шт.

18

FFSB114162

Adapter Fitting

Need Only If Using Updated Fuel Strain er - Per DTAC Solution Not Illustrated

1шт.

19

FFSB114161

Screw

Need Only If Using Updated Fuel Strain er - Per DTAC Solution Not Illustrated

8шт.
