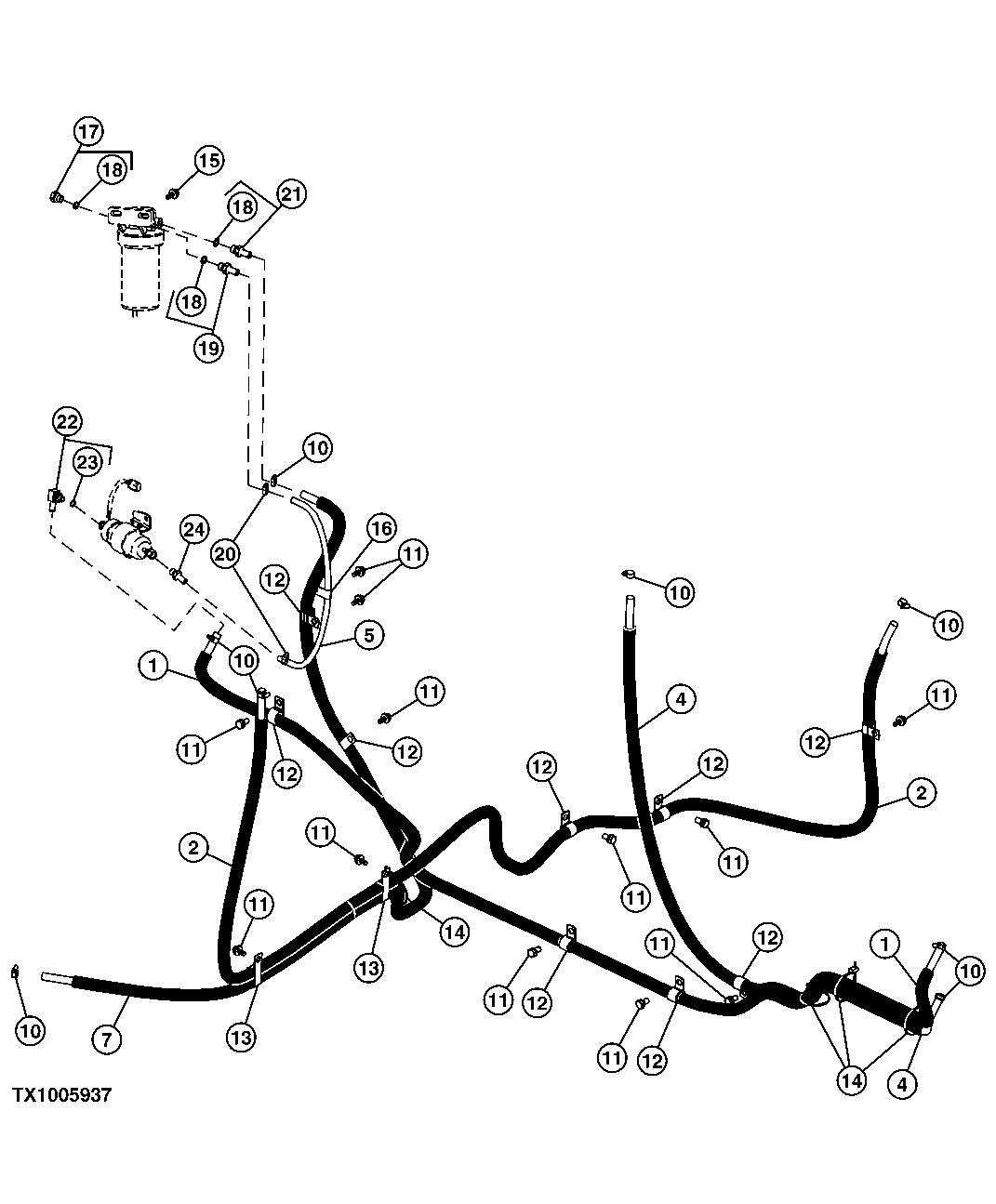

Запчасти John Deere 554 202 - FUEL HOSES AND FITTINGS (SN -200065) 0560 EXTERNAL FUEL SUPPLY SYSTEMS

1

Bulk Hose

(MAKE FROM TY24398 (CTL) 2720MM (1 07.09") (HOSE AND COVER ASSEMBLY))

1шт.

Hose Guard

(MAKE FROM DH400246 (CTL) 2570MM (106.30"))

1шт.

2

Bulk Hose

(MAKE FROM TY24398 (CTL) 3350MM (1 31.89") (HOSE AND COVER ASSEMBLY))

1шт.

Hose Guard

(MAKE FROM DH400246 (CTL) 3200MM (125.98"))

1шт.

4

Bulk Hose

(MAKE FROM TY24398 (CTL) 1800MM (70.87"))

2шт.

5

R515462

Fuel Line

1шт.

7

Bulk Hose

(MAKE FROM TY24398 (CTL) 2500MM (98.43") ALSO ORDER DH400246 BULK MATERIAL (CTL) 2150MM (84.65"))

1шт.

10

TY22464

Clamp

(SUB FOR AR21836)

8шт.

11

19M7938

Cap Screw

M10 X 20

8шт.

12M7066

Lock Washer

10 mm

8шт.

12

T24432

Clamp

8шт.

13

4190266

Clip

(SUB FOR TH108793)

2шт.

14

H77698

Tie Band

4шт.

15

19M7923

Cap Screw

M6 X 12

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

16

4192075

Hose

(SUB FOR AT215520 ) (SUB FOR 4344303)

1шт.

17

RE46686

Fitting

2шт.

18

51M7040

O-Ring

9.300 X 2.200 mm

2шт.

19

AT196589

Adapter Fitting

1шт.

20

TY22462

Clamp

(SUB FOR AR48236)

2шт.

21

RE500576

Fitting

1шт.

22

AT196563

Adapter Fitting

1шт.

23

51M7039

O-Ring

8.100 X 1.600 mm

1шт.

24

RE515341

Adapter Fitting

1шт.
