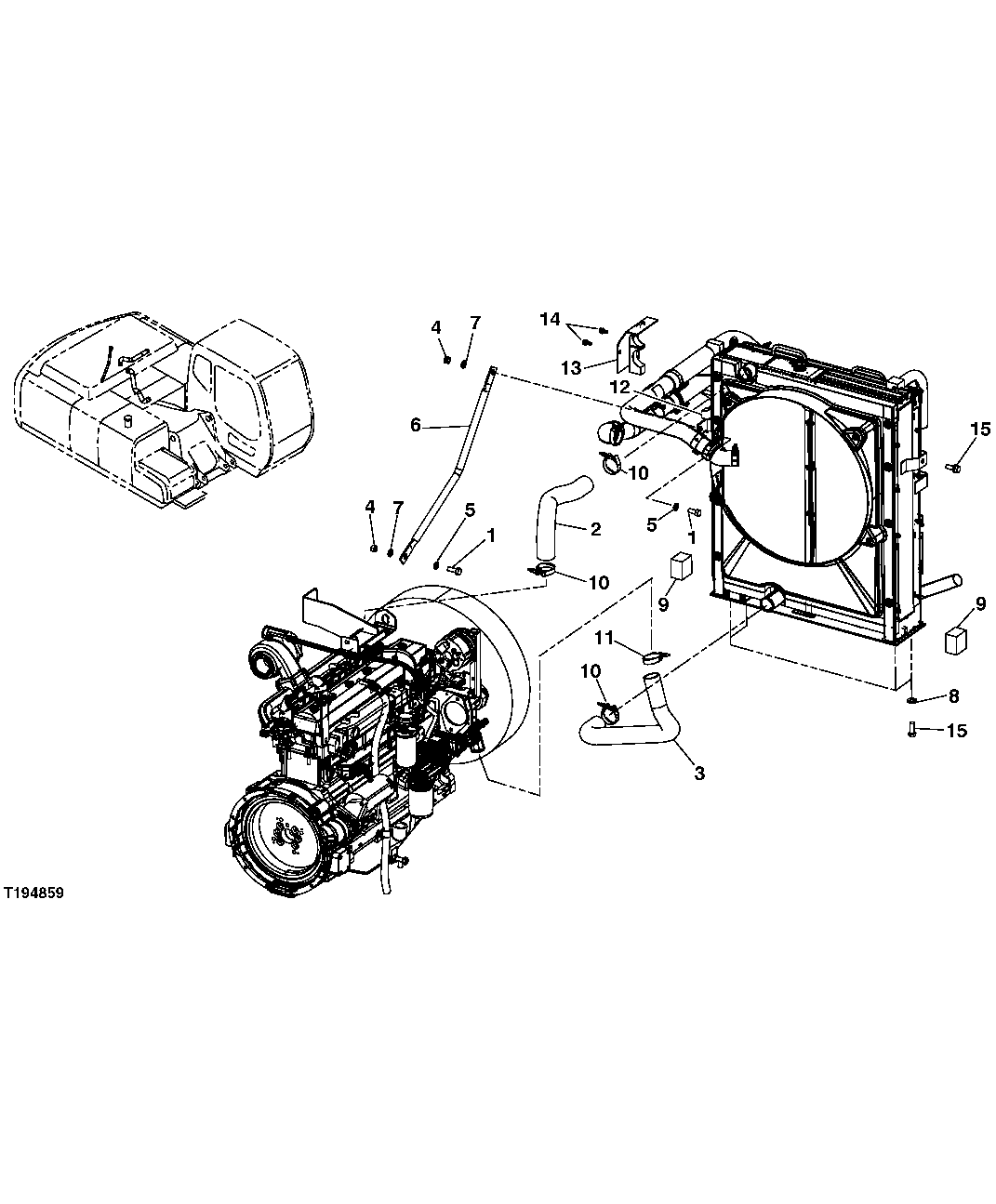

Запчасти John Deere 554 194 - RADIATOR SUPPORT BRACKETS, MOUNTING AND HOSES 0510 ENGINE COOLING SYSTEMS

1

19M8035

Cap Screw

M16 X 35

2шт.

2

DH700038

Radiator Hose

(SUB FOR THDH700038)

1шт.

3

DH200027

Radiator Hose

(SUB FOR THDH200027)

1шт.

4

14M7276

Nut

M16

2шт.

5

12H294

Lock Washer

5/8"

2шт.

6

3079124

Bracket

(SUB FOR AT218151)

1шт.

7

24M7053

Washer

17 X 30 X 3 mm

2шт.

8

24M7241

Washer

17 X 34 X 4 mm (SUB FO R TH101734 OR 4087197)

4шт.

9

DH400418

Isolator

(SUB FOR THDH400418)

2шт.

10

DH400620

Hose Clamp

(SUB FOR THDH400103)( TY22472 NOT USED FOR THIS APPLICATION)

3шт.

11

TY22470

Clamp

(SUB FOR THDH400102)

1шт.

12

DH400433

Isolator

(SUB FOR THDH400433)

1шт.

13

DH800060

Cover

(SUB FOR THDH800060)

1шт.

14

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

15

19M7489

Cap Screw

M16 X 45

4шт.
