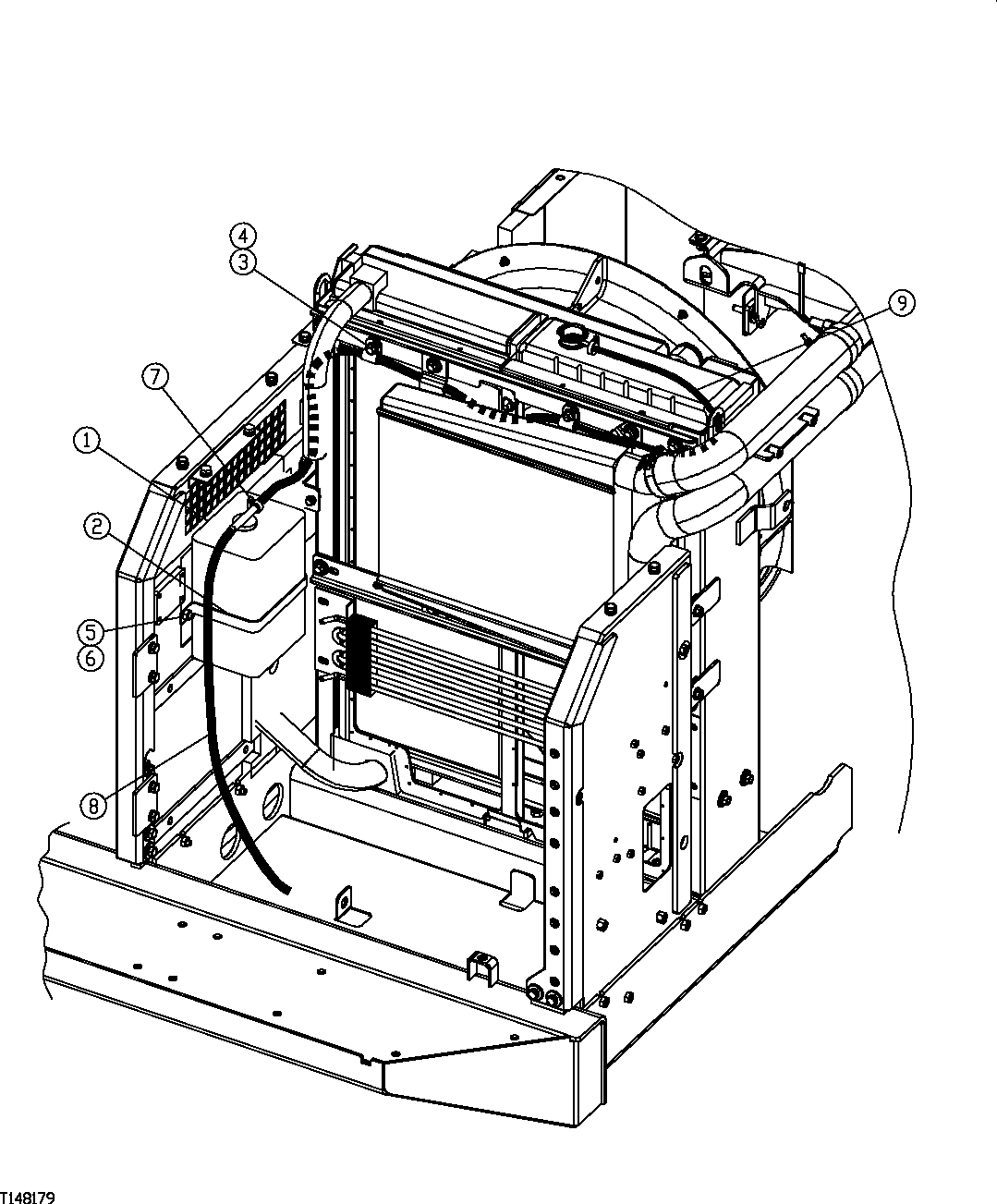

Запчасти John Deere 554 192 - ENGINE COOLANT RECOVERY SYSTEM 0510 ENGINE COOLING SYSTEMS

1

4284053

Tank

1шт.

4628753

Tank

1шт.

2

4180555

Bracket

(SUB FOR FFSB110951 ) (SUB FOR TH108579)

1шт.

3

H75541

Clamp

(SUB FOR FFSB105438)

2шт.

4

19M7938

Cap Screw

M10 X 20 (SUB FOR FFSB107124)

2шт.

5

14M7272

Nut

M6 (SUB FOR FFSB107184)

2шт.

6

12M7006

Lock Washer

6 mm (SUB FOR FFSB107439)

2шт.

7

TY22462

Clamp

(SUB FOR FFSB110952 ) (SUB FOR AR48236)

2шт.

8

Hose

(MAKE FROM TY24396 ) (SUB FOR F FSB110961)(CTL) 1050MM (41.39")

ARшт.

9

DH400525

Hose

(SUB FOR FFSB110962)(CTL) 1700MM (66.93")

ARшт.

10

4396809

Cap

(USE WITH 4284053 AND 4 628753)(NOT ILLUSTRATED)

1шт.

11

4153251

Sender

(USE WITH 4284053)(NOT ILLUSTRATED)

1шт.
