Запчасти John Deere 554 134 - 9901 ENGINE GASKET SET, OVERHAUL 0400B Engine 6068HT059-RE519692 6068HT059

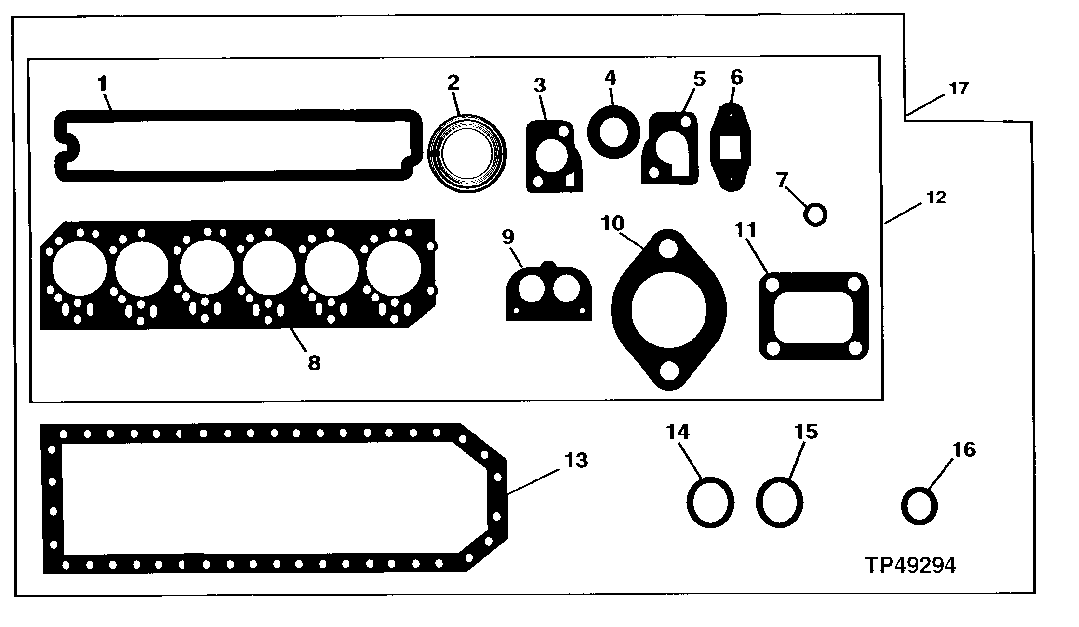

Схема запчастей John Deere 554 - 134 - 9901 ENGINE GASKET SET, OVERHAUL 0400B Engine 6068HT059-RE519692 6068HT059

Артикул

Название

Примечание

Количество

1

R123543

Gasket

(ROCKER ARM GOVER)

1шт.

RE520540

Gasket Kit

(HIGH TEMPERATURE)

1шт.

2

R90658

Gasket

(EXHAUST MANIFOLD)

6шт.

3

R502814

Gasket

(THERMOSTAT COVER)

1шт.

4

R123226

Seal

(WATER BY-PASS TUBE)

2шт.

5

R123345

Gasket

(THERMOSTAT HOUSING)

1шт.

6

R123570

Gasket

(TURBOCHARGER OIL OUTLET LINE)

1шт.

7

R123575

O-Ring

6шт.

8

R116516

Engine Cylinder Head Gasket

(CYLINDER HEAD)

1шт.

9

R501373

Gasket

(THERMOSTAT COVER)

1шт.

10

R81275

Gasket

(AIR INLET)

1шт.

11

R123572

Gasket

(TURBO TO EXHAUST MANIFOLD)

1шт.

12

RE66083

Gasket Kit

(CYLINDER HEAD REMOVAL)

1шт.

13

R123354

Gasket

(ENGINE OIL PAN)

1шт.

14

R75892

O-Ring

(OIL PUMP TUBE CONNECTOR)

1шт.

15

R97185

O-Ring

(OIL PUMP OUTLET TUBE TO COVER)

1шт.

16

R61871

O-Ring

(OIL PUMP INTAKE TUBE TO COVER)

1шт.

17

RE66085

Gasket Kit

(IN CHASSIS OVERHAUL)

1шт.

Выбрано товаров: 18
