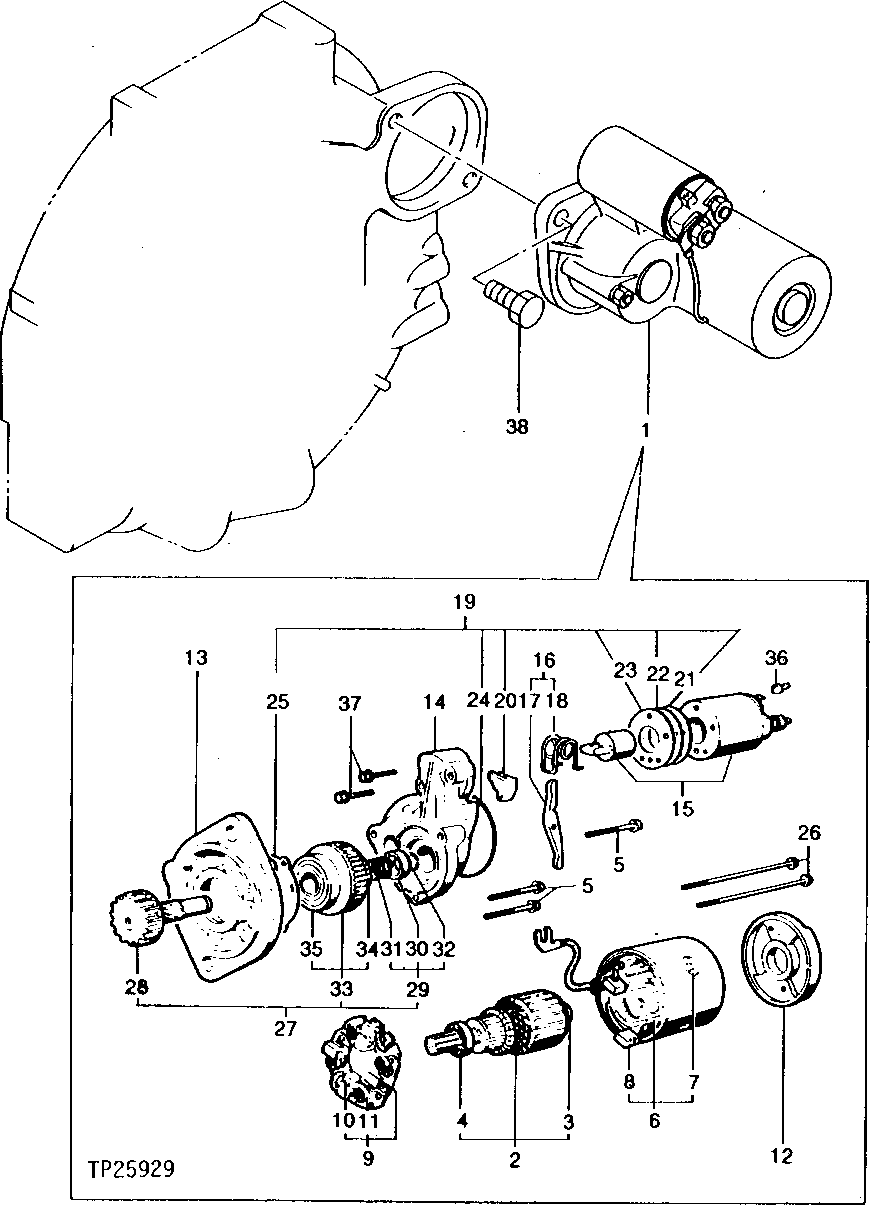

Запчасти John Deere 5 2 - STARTING MOTOR 422 - ENGINE 4

1

AT110818

STARTER MOTOR

1шт.

2

AT110819

ARMATURE

1шт.

3

AT110820

BEARING

1шт.

4

AT110821

BEARING

1шт.

5

M800008

BOLT

3шт.

6

AT110912

FIELD WINDING COIL

1шт.

7

T111592

SCREW

4шт.

8

AT110823

MOUNTING PARTS

2шт.

9

AT110824

HOLDER

1шт.

10

AT110825

MOUNTING PARTS

2шт.

11

AT110826

MOUNTING PARTS

4шт.

12

AT110827

COVER

1шт.

13

AT110828

GEAR CASE

1шт.

14

AT110829

HOUSING

1шт.

15

AT110830

SWITCH

1шт.

16

AT110831

LEVER

1шт.

17

LEVER

(SUB AT110831)

1шт.

18

SPRING

(SUB AT110831)

1шт.

19

AM878198

HOSE KIT

(SUB FOR AT110832 AND AT199691) (DUST COVER KIT)

1шт.

20

DUST SHIELD

(SUB AM878198)

1шт.

21

DUST SHIELD

(SUB AM878198)

1шт.

22

DUST SHIELD

(SUB AM878198)

1шт.

23

DUST SHIELD

(SUB AM878198)

1шт.

24

DUST SHIELD

(SUB AM878198)

1шт.

25

DUST SHIELD

(SUB AM878198)

1шт.

26

T111557

BOLT

2шт.

27

AT110833

PINION

1шт.

28

AT110834

PINION

1шт.

29

AT110835

MOUNTING PARTS

1шт.

30

STOP

(SUB AT110835)

1шт.

31

SPRING

(SUB AT110835)

1шт.

32

CLIP

(SUB AT110835)

1шт.

33

AT110836

CLUTCH

1шт.

34

T111558

BALL BEARING

1шт.

35

T111559

BALL BEARING

1шт.

36

AT110837

COVER

1шт.

37

CH20077

BOLT

2шт.

38

19M7268

CAP SCREW

M12 X 25

2шт.
