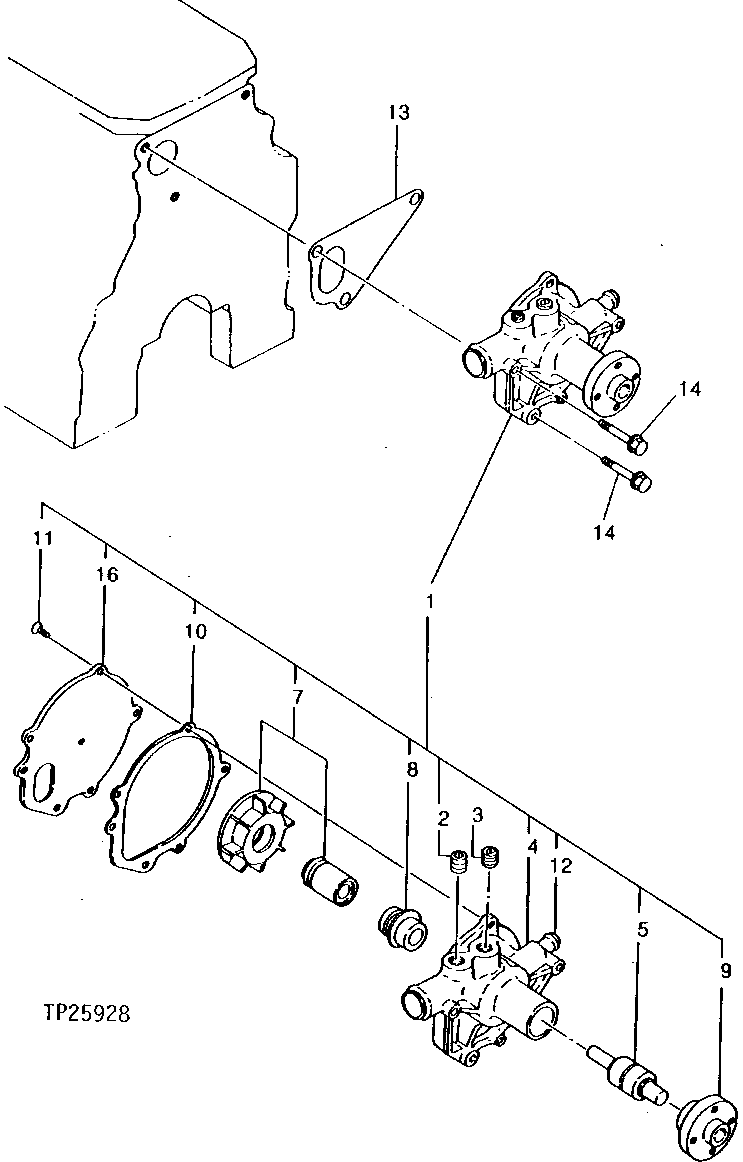

Запчасти John Deere 5 2 - ENGINE WATER PUMP 417 - ENGINE 4

1

AM880905

WATER PUMP

(SUB FOR AM878201, AM875397, AM875942 OR AM879651)

1шт.

2

CH16747

PLUG

1шт.

3

15H666

PIPE PLUG

1шт.

4

PUMP

(SUB AM880905)

1шт.

5

BEARING

(SUB AM880905)

1шт.

7

M802028

ROTOR

(SUB FOR M801263)

1шт.

8

SEAL

( CH12895 NO LONGER AVAILABLE)

1шт.

9

M801259

SEAT

1шт.

10

M805839

GASKET

(SUB FOR M801261)

1шт.

11

CH16851

SCREW

3шт.

12

HOSE FITTING

(SUB AM880905)

1шт.

13

M801265

GASKET

1шт.

14

19M7801

SCREW

M8 X 60

3шт.

16

M809501

PLATE

(SUB FOR M801260)

1шт.
