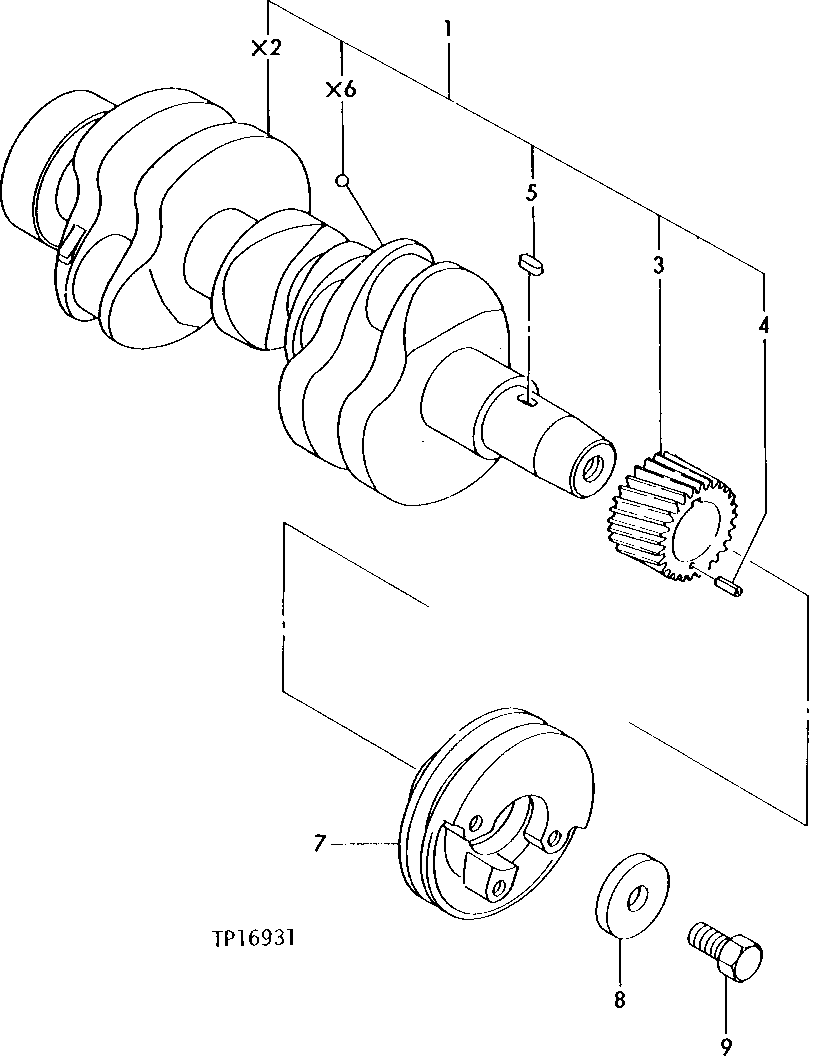

Запчасти John Deere 5 4 - CRANKSHAFT 401 - ENGINE 4

1

AM876335

CRANKSHAFT

(SUB FOR AM875538)

1шт.

2

CRANKSHAFT

(SUB AM876335)

1шт.

3

M801053

GEAR

1шт.

4

CH12293

PIN

(USE WITH AM875538 CRANKSHAFT INSTALLED BEFORE JULY 1995)

1шт.

M802255

PIN

(USE WITH AM876335 REPLACEMENT CRANKSHAFT INSTALLED JULY 1995 OR AFTER)

1шт.

5

M801045

SHAFT KEY

1шт.

6

BALL

(SUB AM876335)

3шт.

7

M801750

PULLEY

1шт.

8

M801055

WASHER

1шт.

9

CH16798

BOLT

1шт.
