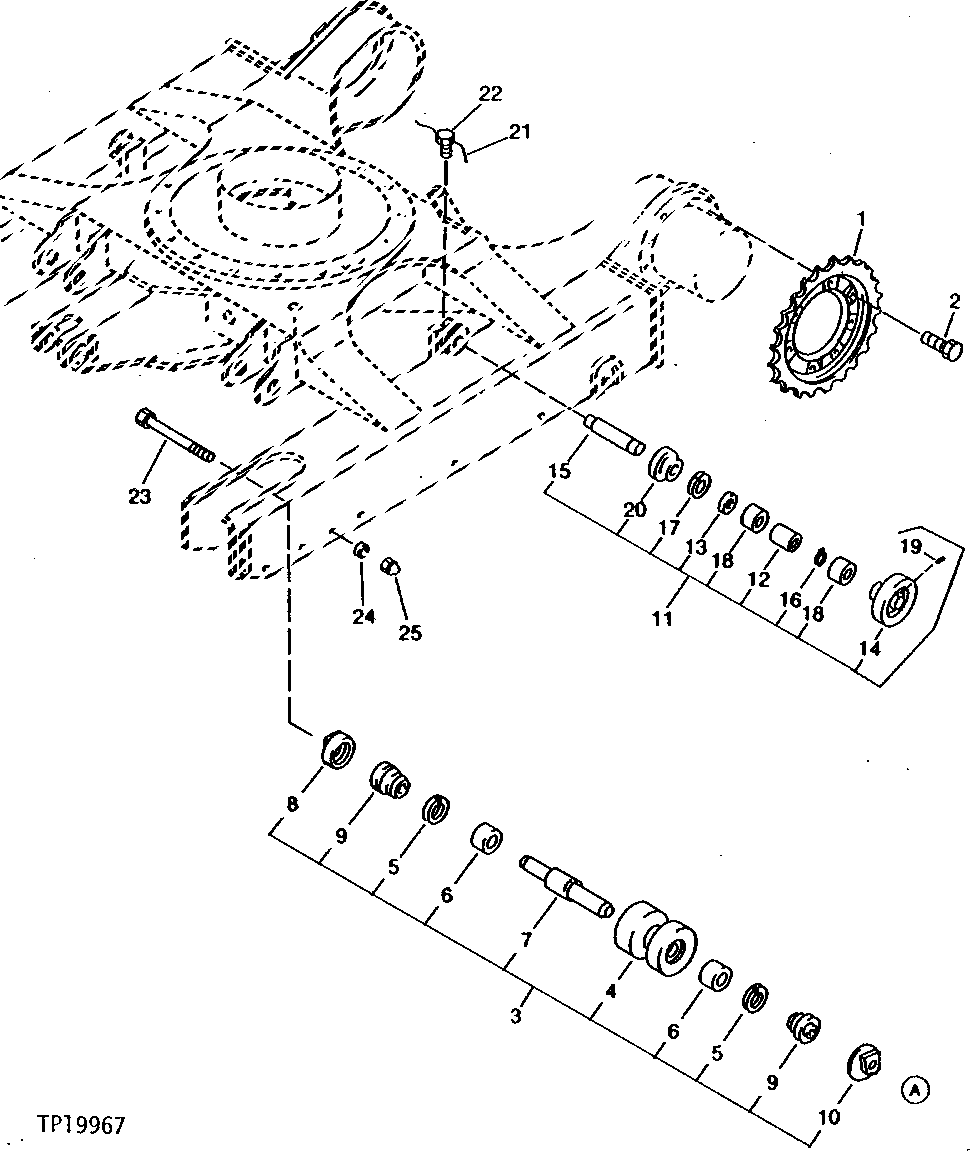

Запчасти John Deere 5 10 - ROLLERS AND DRIVE SPROCKET 130 - TRACKS 1

1

T113804

CHAIN SPROCKET

2шт.

2

19M7744

CAP SCREW

M12 X 35, (SUB FOR M801662, ALONG WITH 12M7067)

18шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

18шт.

3

AT111529

ROLLER

8шт.

4

T113805

ROLLER

LOWER

1шт.

5

40M7043

SNAP RING

(SUB FOR CH15010)

2шт.

6

JD30067

BALL BEARING

(SUB FOR T111334)

2шт.

7

T111349

SHAFT

1шт.

8

T111350

COVER

(USE IF AVAILABLE)

1шт.

9

T110815

SEAL

2шт.

10

T111351

COVER

1шт.

11

AT111530

ROLLER

2шт.

12

T110372

BUSHING

1шт.

13

T110373

WASHER

1шт.

14

T113806

ROLLER

UPPER

1шт.

15

T110072

SHAFT

UPPER

1шт.

16

CH11481

RING

1шт.

17

CH11487

RING

1шт.

18

CH11550

BALL BEARING

2шт.

19

94-2010

FITTING PLUG

(SUB FOR T110620) (SUB FOR TH100689)

1шт.

20

T111354

SEAL

1шт.

21

T110425

WIRE

2шт.

22

T110481

BOLT

2шт.

23

T110057

BOLT

8шт.

24

12M7069

LOCK WASHER

16 MM

8шт.

25

M806438

WASHER

(SUB FOR CH15385)

8шт.
