Запчасти John Deere 5 2 - TRACK FRAME AND IDLER 130 - TRACKS 1

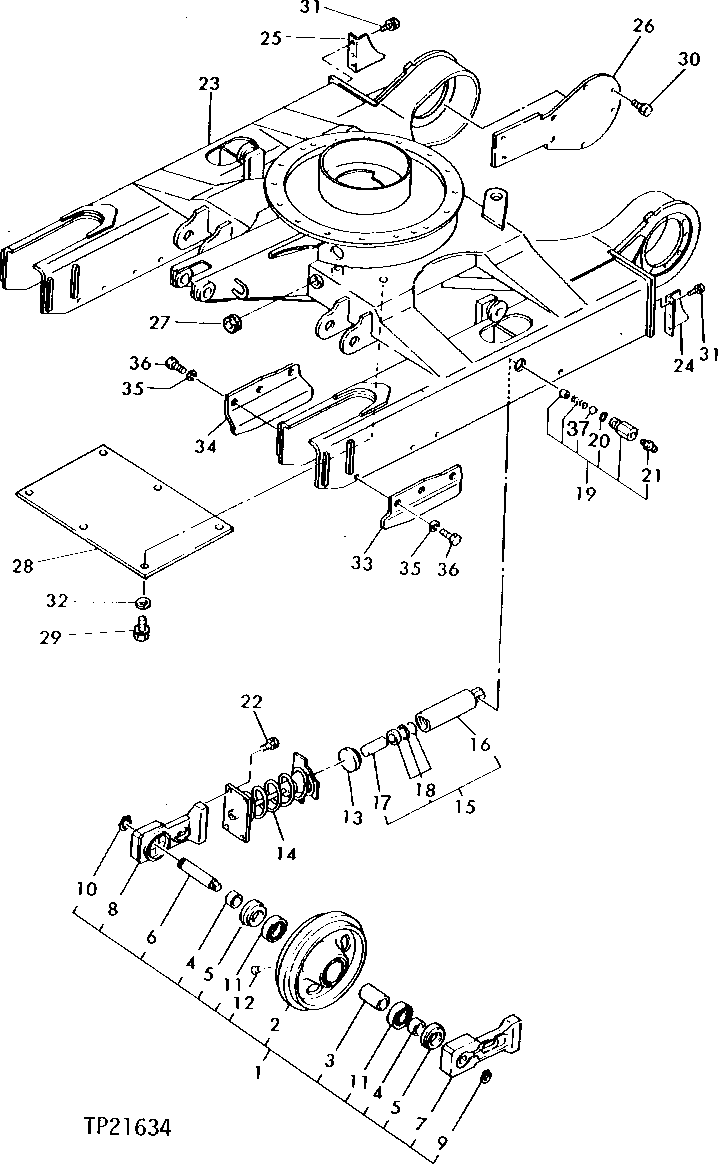

Схема запчастей John Deere 5 - 2 - TRACK FRAME AND IDLER 130 - TRACKS 1

Артикул

Название

Примечание

Количество

1

IDLER

( AT110930 NO LONGER AVAILABLE)

2шт.

2

T110377

ROLLER SHELL

1шт.

3

T110378

BUSHING

1шт.

4

T110379

BUSHING

2шт.

5

T111301

SEAL

2шт.

6

T110380

SHAFT

1шт.

7

T110381

COVER

1шт.

8

T110382

COVER

(USE IF AVAILABLE)

1шт.

9

40M7084

SNAP RING

(SUB FOR CH11482)

1шт.

10

40M7046

SNAP RING

(SUB FOR CH11483)

1шт.

11

JD8518

BALL BEARING

(SUB FOR CH16424)

2шт.

12

94-2010

FITTING PLUG

(SUB FOR T110620) (SUB FOR TH100689)

2шт.

13

AT110014

HOLDER

2шт.

14

AT110209

SPRING

2шт.

15

AT110323

ADJUSTER

2шт.

16

MOUNTING PARTS

( AT110398 NO LONGER AVAILABLE)

1шт.

17

PISTON

( T110099 NO LONGER AVAILABLE)

1шт.

18

AT110015

SEAL KIT

1шт.

19

AT110016

FLOW CONTROL HYD. VALVE

2шт.

20

CH11570

O-RING

1шт.

21

TH100074

LUBRICATION FITTING

(SUB FOR T110449 OR CH11575)

1шт.

22

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

8шт.

19M7493

CAP SCREW

M12 X 40

8шт.

23

FRAME

( AT110406 CONVENIENCE ASSEMBLY NO LONGER AVAILABLE)

1шт.

24

T110123

GUARD

1шт.

25

T110124

GUARD

1шт.

26

T111036

COVER

2шт.

27

T111178

GROMMET

2шт.

28

T111037

COVER

1шт.

29

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

6шт.

30

12M7066

LOCK WASHER

10 MM

16шт.

19M7166

CAP SCREW

M10 X 20

16шт.

31

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

6шт.

19M8011

CAP SCREW

M12 X 30

6шт.

32

24M7296

WASHER

10.500 X 30 X 2.500 MM, (SUB FOR T110607)

6шт.

33

T110125

GUARD

2шт.

34

T110126

GUARD

(USE IF AVAILABLE)

2шт.

35

12M7069

LOCK WASHER

16 MM

8шт.

36

T110462

BOLT

8шт.

37

400R

BALL

1шт.

Выбрано товаров: 40
