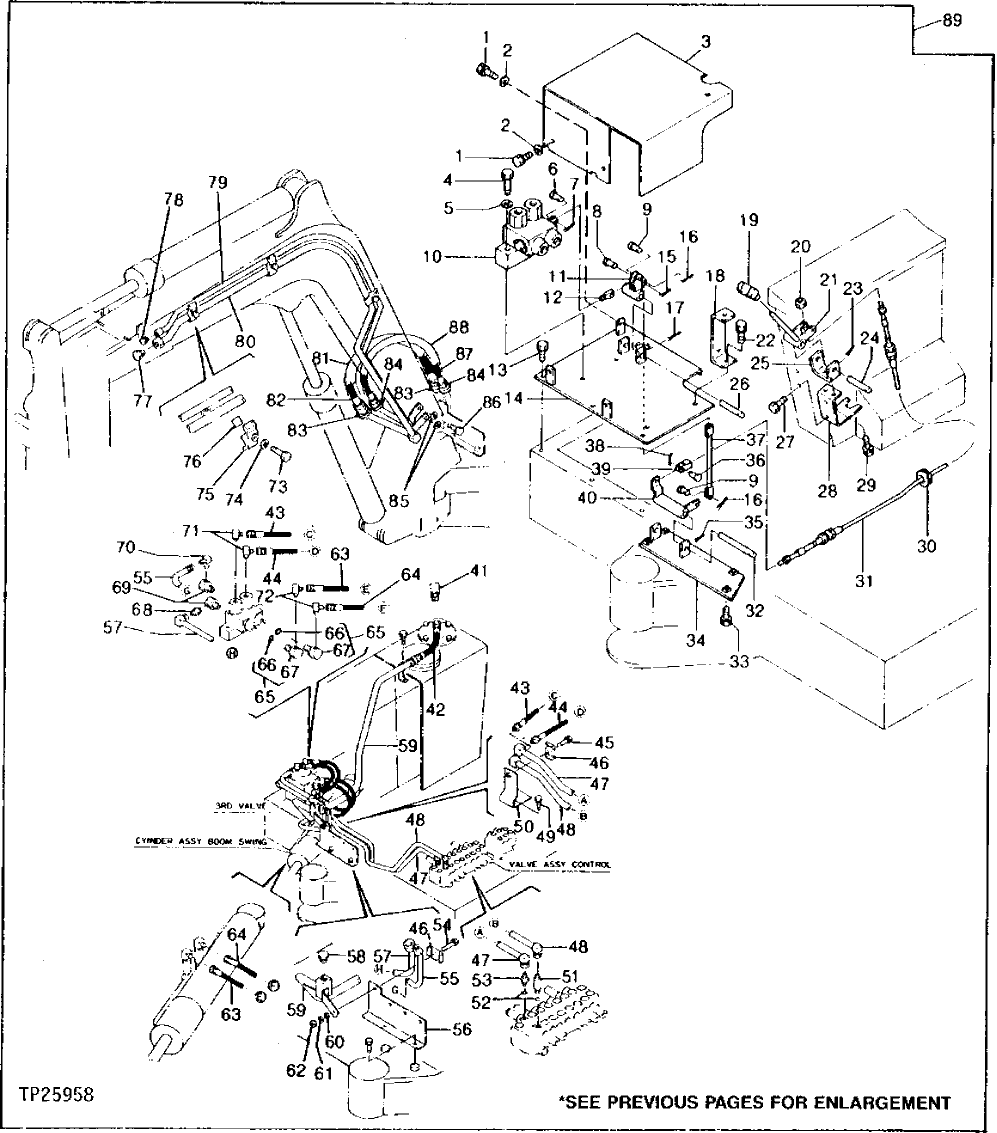

Запчасти John Deere 5 8 - AUXILIARY VALVE 3360 - BACKHOE 33

50

T111668

SUPPORT

1шт.

51

T110609

ADAPTER

1шт.

52

T110593

PACKING

2шт.

53

T110608

FITTING

1шт.

54

CH15013

BOLT

1шт.

55

T111672

OIL LINE

1шт.

56

T111669

SUPPORT

1шт.

57

T111673

OIL LINE

1шт.

58

T111666

PIPE PLUG

1шт.

59

T111674

OIL LINE

1шт.

60

24M7028

WASHER

10.500 X 20 X 2 MM

1шт.

61

12M7060

WASHER

5.300 MM

1шт.

62

14M7274

NUT

M10

1шт.

63

T111675

HYDRAULIC HOSE - FABRICATE

1шт.

64

T111676

HYDRAULIC HOSE - FABRICATE

1шт.

65

T110592

CONNECTOR

(SUB AT111535)

2шт.

AT111535

FITTING

2шт.

66

T110593

PACKING

2шт.

67

FITTING

(SUB AT111535)

2шт.

68

T110596

FITTING

1шт.

69

T111665

ELBOW FITTING

2шт.

70

T111667

ELBOW FITTING

1шт.

71

T115889

ELBOW FITTING

(SUB FOR T110866)

2шт.

72

T115889

ELBOW FITTING

(SUB FOR T110866)

2шт.

73

19M7330

CAP SCREW

M12 X 55

3шт.

74

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

3шт.

75

T111457

CLAMP

(USE IF AVAILABLE)

3шт.

76

T111681

SPACER

3шт.

77

T111666

PIPE PLUG

1шт.

78

T111680

PIPE PLUG

1шт.

79

T111682

OIL LINE

1шт.

80

AT111506

OIL LINE

(SUB FOR T111683)

1шт.

81

T111684

COVER

(FOR USE WITH CANOPY)

1шт.

82

T111686

HYDRAULIC HOSE - FABRICATE

1шт.

83

CH16579

CLAMP

(FOR USE WITH CANOPY)

2шт.

84

T111126

CLAMP

(FOR USE WITH CANOPY)

2шт.

85

24M7296

WASHER

10.500 X 30 X 2.500 MM, (SUB FOR T110607)

2шт.

86

12M7066

LOCK WASHER

10 MM

2шт.

19M7166

CAP SCREW

M10 X 20

2шт.

87

T111106

HYDRAULIC HOSE - FABRICATE

1шт.

88

T111685

COVER

(FOR USE WITH CANOPY)

1шт.

89

VALVE

( AT107165 NO LONGER AVAILABLE)

1шт.
