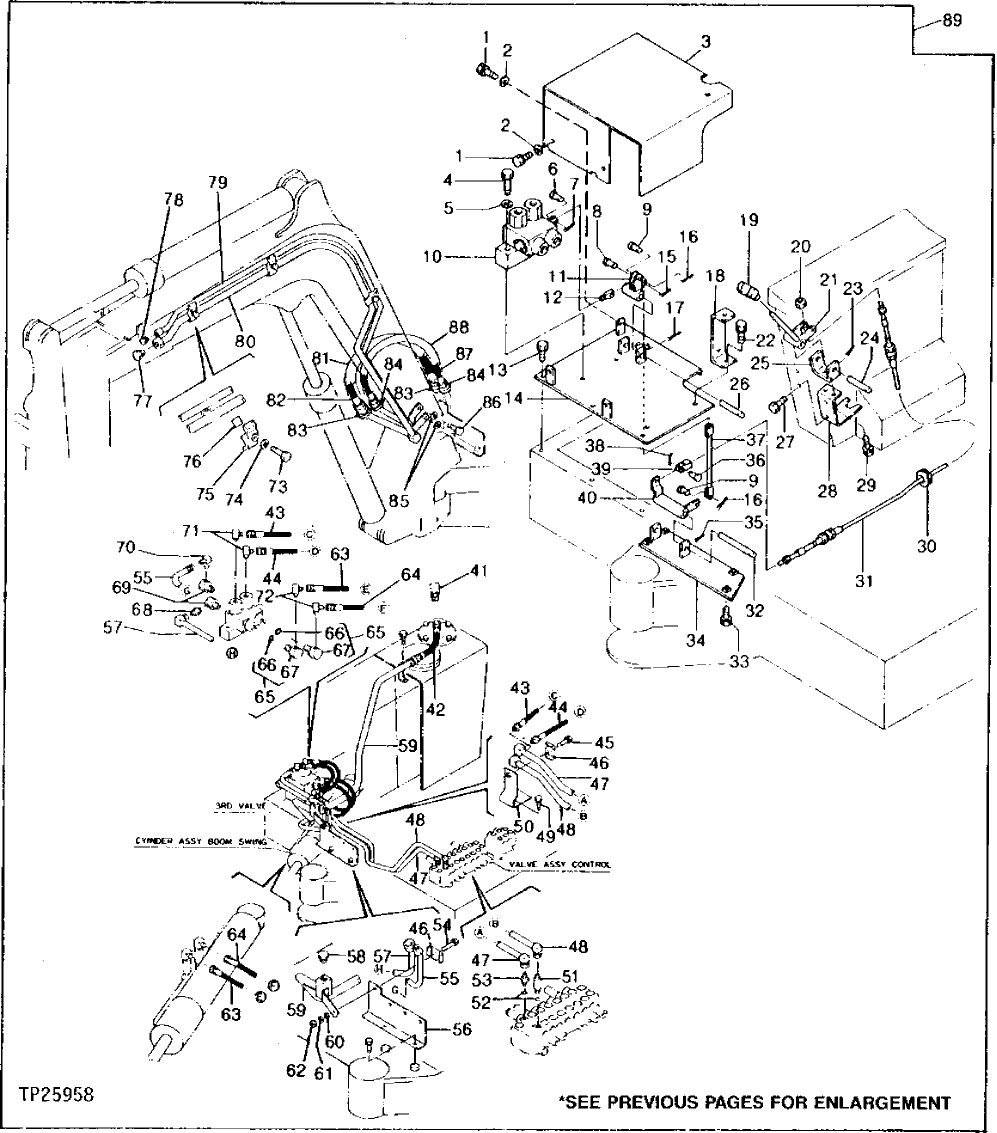

Запчасти John Deere 5 6 - AUXILIARY VALVE 3360 - BACKHOE 33

1

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

4шт.

2

24M7028

WASHER

10.500 X 20 X 2 MM

4шт.

3

T111659

VALVE COVER

1шт.

4

CH15013

BOLT

2шт.

5

12M7060

WASHER

5.300 MM

2шт.

6

T110484

PIN FASTENER

1шт.

7

11M7094

COTTER PIN

1.600 X 16 MM, (SUB FOR T110417)

1шт.

8

T110627

PIN

1шт.

9

T110002

PIN

2шт.

10

T111664

HYD ACTUATED CONTROL VALVE

1шт.

11

T111655

LINK

1шт.

12

T111662

LINK

1шт.

13

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

3шт.

14

T111663

BRACKET

1шт.

15

11M7058

COTTER PIN

2 X 25 MM, (SUB FOR T110417) (SUB FOR 11M7009)

1шт.

16

11M7078

COTTER PIN

2 X 20 MM

2шт.

17

11M7087

COTTER PIN

(SUB FOR T111661) (SUB FOR 11M7023)

1шт.

18

T111660

SUPPORT

1шт.

19

T110837

GRIP

1шт.

20

14M7272

NUT

M6, (SUB FOR CH17809)

1шт.

21

AT110671

LEVER

(CONTAINS (2) TH110633 BUSHINGS)

1шт.

T110633

BUSHING

2шт.

22

12M7066

LOCK WASHER

10 MM

1шт.

19M7402

CAP SCREW

M10 X 25

1шт.

23

11M7087

COTTER PIN

(SUB FOR T111661) (SUB FOR 11M7023)

1шт.

24

AT110001

SHAFT

1шт.

25

T110105

BRACKET

1шт.

26

AT110001

SHAFT

1шт.

27

12M7066

LOCK WASHER

10 MM

2шт.

19M7166

CAP SCREW

M10 X 20

2шт.

28

T111451

BRACKET

1шт.

29

12M7066

LOCK WASHER

10 MM

2шт.

19M7166

CAP SCREW

M10 X 20

2шт.

30

T110622

GROMMET

1шт.

31

T111450

PUSH PULL CABLE

1шт.

32

T111657

SHAFT

1шт.

33

12M7066

LOCK WASHER

10 MM

4шт.

19M7166

CAP SCREW

M10 X 20

4шт.

34

T111654

BRACKET

1шт.

35

11M7087

COTTER PIN

(SUB FOR T111661) (SUB FOR 11M7023)

1шт.

36

T110002

PIN

1шт.

37

T111658

ROD

1шт.

38

11M7078

COTTER PIN

2 X 20 MM

1шт.

39

T110013

UNIVERSAL JOINT

1шт.

40

T111656

LINK

1шт.

41

4156433

ELBOW FITTING

(SUB FOR T111099) (SUB FOR TH101971)

1шт.

42

T111679

HYDRAULIC HOSE - FABRICATE

1шт.

43

T111677

HYDRAULIC HOSE - FABRICATE

1шт.

44

T111678

HYDRAULIC HOSE - FABRICATE

1шт.

45

12M7006

LOCK WASHER

6 MM

1шт.

19M7167

CAP SCREW

M10 X 25

1шт.

46

T110599

CLAMP

2шт.

47

T111670

OIL LINE

1шт.

48

T111671

OIL LINE

1шт.

49

12M7066

LOCK WASHER

10 MM

2шт.

19M7402

CAP SCREW

M10 X 25

2шт.
