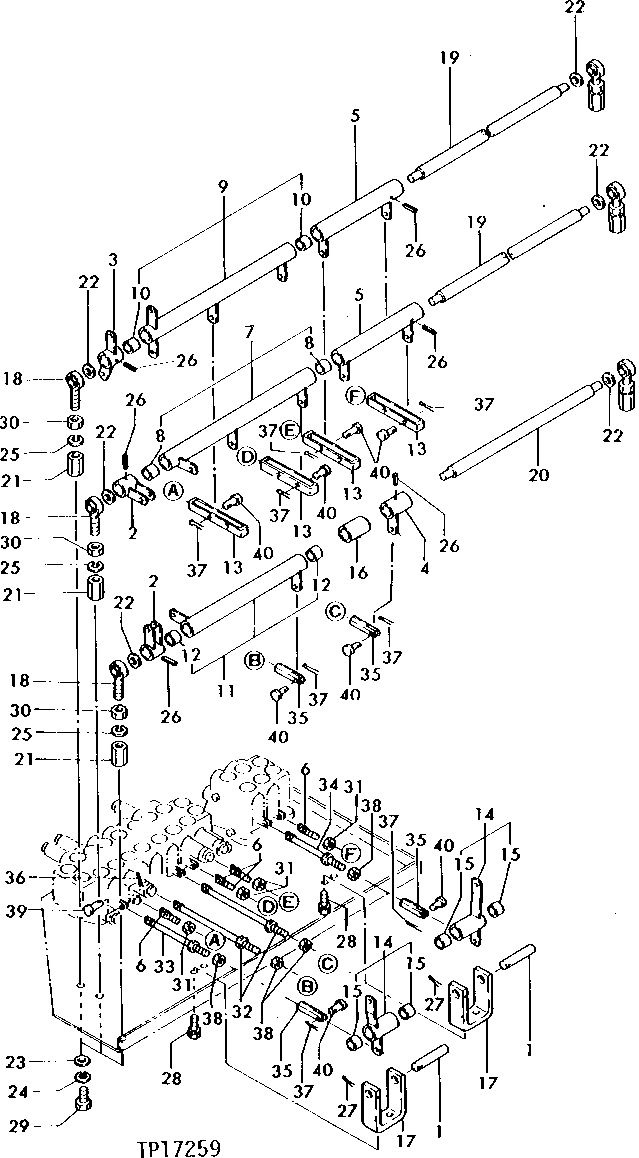

Запчасти John Deere 5 10 - CONTROL LEVER LINKAGE 3315 - BACKHOE 33

1

AT110001

SHAFT

2шт.

2

AT110020

LINK

2шт.

3

AT110098

LINK

1шт.

4

AT110021

LINK

1шт.

5

AT110022

LINK

2шт.

6

T110226

LINK

ARM (FORWARD), BOOM, BUCKET AND HOUSE SWING (REAR) (USE IF AVAILABLE)

4шт.

7

AT110024

LINK

1шт.

8

T110842

BUSHING

2шт.

9

AT110025

LINK

1шт.

10

T110842

BUSHING

2шт.

11

AT110026

LINK

1шт.

12

T110842

BUSHING

2шт.

13

T110227

LINK

(USE IF AVAILABLE)

4шт.

14

AT110027

LINK

2шт.

15

T110633

BUSHING

4шт.

16

T110102

BUSHING

1шт.

17

T110104

BRACKET

2шт.

18

T110107

END

6шт.

19

T110108

SHAFT

2шт.

20

T110109

SHAFT

1шт.

21

T110112

PIN

6шт.

22

CH12008

WASHER

6шт.

23

CH12008

WASHER

6шт.

24

12M7068

LOCK WASHER

14 MM

6шт.

25

12M7068

LOCK WASHER

14 MM

6шт.

26

CH13500

SPRING PIN

6шт.

27

11M7087

COTTER PIN

4 X 40 MM

2шт.

28

12M7066

LOCK WASHER

10 MM

4шт.

19M7166

CAP SCREW

M10 X 20

4шт.

29

19M8962

CAP SCREW

(SUB FOR T111316)

6шт.

30

14M7141

NUT

M14, (SUB FOR CH12041)

6шт.

31

14M7273

NUT

M8

4шт.

32

AT110101

LINK

LEFT TRACK (FORWARD), RIGHT TRACK (REAR)

2шт.

33

AT110102

LINK

BOOM SWING

1шт.

34

AT110040

ROD

BLADE

1шт.

35

T110118

LINK

4шт.

36

11M7094

COTTER PIN

1.600 X 16 MM, (SUB FOR T110417)

8шт.

37

11M7058

COTTER PIN

2 X 25 MM, (SUB FOR 11M7009)

8шт.

38

14M7274

NUT

M10

4шт.

39

T110484

PIN FASTENER

8шт.

40

T110627

PIN

8шт.
