Запчасти John Deere 5 4 - CONTROL LEVERS AND LINKAGE 3315 - BACKHOE 33

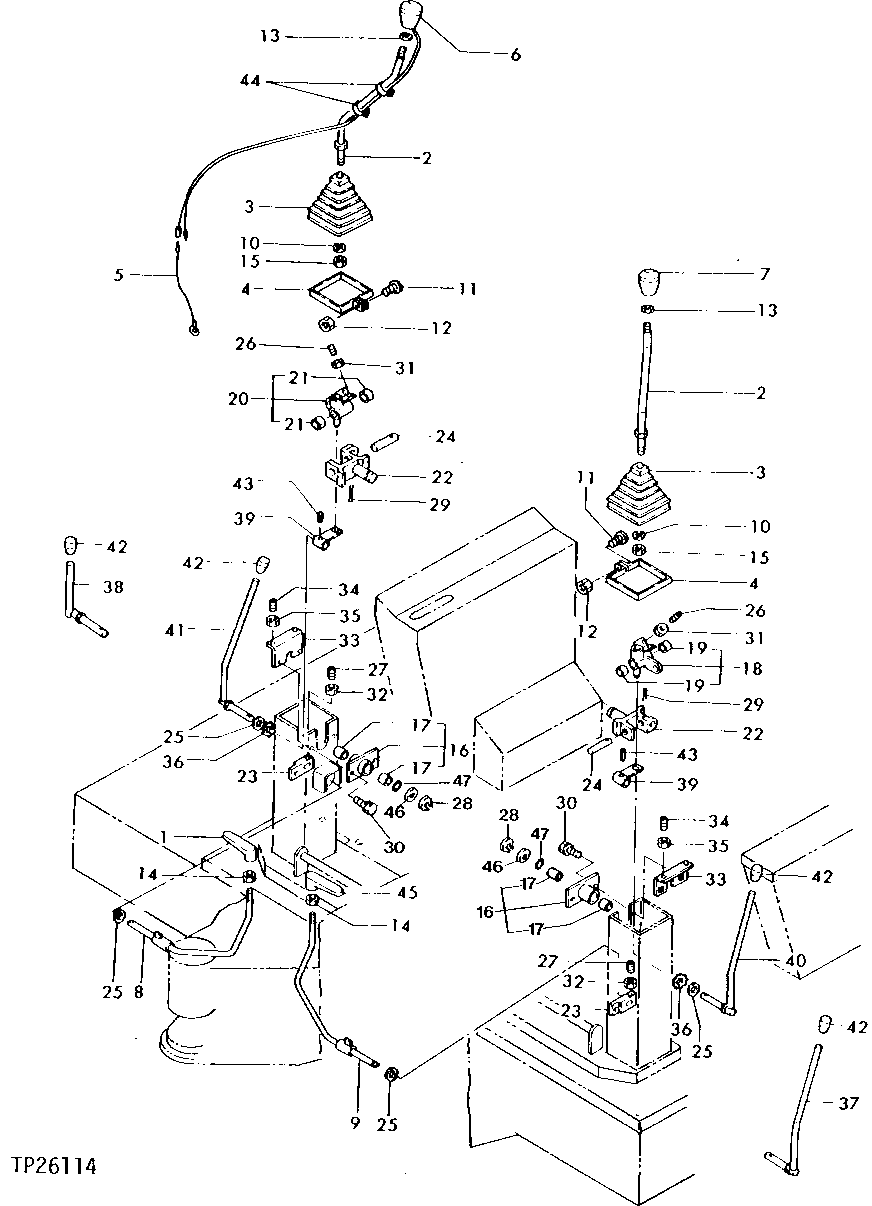

Схема запчастей John Deere 5 - 4 - CONTROL LEVERS AND LINKAGE 3315 - BACKHOE 33

Артикул

Название

Примечание

Количество

1

T111952

KNOB

(LEFT) (SUB FOR T110835, THIS APPLICATION)

1шт.

2

AT110017

LEVER

ARM AND BUCKET (RIGHT), BOOM AND HOUSE SWING (LEFT)

2шт.

T107234

LABEL

(K) (LEFT CONTROL LEVER) (NOT ILLUSTRATED)

1шт.

T107235

LABEL

(K) (RIGHT CONTROL LEVER) (NOT ILLUSTRATED)

1шт.

3

T114173

BOOT

(SUB FOR T110101)

2шт.

4

AT110019

BAND

2шт.

5

T110115

WIRING LEAD

(HORN)

1шт.

6

T110833

KNOB

1шт.

7

T110834

KNOB

1шт.

8

AT110041

LEVER

(RIGHT PROPEL CONTROL)

1шт.

9

AT110042

LEVER

(LEFT PROPEL CONTROL)

1шт.

10

12M7069

LOCK WASHER

16 MM

2шт.

11

CH10620

SCREW

2шт.

12

14M7229

NUT

M5

2шт.

13

14M7274

NUT

M10

2шт.

14

14M7274

NUT

M10

2шт.

15

CH12405

NUT

2шт.

16

AT110029

BOSS

2шт.

AT111804

BOSS

2шт.

17

T110075

BUSHING

4шт.

CH14781

NEEDLE BEARING

4шт.

18

LINK

(SUB AT111805) (LEFT) ( AT110030 NO LONGER AVAILABLE)

1шт.

AT111805

LINK

(LEFT)

1шт.

19

T110633

BUSHING

2шт.

BUSHING

(SUB T110633) ( T114163 NO LONGER AVAILABLE)

2шт.

20

AT111806

LINK

(SUB FOR AT110031)

1шт.

AT111806

LINK

(RIGHT)

1шт.

21

T110633

BUSHING

2шт.

BUSHING

(SUB T110633) ( T114163 NO LONGER AVAILABLE)

2шт.

22

T110103

LINK

(USE IF AVAILABLE)

2шт.

T114164

LINK

2шт.

23

T110106

ARM

2шт.

24

T110111

SHAFT

2шт.

25

T110113

SHIM

4шт.

26

T114040

STUD

(SUB FOR T110841)

4шт.

27

T114040

STUD

(SUB FOR T110841)

2шт.

28

40M7080

SNAP RING

(SUB FOR CH16769)

2шт.

40M1823

SNAP RING

(SUB FOR CH14826)

2шт.

29

11M7087

COTTER PIN

4 X 40 MM

2шт.

30

12M7066

LOCK WASHER

10 MM

4шт.

19M7166

CAP SCREW

M10 X 20

4шт.

31

R67593

NUT

(SUB FOR 14M7229, THIS APPLICATION) (SUB FOR CH11460)

4шт.

32

R67593

NUT

(SUB FOR 14M7229, THIS APPLICATION) (SUB FOR CH11460)

2шт.

33

AT110034

SUPPORT

2шт.

34

T114040

STUD

(SUB FOR T110841)

4шт.

35

R67593

NUT

(SUB FOR 14M7229, THIS APPLICATION) (SUB FOR CH11460)

4шт.

36

T110375

SPRING WASHER

2шт.

37

AT110484

LEVER

(USE WITH CAB) FUNCTION CONTROL LEVER LOCK

1шт.

38

LEVER

(USE WITH CAB) FUNCTION CONTROL LEVER LOCK (NO LONGER AVAILABLE FOR SERVICE)

1шт.

39

T110839

ARM

2шт.

40

AT110402

LEVER

(USE WITH CANOPY) FUNCTION CONTROL LEVER LOCK

1шт.

41

AT110403

LEVER

(USE WITH CANOPY) FUNCTION CONTROL LEVER LOCK

1шт.

42

T110840

KNOB

2шт.

43

CH12299

PIN

2шт.

44

T110612

TIE BAND

2шт.

45

T111953

KNOB

(RIGHT) (SUB FOR T110835, THIS APPLICATION)

1шт.

46

T110403

LINING

2шт.

47

T114160

O-RING

2шт.

Выбрано товаров: 58
