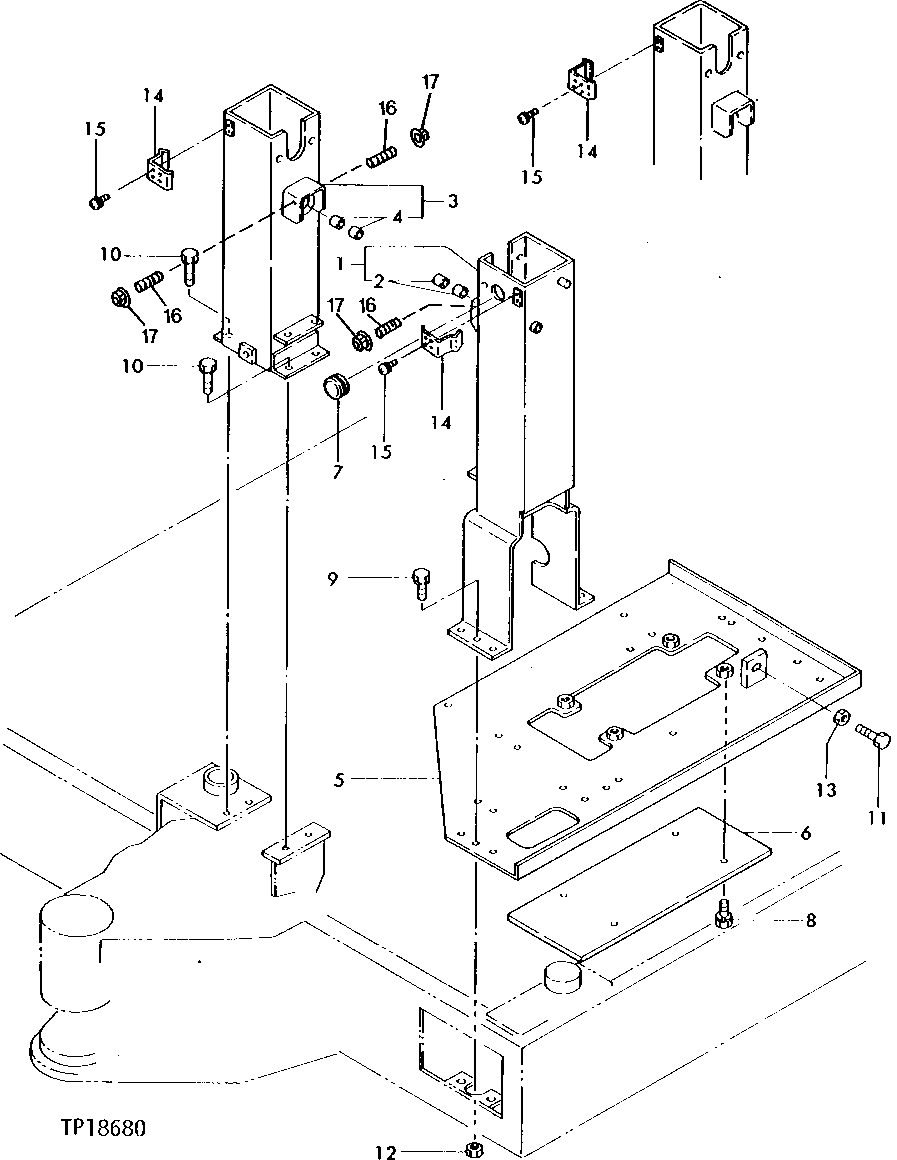

Запчасти John Deere 5 2 - CONTROL LEVER STANDS 3315 - BACKHOE 33

1

AT110936

LEVER

LEFT

1шт.

2

T110633

BUSHING

2шт.

3

AT110937

LEVER

RIGHT

1шт.

4

T110633

BUSHING

2шт.

5

AT110401

PLATE

1шт.

AT111815

PLATE

1шт.

6

T110116

COVER

1шт.

7

T110026

GROMMET

1шт.

8

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

4шт.

24M7296

WASHER

10.500 X 30 X 2.500 MM, (SUB FOR T110607)

4шт.

9

12M7066

LOCK WASHER

10 MM

5шт.

19M7166

CAP SCREW

M10 X 20

5шт.

10

12M7066

LOCK WASHER

10 MM

4шт.

19M7166

CAP SCREW

M10 X 20

4шт.

11

19M8600

CAP SCREW

M10 X 50

1шт.

12

14M7274

NUT

M10

1шт.

13

14M7274

NUT

M10

1шт.

14

T111617

LOCK

2шт.

15

21M7278

SCREW

M5 X 10, (SUB FOR T111943)

4шт.

24M7027

WASHER

5.300 X 10 X 1 MM, (SUB FOR T111943)

4шт.

12M7064

LOCK WASHER

5 MM, (SUB FOR T111943)

4шт.

16

T114040

STUD

4шт.

17

R67593

NUT

(SUB FOR CH11460)

4шт.
