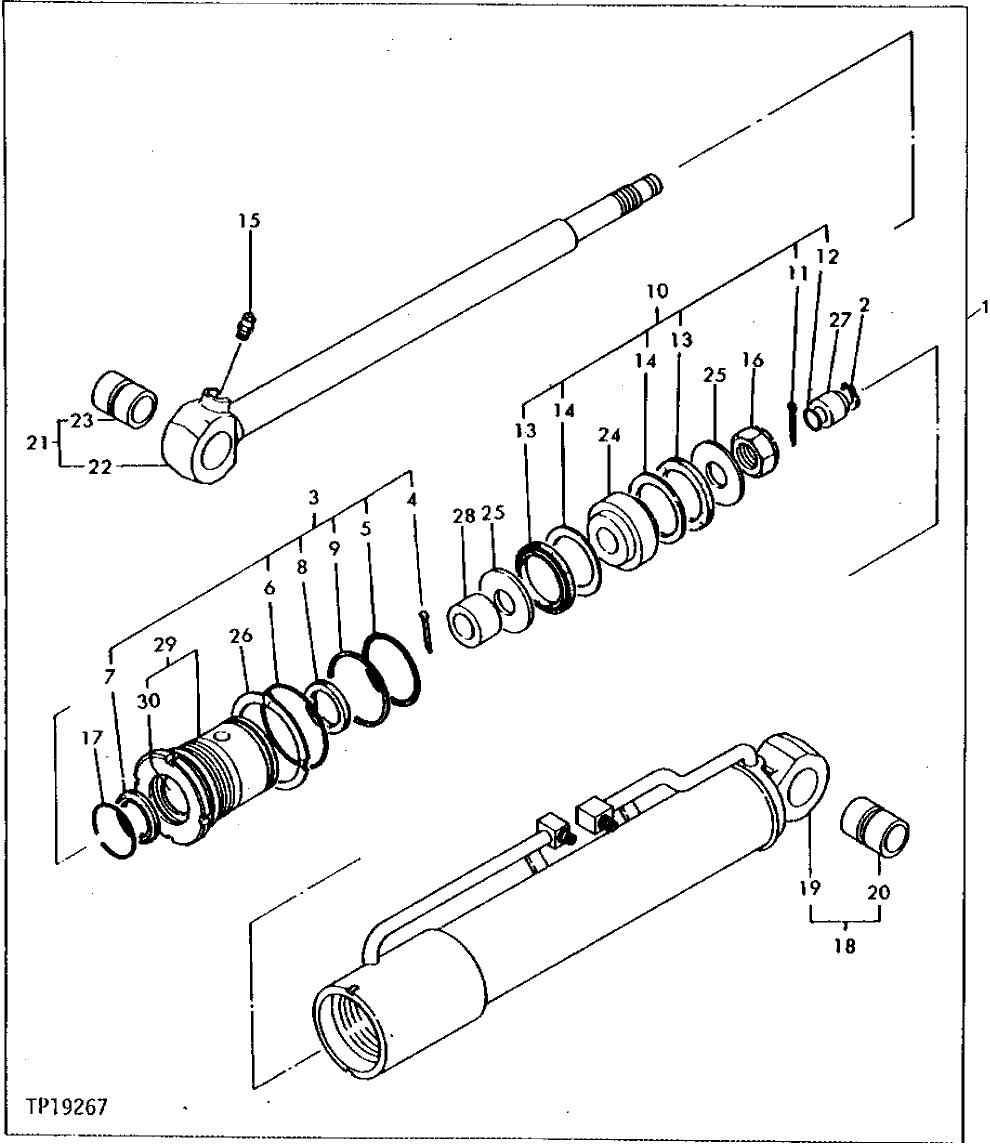

Запчасти John Deere 5 24 - SWING CYLINDER 2160 - MAIN HYDRAULIC SYSTEM 21

1

AT110220

HYDRAULIC CYLINDER

1шт.

2

CH17291

RING

1шт.

3

AT110964

SEAL KIT

1шт.

4

11M7032

COTTER PIN

5 X 50 MM, (SUB FOR T110420)

1шт.

5

T110435

O-RING

1шт.

6

AT264319

O-RING

(SUB FOR T110447)

1шт.

7

T110505

SEAL

1шт.

8

T110506

PACKING

1шт.

9

T110584

BACK-UP RING

1шт.

10

AT110965

SEAL KIT

1шт.

11

11M7032

COTTER PIN

5 X 50 MM, (SUB FOR T110420)

1шт.

12

CH11563

PACKING

1шт.

13

T110565

PACKING

2шт.

14

T110580

RING

2шт.

15

TH100074

LUBRICATION FITTING

(SUB FOR T110449 OR CH11575)

1шт.

16

T110504

NUT

1шт.

17

T110511

RING

1шт.

18

AT110966

HYDRAULIC CYLINDER BARREL

1шт.

19

BARREL

(SUB AT110966)

1шт.

20

T110545

BUSHING

1шт.

21

AT110967

ROD

1шт.

22

ROD

(SUB AT110967)

1шт.

23

T110545

BUSHING

1шт.

24

T110536

PISTON

1шт.

25

T110541

GASKET

2шт.

26

T110548

WASHER

1шт.

27

T110567

PLUNGER

1шт.

28

T110568

PLUNGER

1шт.

29

AT110235

HYDR. CYLINDER ROD GUIDE

1шт.

30

T110492

BUSHING

1шт.
