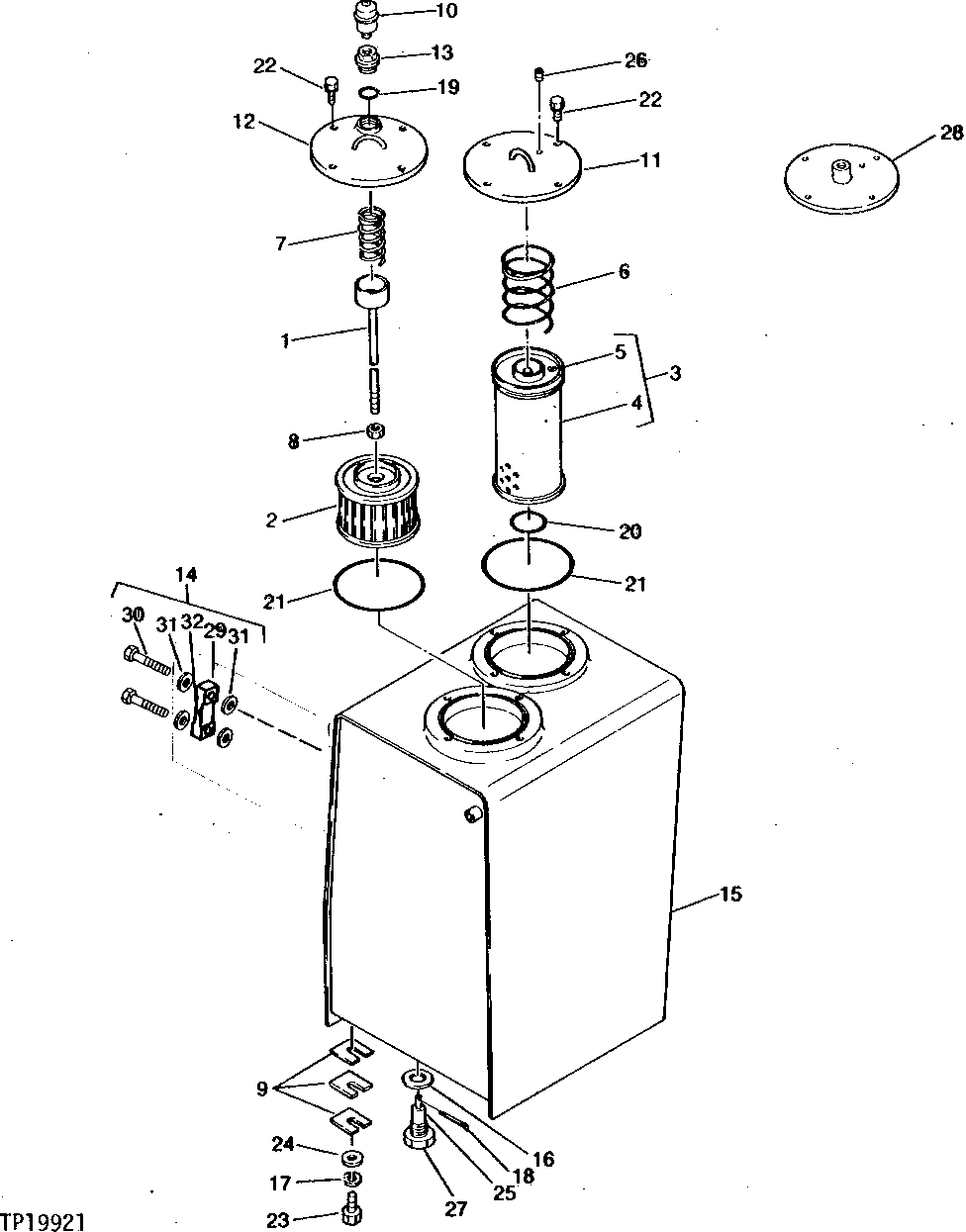

Запчасти John Deere 5 4 - HYDRAULIC RESERVOIR 2160 - MAIN HYDRAULIC SYSTEM 21

1

AT110064

ROD

1шт.

2

AT110005

STRAINER

1шт.

3

STRAINER

(SUB T110029 AND T110030 FOR AT11006)

1шт.

4

T110029

FILTER ELEMENT

(SUB FOR AT110006 ALONG WITH T110030)

1шт.

5

T110030

HYDRAULIC PRESSURE VALVE

(SUB FOR AT110006 ALONG WITH T110029)

1шт.

6

T110031

SPRING

1шт.

7

T110032

SPRING

1шт.

8

14M7274

NUT

M10

1шт.

9

T110080

SPACER

2шт.

10

T110919

BREATHER

1шт.

11

AT110069

COVER

(FOR USE WITHOUT THIRD FUNCTION VALVE)

1шт.

12

AT110442

COVER

1шт.

13

T111089

CAP

1шт.

14

AT212090

GAUGE

(SUB FOR T110920 OR T211828)

1шт.

15

AT110443

HYDRAULIC RESERVOIR

1шт.

16

T110409

WASHER

1шт.

17

12M7068

LOCK WASHER

14 MM

4шт.

18

11M7058

COTTER PIN

2 X 25 MM, (SUB FOR T110418) (SUB FOR 11M7009)

1шт.

19

T110922

O-RING

1шт.

20

CH17154

PACKING

1шт.

21

CH14695

PACKING

2шт.

22

12M7066

LOCK WASHER

10 MM

8шт.

19M7166

CAP SCREW

M10 X 20

8шт.

23

T110806

BOLT

4шт.

24

T110615

WASHER

4шт.

25

T110629

MAGNET

1шт.

26

T110630

FITTING

1шт.

27

T110631

DRAIN PLUG

1шт.

28

T111650

COVER

(FOR USE WITH THIRD FUNCTION VALVE)

1шт.

29

GAUGE

1шт.

30

BOLT

T114045 USE IF AVAILABLE

2шт.

31

T114046

GASKET

4шт.

32

TUBE

1шт.
