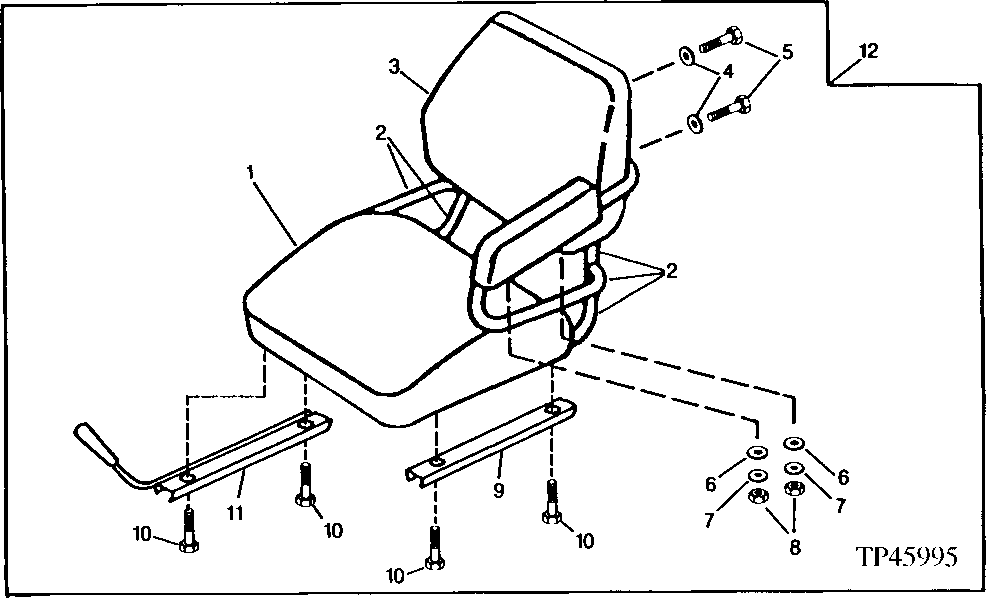

Запчасти John Deere 5 5 - SEAT ASSEMBLY WITH ARM 1821 - OPERATORS STATION 18

1

T114293

CUSHION

(SUB FOR T114180)

1шт.

2

FRAME

(SUB AT111874) SEAT

1шт.

3

T114294

SEAT BACK

(SUB FOR T114182)

1шт.

4

12M7006

LOCK WASHER

6 MM

4шт.

5

19M8425

CAP SCREW

M6 X 16

4шт.

6

CH10525

WASHER

2шт.

7

12M7006

LOCK WASHER

6 MM

2шт.

8

14M7272

NUT

M6

2шт.

9

T114181

CHANNEL

(LEFT)

1шт.

10

T114193

CAP SCREW

4шт.

11

T114179

CHANNEL

(RIGHT) (INCLUDES ADJUSTER HANDLE)

1шт.

12

AT111874

SEAT

(SUB FOR T114171)

1шт.
