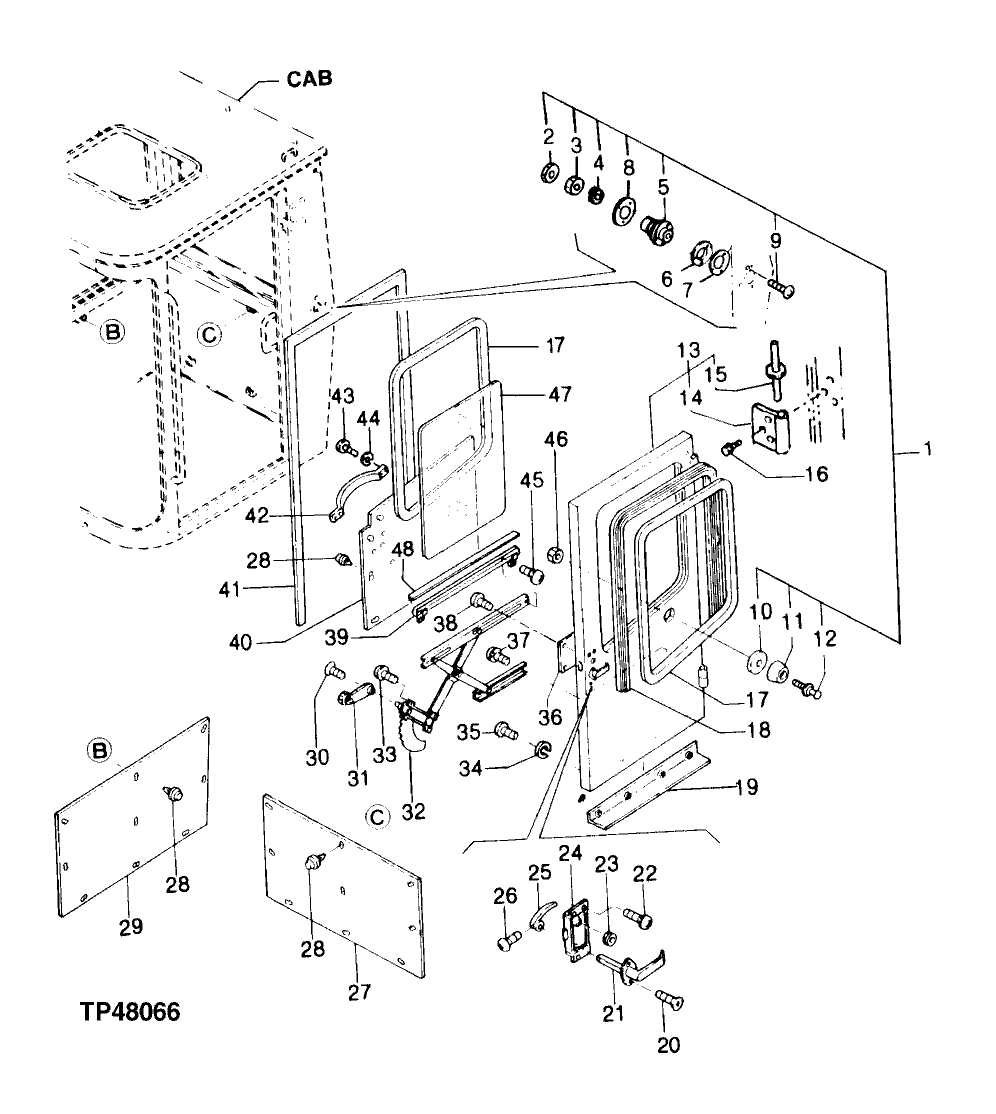

Запчасти John Deere 5 4 - CAB 1810 - OPERATORS STATION 18

1

AT110060

CATCH

1шт.

2

KNOB

(T111021 - NO LONGER AVAILABLE)

1шт.

3

14M7272

NUT

M6, (SUB FOR CH17809)

3шт.

4

12M7064

LOCK WASHER

5 MM

3шт.

5

CATCH

( T111018 NO LONGER AVAILABLE)

1шт.

6

T111064

WASHER

1шт.

7

T111065

WASHER

1шт.

8

PACKING

(T111019 - NO LONGER AVAILABLE)

1шт.

9

CH12037

SCREW

3шт.

10

T110147

WASHER

1шт.

11

CUSHION

(T111020 - NO LONGER AVAILABLE)

1шт.

12

T110166

CATCH

1шт.

13

AT110425

DOOR

1шт.

14

AT110427

HINGE

2шт.

15

T111063

PIN

2шт.

16

12M7066

LOCK WASHER

10 MM

6шт.

19M7166

CAP SCREW

M10 X 20

6шт.

17

T110174

ISOLATOR

2шт.

18

T110160

CHANNEL

1шт.

19

AT110426

COVER

1шт.

20

T111320

SCREW

2шт.

21

T110155

HANDLE

1шт.

22

M801342

SCREW WITH WASHER

4шт.

23

T110024

GROMMET

(SUB FOR T111410)

1шт.

24

AT110487

GUARD

1шт.

25

T110023

HANDLE

1шт.

26

CH12034

SCREW

1шт.

27

T111067

SHIELD

1шт.

28

T110173

CLIP

28шт.

29

T111066

SHIELD

1шт.

30

T111320

SCREW

1шт.

31

T110162

HANDLE

1шт.

32

T110161

REGULATOR

1шт.

33

T110455

SCREW WITH WASHER

4шт.

34

12M7064

LOCK WASHER

5 MM

4шт.

35

CH10620

SCREW

4шт.

36

T110148

COVER

1шт.

37

T110455

SCREW WITH WASHER

2шт.

38

T111315

SCREW WITH WASHER

4шт.

39

T110164

CHANNEL

1шт.

40

T110168

PANEL

1шт.

41

T110158

ISOLATOR

1шт.

42

T110156

HANDLE

1шт.

43

T111317

SCREW

4шт.

44

12M7064

LOCK WASHER

5 MM

4шт.

45

T110454

SCREW WITH WASHER

2шт.

46

T110167

NUT

1шт.

47

T110150

WINDOWPANE

1шт.

48

T110163

PAD

1шт.
