Запчасти John Deere 5 4 - GAUGES, SWITCHES AND LIGHTS 1674 - ELECTRICAL SYSTEM 16

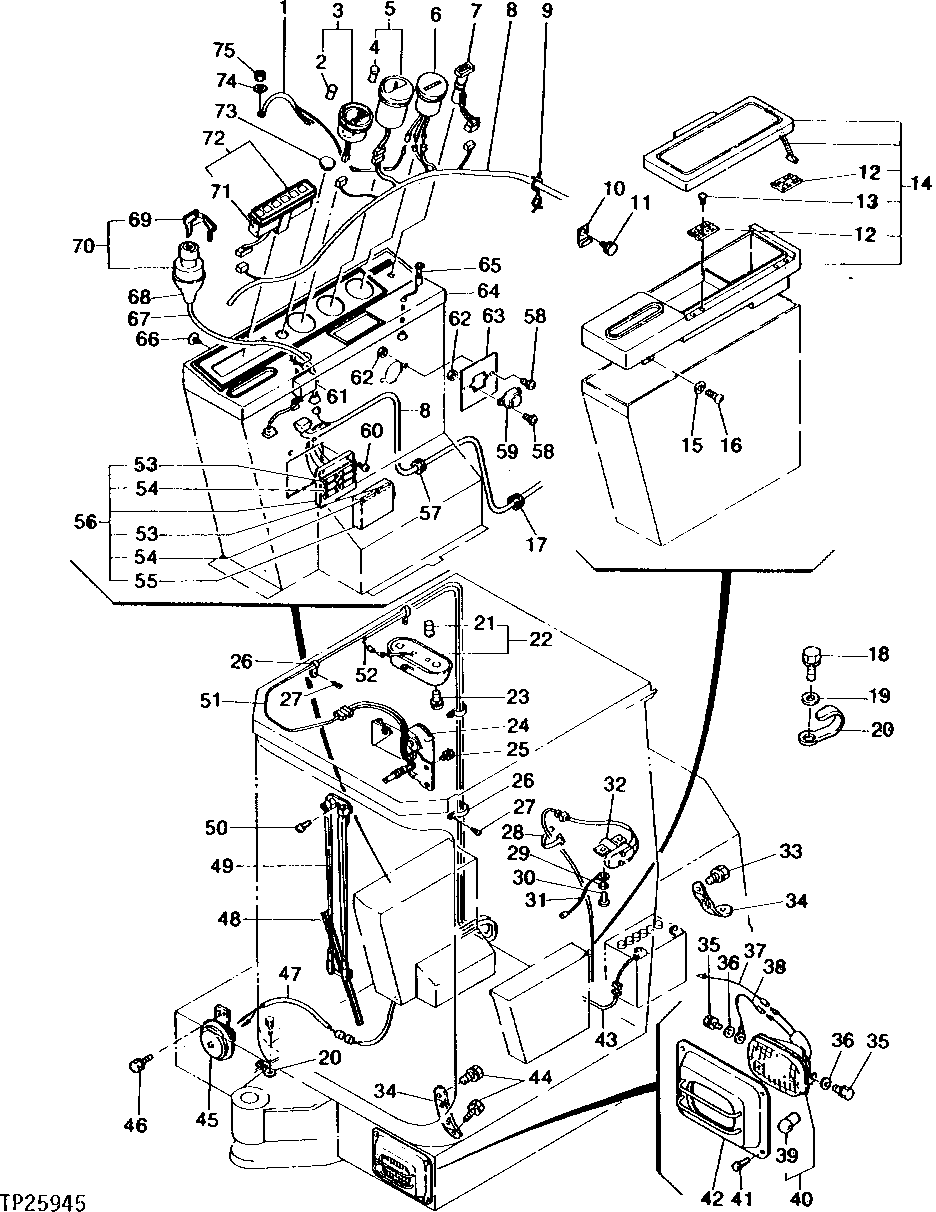

Схема запчастей John Deere 5 - 4 - GAUGES, SWITCHES AND LIGHTS 1674 - ELECTRICAL SYSTEM 16

Артикул

Название

Примечание

Количество

46

CH13781

BOLT

2шт.

47

T111184

WIRE

1шт.

48

TY16302

WIPER BLADE

(SUB FOR T110387) (ALSO ORDER TY16312) (UNITS WITH CAB)

1шт.

49

T110528

ARM

(UNITS WITH CAB)

1шт.

50

T111377

SCREW

(UNITS WITH CAB)

1шт.

51

T110097

WIRING LEAD

(UNITS WITH CAB) (MOTOR)

1шт.

52

T110090

WIRING LEAD

(UNITS WITH CAB)

1шт.

53

AT39227

FUSE

(SUB FOR CH11322 OR T116143) (15A) LIGHTS, HEATER, SAFETY RELAY

3шт.

54

CH11321

FUSE

(10A) MAGNETIC RELAY, BUZZER-TIMER, ALTERNATOR, GAUGES

5шт.

55

T110389

COVER

1шт.

56

AT110211

FUSE BOX

1шт.

57

T110622

GROMMET

1шт.

58

T110459

SCREW WITH WASHER

4шт.

59

T110992

AUDIBLE WARNING ALARM

1шт.

60

T111377

SCREW

2шт.

61

T110530

TIMER

(BUZZER)

1шт.

62

T110465

NUT

4шт.

63

T110285

BRACKET

1шт.

64

T111147

INSTRUMENT PANEL

(UNITS WITH CAB)

1шт.

T111033

PANEL

(UNITS WITHOUT CAB)

1шт.

65

T110520

SWITCH

(WIPER SWITCH) (UNITS WITH CAB)

1шт.

66

T110847

PLUG

2шт.

67

T110093

WIRING HARNESS

1шт.

68

T111336

COVER

1шт.

69

AT110583

KEY

1шт.

70

AT110584

SWITCH

(IGNITION SWITCH)

1шт.

71

T110521

BULB

(12V - 1.7W)

3шт.

72

INSTRUMENT PANEL

( AT110592 OR AT111780 NO LONGER AVAILABLE FOR SERVICE)

1шт.

73

T111146

PLUG

1шт.

74

24M7028

WASHER

1шт.

75

14M7274

NUT

M10

1шт.

Выбрано товаров: 31
