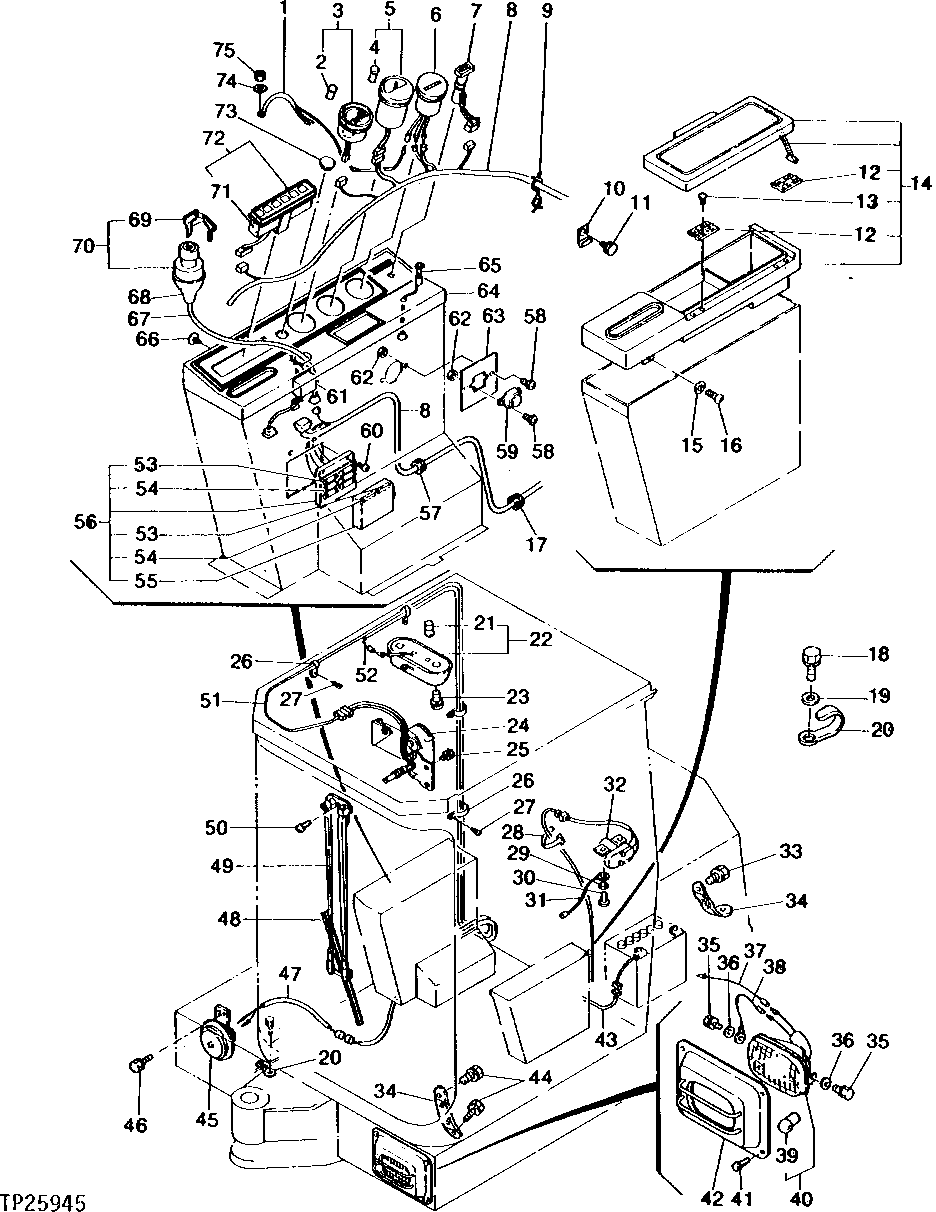

Запчасти John Deere 5 2 - GAUGES, SWITCHES AND LIGHTS 1674 - ELECTRICAL SYSTEM 16

1

T110066

WIRING HARNESS

1шт.

2

T111335

BULB

1шт.

3

AT110589

TEMPERATURE GAUGE

(ENGINE)

1шт.

4

T111335

BULB

1шт.

5

AT110008

GAUGE

(FUEL GAUGE)

1шт.

6

T110524

HOUR METER

1шт.

7

T110519

SWITCH

(LIGHTING SWITCH)

1шт.

8

T111145

WIRING HARNESS

1шт.

9

T110095

TIE BAND

1шт.

10

( CH13189 NO LONGER AVAILABLE)

1шт.

11

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

19M7964

CAP SCREW

M8 X 12

1шт.

12

T114048

HINGE

(SUB FOR T111032)

2шт.

13

T114049

SCREW

(SUB FOR T114065)

12шт.

14

INSTRUMENT PANEL

(SUB FOR AT110397) ( AT111725 NO LONGER AVAILABLE FOR SERVICE) (SUB INDIVIDUAL COMPONENTS)

1шт.

15

CH13482

WASHER

3шт.

16

T110849

SCREW WITH WASHER

3шт.

17

T110485

GROMMET

1шт.

18

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

2шт.

24M7296

WASHER

10.500 X 30 X 2.500 MM, (SUB FOR T110607)

2шт.

19

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

20

T111144

CLAMP

3шт.

21

57M6511

BULB

(SUB FOR T110016) (12V - 10W) (UNITS WITH CAB)

1шт.

22

AT110000

LAMP

(DOME) (UNITS WITH CAB)

1шт.

23

T110452

SCREW WITH WASHER

(UNITS WITH CAB)

2шт.

24

T110527

WIPER MOTOR

(WIPER MOTOR) (UNITS WITH CAB)

1шт.

25

CH13781

BOLT

(UNITS WITH CAB)

3шт.

26

T110094

TIE BAND

(UNITS WITH CAB)

12шт.

27

CH16054

SCREW

(UNITS WITH CAB)

12шт.

28

T110612

TIE BAND

1шт.

29

CH10525

WASHER

2шт.

30

M801342

SCREW WITH WASHER

2шт.

31

T111030

WIRE

1шт.

32

AT212068

RELAY

(USE T111004 UNTIL EXHAUSTED) (SUB FOR T111004) (SAFETY) (WITH 5 WIRES)

1шт.

33

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

1шт.

19M7386

CAP SCREW

M12 X 20

1шт.

34

T110624

GROUND CABLE

2шт.

35

19M8324

CAP SCREW

M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)

2шт.

24M7296

WASHER

10.500 X 30 X 2.500 MM, (SUB FOR T110607)

2шт.

36

24M7028

WASHER

10.500 X 20 X 2 MM

2шт.

37

WIRING LEAD

( T110096 NO LONGER REQUIRED)

1шт.

38

T110067

WIRING LEAD

1шт.

39

CH15208

BULB

1шт.

40

AT110210

LAMP

(WORK)

1шт.

41

12M7066

LOCK WASHER

10 MM

4шт.

19M7166

CAP SCREW

M10 X 20

4шт.

42

AT110388

COVER

1шт.

43

T110092

LINK

1шт.

44

19M7783

SCREW

M10 X 16, (SUB FOR T110460)

2шт.

45

T110480

HORN

1шт.
