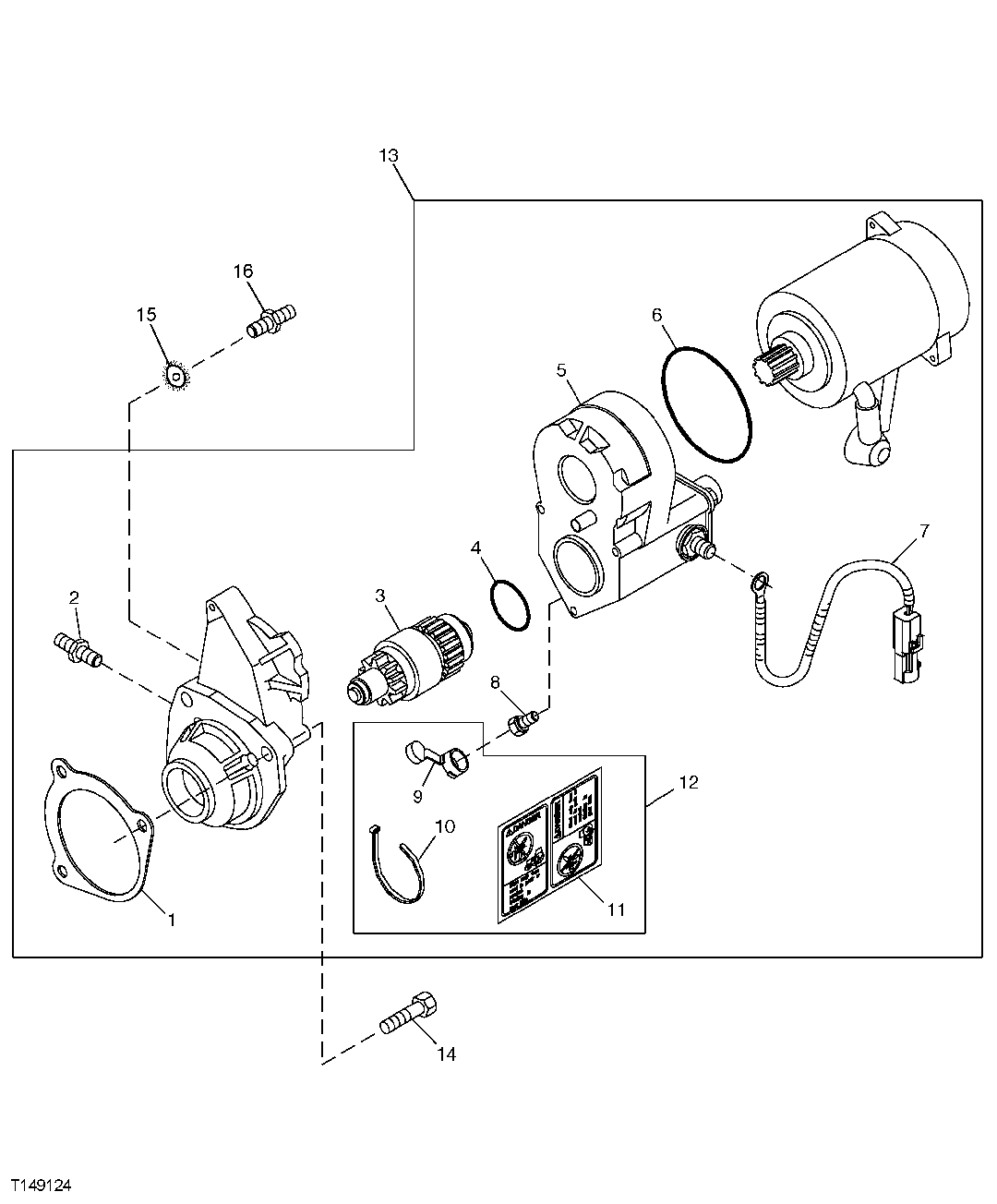

Запчасти John Deere 30LCR 52 - 3023 STARTING MOTOR (DENSO) 0422A STARTING MOTOR AND FASTENINGS 4045TT050 4045TT050

1

R53108

Gasket

1шт.

2

R136052

Stud

1шт.

3

RE70487

Clutch

1шт.

4

R135510

O-Ring

1шт.

5

RE70486

Switch

1шт.

6

R135509

O-Ring

1шт.

7

RE505400

Battery Cable

1шт.

8

RE71256

Screw With Washer

1шт.

9

Cover

ORDER RE70756

1шт.

10

R96703

Tie Band

1шт.

11

T146102

Label

1шт.

12

RE70756

Cover Kit

1шт.

13

RE506105

Starter Motor Kit

12V, MARKED RE504244; ALSO ORDER AT196314

1шт.

SE501853

Starter Motor Reman

12V DENSO, REMAN FOR RE50 6105; ALSO ORDER AT196314

1шт.

14

19M7786

Screw

M10 X 30

2шт.

15

12M7033

Lock Washer

10.500 mm

1шт.

16

R503419

Stud

1шт.
