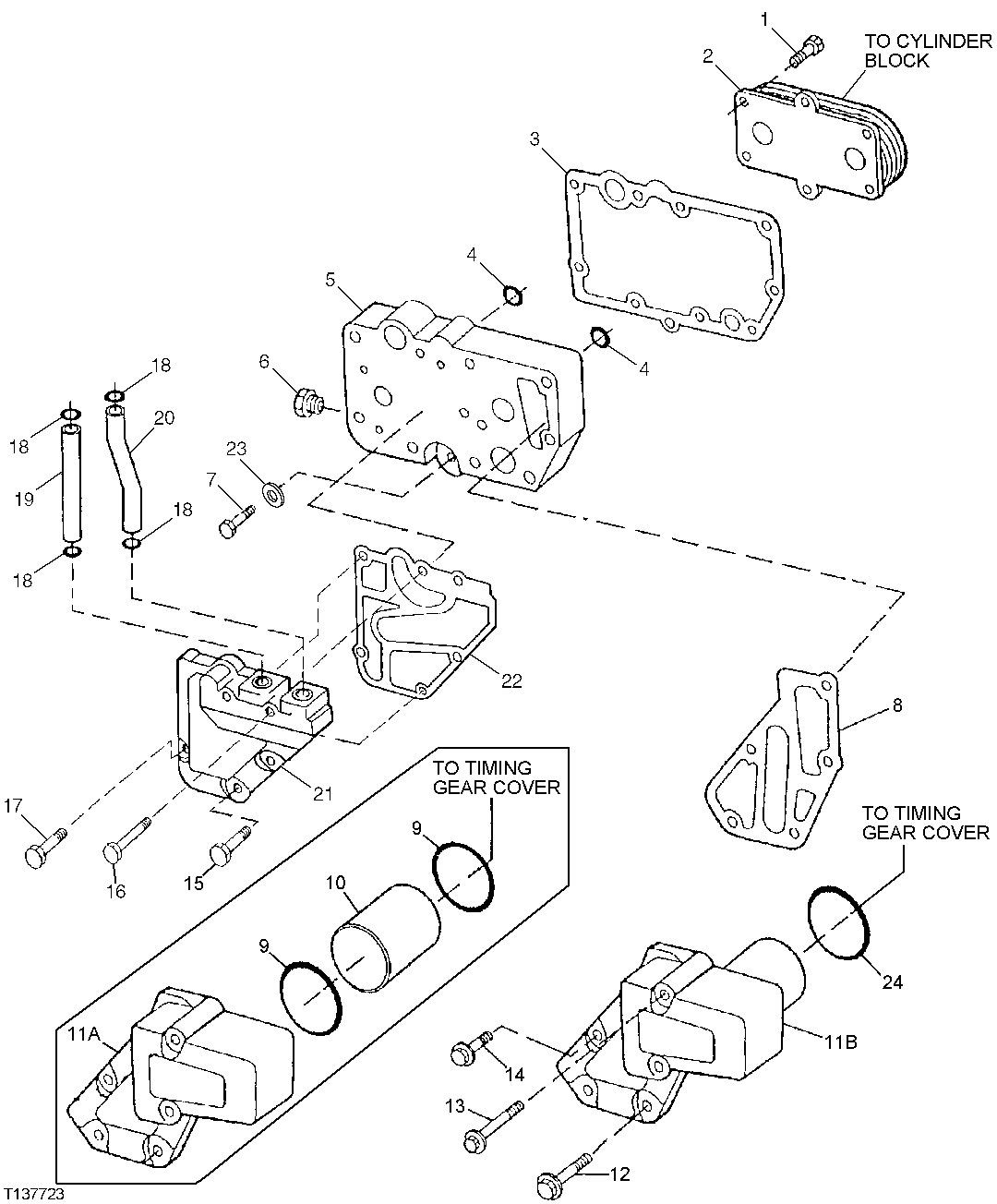

Запчасти John Deere 30LCR 48 - ENGINE OIL COOLER 0419A OIL COOLER 4045TT050 4045TT050

1

RE67231

Screw

(A) M6 X 16

6шт.

2

RE560753

Oil Cooler

(B) SUB FOR RE59296

1шт.

RE522820

Oil Cooler

PRESSURE TESTED ASSEMBLY

1шт.

3

R123501

Gasket

1шт.

4

T122075

O-Ring

2шт.

5

R123471

Housing

1шт.

6

RE46686

Fitting

METRIC

1шт.

RE56323

Fitting Plug

SAE

1шт.

7

RE46685

Fitting Plug

1шт.

8

R501428

Gasket

1шт.

9

R61105

O-Ring

2шт.

10

R115252

Bushing

1шт.

11A

R135177

Adapter Fitting

SUB R502811

1шт.

11B

R502811

Adapter Fitting

1шт.

12

19M7802

Screw

M8 X 65

2шт.

13

19M7970

Screw

M8 X 100

2шт.

14

RE67238

Screw

(A) M8 X 20

1шт.

15

19M7802

Screw

M8 X 65

3шт.

16

19M7913

Screw

M8 X 90

2шт.

17

RE67238

Screw

(A) M8 X 20

1шт.

18

R72328

O-Ring

4шт.

19

R135270

Tube

1шт.

20

R135271

Tube

1шт.

21

R135916

Adapter Fitting

1шт.

22

R123504

Gasket

1шт.

23

51M7043

O-Ring

15.300 X 2.200 mm

1шт.

24

R504734

O-Ring

1шт.
