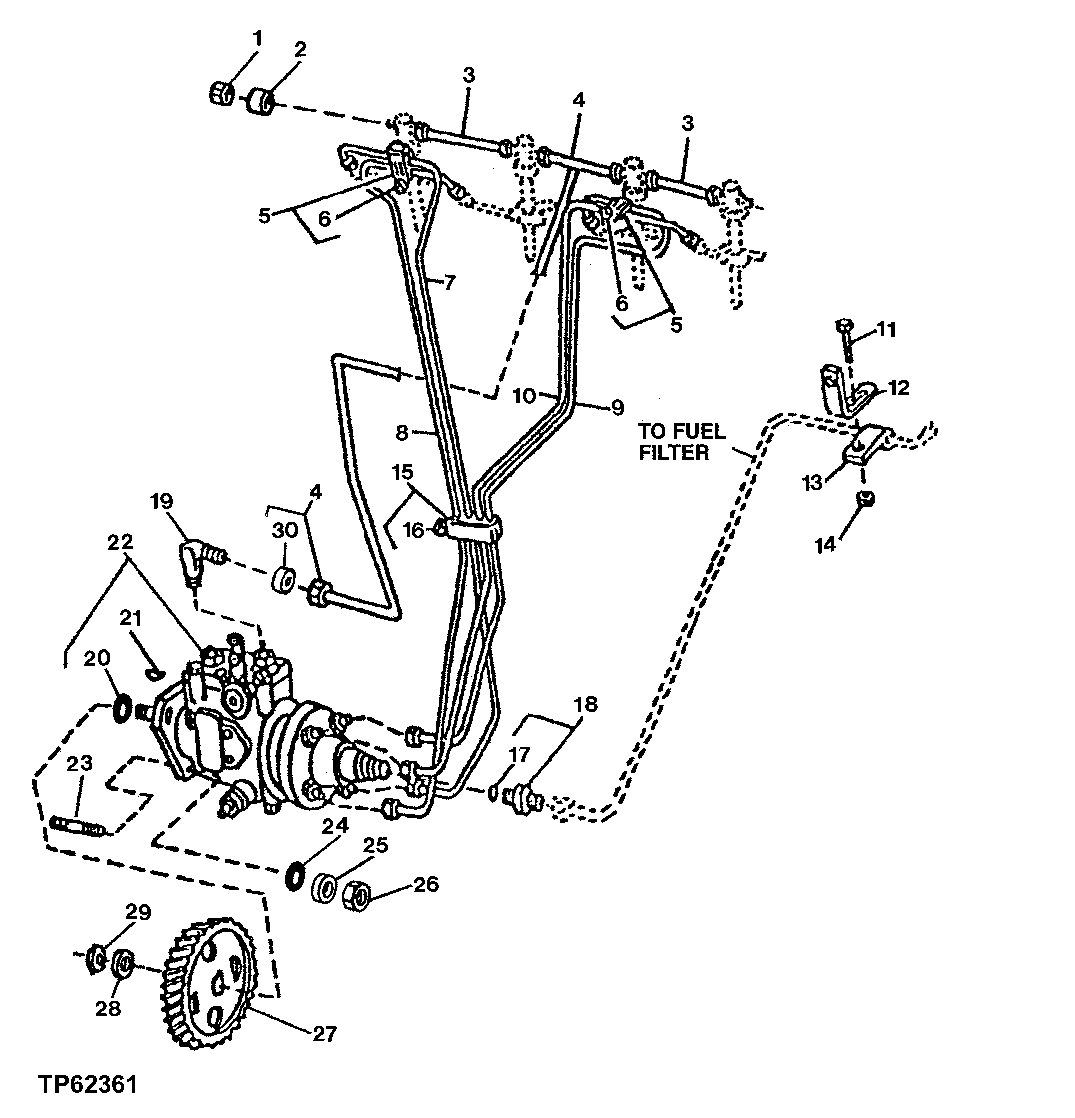

Запчасти John Deere 30LCR 39 - FUEL INJECTION SYSTEM AND FUEL INJECTION PUMP 0413A FUEL INJECTION SYSTEM 4045TT050 4045TT050

1

AR85519

Plug

1шт.

2

R123593

Tube Nut

2шт.

3

RE68748

Tube

2шт.

R123593

Tube Nut

2шт.

4

RE70848

Fuel Line

LEAK-OFF

1шт.

5

RE19797

Clamp

2шт.

6

19M7923

Cap Screw

M6 X 12

2шт.

7

RE59447

Fuel Line

NO. 1

1шт.

8

RE59448

Fuel Line

NO. 2

1шт.

9

RE59449

Fuel Line

NO. 3

1шт.

10

RE59450

Fuel Line

NO. 4

1шт.

11

19M7865

Screw

M8 X 16 NO. 2

1шт.

12

R116116

Bracket

1шт.

13

T14050

Clamp

1шт.

14

14M7298

Flange Nut

M8

1шт.

15

RE19799

Clamp

1шт.

16

19M7923

Cap Screw

M6 X 12

1шт.

17

51M7040

O-Ring

9.300 X 2.200 mm

1шт.

18

RE60029

Adapter Fitting

1шт.

19

R67364

Elbow Fitting

1шт.

20

R502076

O-Ring

1шт.

21

26H10

Shaft Key

5/32" X 5/8"

1шт.

22

RE502378

Fuel Injection Pump

(A)

1шт.

SE500683

Fuel Injection Pump Reman

REMAN FOR RE502378

1шт.

23

R116386

Stud

(60 TEETH)

3шт.

24

T27860

Washer

3шт.

25

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

26

14M7273

Nut

M8

3шт.

27

R132267

Gear

1шт.

28

R132874

Washer

1шт.

29

R91360

Nut

1шт.

30

R51936

Sealing Washer

3шт.
