Запчасти John Deere 30LCR 28 - CYLINDER BLOCK AND MAIN BEARING CAP 0404A CYLINDER BLOCK 4045TT050 4045TT050

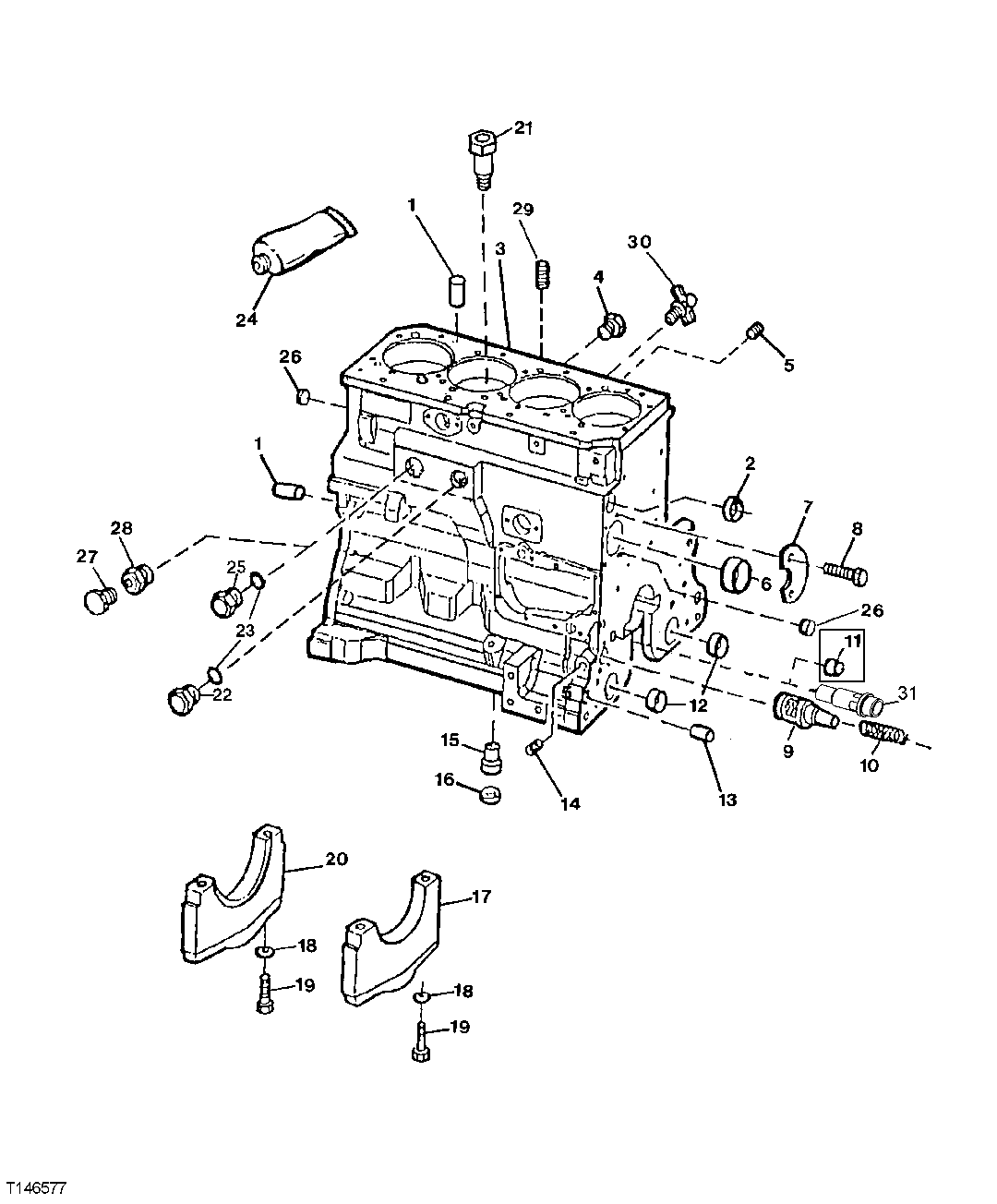

Схема запчастей John Deere 30LCR - 28 - CYLINDER BLOCK AND MAIN BEARING CAP 0404A CYLINDER BLOCK 4045TT050 4045TT050

Артикул

Название

Примечание

Количество

1

R48685

Dowel Pin

4шт.

2

R116466

Plug

1шт.

3

Cylinder Block

(MARKED R115081 ) (ORDER RE516099)

1шт.

4

R55233

Pipe Plug

COOLANT DRAIN

1шт.

5

R104592

Pipe Plug

5шт.

6

R119874

Bushing

CAMSHAFT

1шт.

7

R132518

Plate

1шт.

8

19M8999

Screw

M8 X 25

2шт.

9

R121043

Valve

ENGINE OIL BY-PASS

1шт.

10

R111137

Spring

1шт.

11

R26493

Bushing

OIL PRESSURE REGULATING

1шт.

12

R115299

Bushing

BALANCER SHAFT

6шт.

13

R26650

Dowel Pin

2шт.

14

15H623

Pipe Plug

3/8"

1шт.

15

R115390

Bushing

1шт.

16

R75892

O-Ring

1шт.

17

R114241

Bearing Cap

4шт.

18

T20168

Washer

10шт.

19

T23474

Cap Screw

10шт.

20

R132186

Bearing Cap

1шт.

21

R131182

Orifice

4шт.

22

R39741

Drain Plug

1шт.

23

U13639

O-Ring

2шт.

24

PM38655

Sealant

(SUB FOR TY6304)(LIQUID GASKET)

1шт.

25

R39741

Drain Plug

WITHOUT CAB HEATER

1шт.

26

T18891

Plug

2шт.

27

RE46685

Fitting Plug

WITHOUT CAB HEATER

1шт.

28

R123616

Plug

WITH CAB HEATER

1шт.

29

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 1 5H624)(WITHOUT TURBOCHARGER)

1шт.

30

AT13740

Drain Valve

1шт.

31

RE505501

Bleed Valve

(OIL PRESSURE REGULATING)

1шт.

Выбрано товаров: 31
