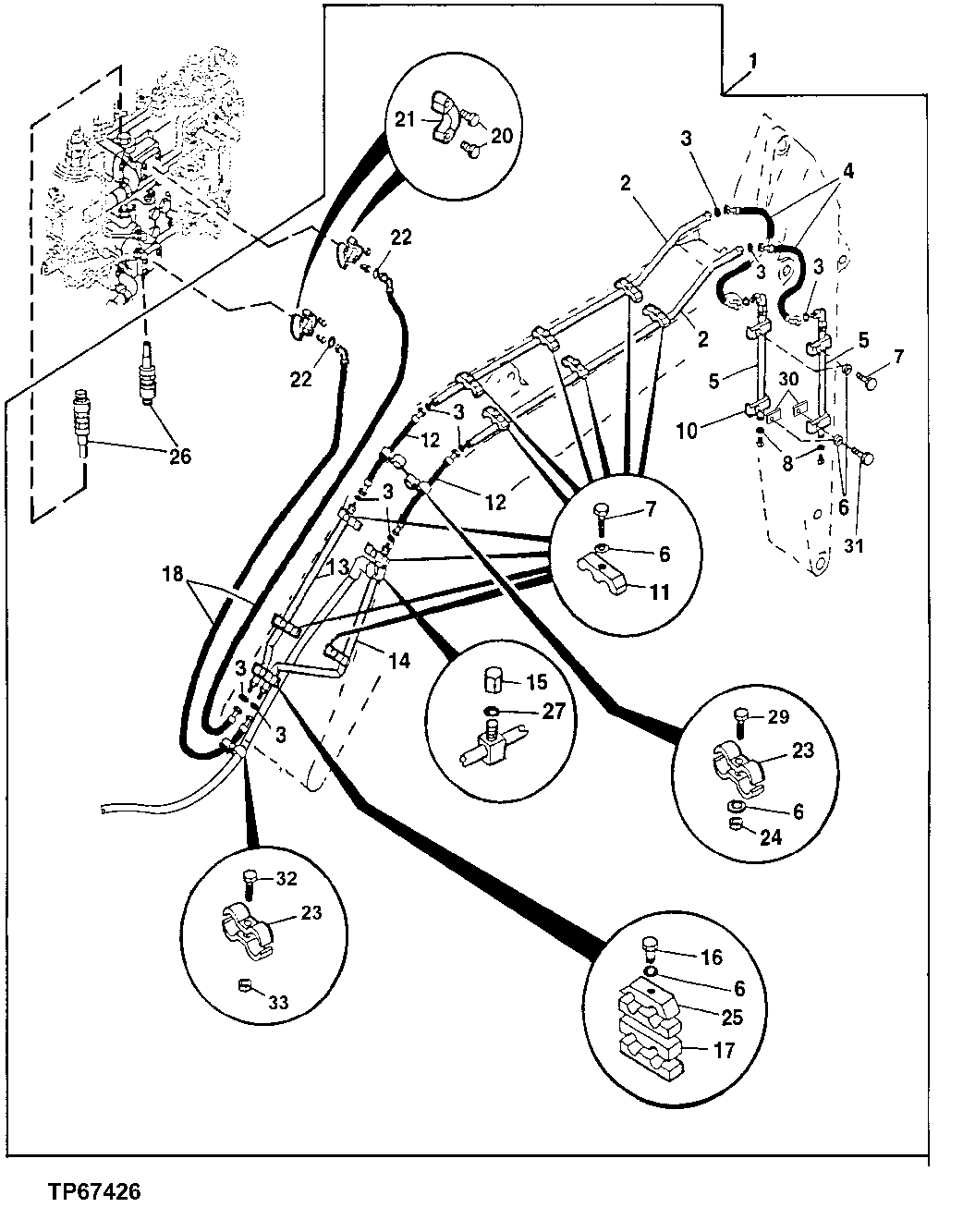

Запчасти John Deere 30LCR 375 - AUXILIARY HYDRAULIC PLUMBING 3360 Hydraulic System

1

Kit

WHOLEGOODS (AUXILIARY PLUMBING) ( AT181 916 NO LONGER AVAILABLE) SUB COMPONENTS)

1шт.

2

Oil Tube

( AT159786 NLA W/ ASSY) /AUXILIARY, FRONT BOOM/

2шт.

3

O-Ring

( T76938 NLA W/ ASSY)

9шт.

4

AT182115

Hydraulic Hose

(3.75 M ARM (2 USED)

2шт.

AT182115

Hydraulic Hose

(3.1 M ARM (2 USED)

2шт.

5

Oil Line

( AT159934 NLA W/ ASSY) /AUXILIARY, ARM/

2шт.

6

12H301

Lock Washer

1/2" /JDS 12 MEDIUM SPRING/

17шт.

7

Cap Screw

( 19M7753 NLA)

12шт.

8

O-Ring

( T78612 NLA W/ ASSY)

2шт.

10

4190127

Clamp

(SUB FOR TH108313)

4шт.

11

4153488

Clamp

(SUB FOR TH103780)

10шт.

12

Hydraulic Hose - Fabricate

( AT159782 NLA W/ ASSY ) /AUXILIARY, MIDDLE/

2шт.

13

AT182039

Oil Line

/AUXILIARY/

1шт.

14

AT182040

Oil Line

/AUXILIARY/ (3.75 M LENGTH ARM - REQUIRES (2) AT182039 HOSE)

1шт.

15

Fitting

(FLAT FACE SEAL) ( 38H1419 NLA) ( SUB FOR 38H1418, THIS APPLICATION)

1шт.

16

Cap Screw

( 19M7758 NLA)

1шт.

17

Clamp

( 4249704 NLA W/ ASSY) (SUB FOR AT122946)

1шт.

18

Hydraulic Hose

( AT182213 NLA W/ ASSY) /AUXILIARY, REAR/

2шт.

20

Cap Screw

(USE EXISTING CAPSCREW)

8шт.

21

Flange Fitting

( H61354 NLA W/ ASSY) /SPLIT, HALF CLAMP/

4шт.

22

O-Ring

( T78313 NLA W/ ASSY)

2шт.

23

Clamp

( 4202103 NLA W/ ASSY) ( SUB FOR TH108302 RUBBER)

4шт.

24

14M7275

Nut

M12

2шт.

25

Clamp

( 4189860 NLA) (SUB FOR TH108314)

1шт.

26

Pressure Relief Valve

( 4282718 NLA W/ ASSY) (SUB FOR AT155693)

2шт.

27

Back-Up Ring

( T77858 NLA W/ ASSY) (SUB F OR T59014, THIS APPLICATION)

1шт.

29

19M7361

Cap Screw

M12 X 50

2шт.

30

T167161

Spacer

2шт.

31

19M8122

Cap Screw

M12 X 85

2шт.

32

19M7361

Cap Screw

M12 X 50

2шт.

33

14M7367

Lock Nut

M12

2шт.
