Запчасти John Deere 30LCR 374 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3360 Hydraulic System

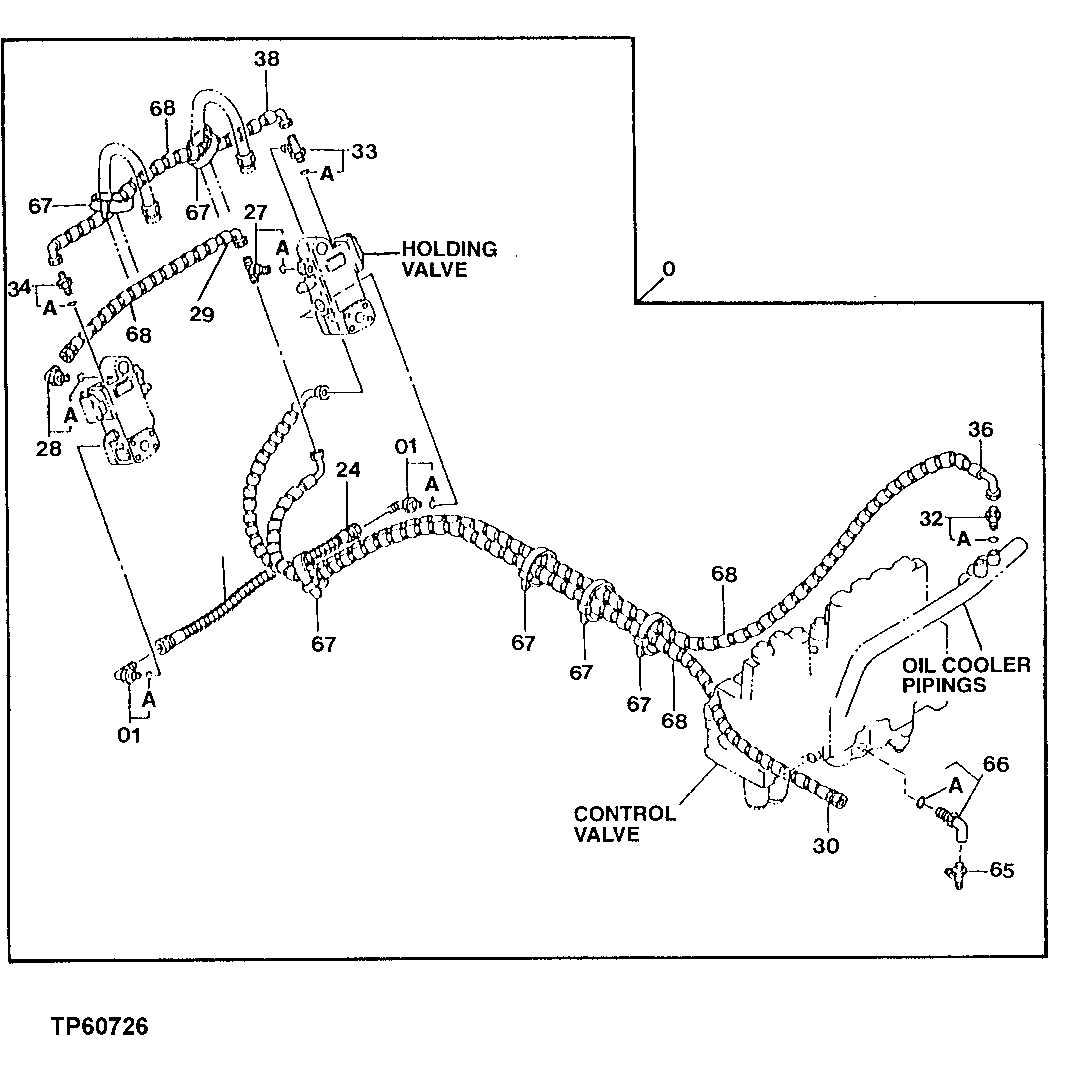

Схема запчастей John Deere 30LCR - 374 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3360 Hydraulic System

Артикул

Название

Примечание

Количество

0

Kit

AT182726 NO LONGER AVAILABLE (BOOM CYLI NDER LOAD LOWERING VALVE) (CONTAINS ALL I TEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

4154670

Elbow Fitting

SUB FOR TH100951

2шт.

1A

M800650

Packing

1шт.

24

4299672

Hydraulic Hose

SUB FOR AT173716

1шт.

25

4298761

Hose Guard

SUB FOR AT173717

1шт.

27

4208911

Tee Fitting

SUB FOR AT126456

1шт.

27A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

28

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

1шт.

28A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

29

4370731

Hydraulic Hose

SUB FOR AT217811, SERVICE F OR AT182727 ALONG W/AT213831

1шт.

30

9378279

Hydraulic Hose

9159434 NO LONGER AVAILABLE SUB FOR AT217 831 SERVICE FOR AT182731 ALONG W/AT213831

1шт.

4327315

Hose Guard

4327293 NO LONGER AVAILABLE

1шт.

32

4261938

Fitting

SUB FOR AT154285

1шт.

32A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

33

4205363

Tee Fitting

SUB FOR AT126362

1шт.

33A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

34

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

34A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

36

4374924

Hydraulic Hose

SUB FOR AT217826, SERVICE F OR AT182733 ALONG W/AT213831

1шт.

38

4370730

Hydraulic Hose

9153114 NO LONGER AVAILABLE (SUB FOR AT217 810 SERVICE FOR AT182733 ALONG W/AT213831)

1шт.

4327315

Hose Guard

4327293 NO LONGER AVAILABLE

1шт.

65

4246672

Tee Fitting

SUB FOR AT200991

1шт.

66

4208913

Adapter Fitting

SUB FOR AT126458

1шт.

66A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

67

H77698

Tie Band

11шт.

68

4327315

Hose Guard

4327293 NO LONGER AVAI LABLE SUB FOR AT213831

4шт.

Выбрано товаров: 26
