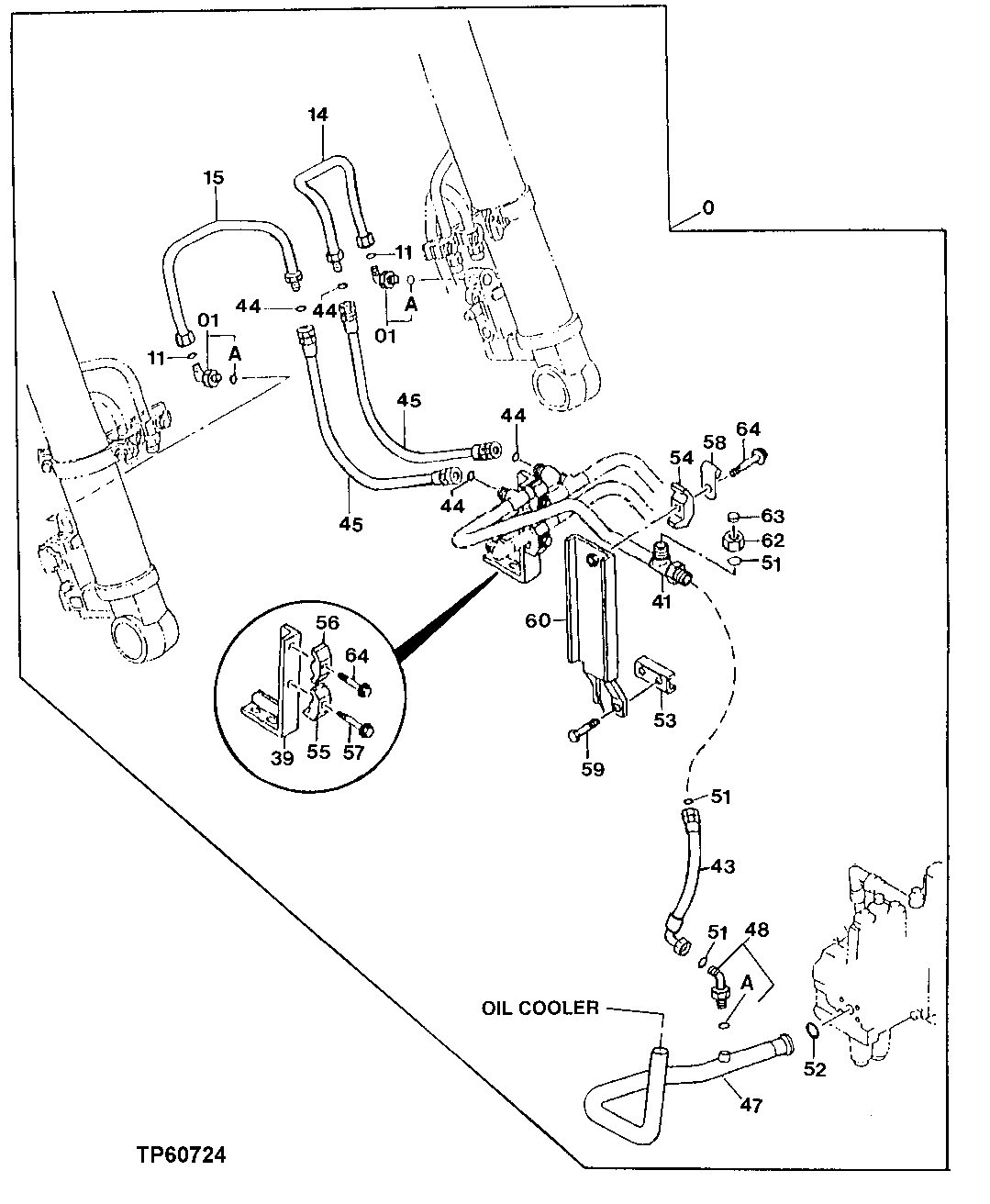

Запчасти John Deere 30LCR 372 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3360 Hydraulic System

0

Kit

AT182726 NO LONGER AVAILABLE BOOM CY LINDER LOAD LOWERING VALVE, CONTAINS A LL ITEMS ON THIS PAGE - ADDITIONAL COM PONENTS LISTED ON THE FOLLOWING PAGES

1шт.

1

A853388

Elbow Fitting

SUB FOR TH108325 OR 4198799

2шт.

1A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

11

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

14

8060460

Oil Line

SUB FOR AT173721

1шт.

15

8060462

Oil Line

SUB FOR AT173722

1шт.

39

9732450

Support

SUB FOR AT173723

1шт.

41

7032099

Oil Line

SUB FOR AT217866

1шт.

43

4374922

Hydraulic Hose

SUB FOR AT217825

1шт.

44

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

4шт.

45

4301059

Hydraulic Hose

SUB FOR AT173727

2шт.

47

8066925

Oil Tube

SUB FOR AT217892

1шт.

48

4205391

Elbow Fitting

SUB FOR AT127606

1шт.

48A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

51

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

3шт.

52

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

1шт.

53

9743377

Channel

SUB FOR AT214402

1шт.

54

4190127

Clamp

SUB FOR TH108313

1шт.

55

4190126

Clamp

SUB FOR TH109830

1шт.

56

4189860

Clamp

SUB FOR TH108314

1шт.

57

19M8348

Cap Screw

M12 X 65

1шт.

58

R73384

Clamp

SUB FOR TH108597 OR 4190253

1шт.

59

19M8011

Cap Screw

M12 X 30

2шт.

60

8065622

Bracket

SUB FOR AT214378

1шт.

62

38H1356

Fitting

1шт.

63

4189094

Fitting Plug

1шт.

64

19M7753

Cap Screw

M12 X 70

2шт.
