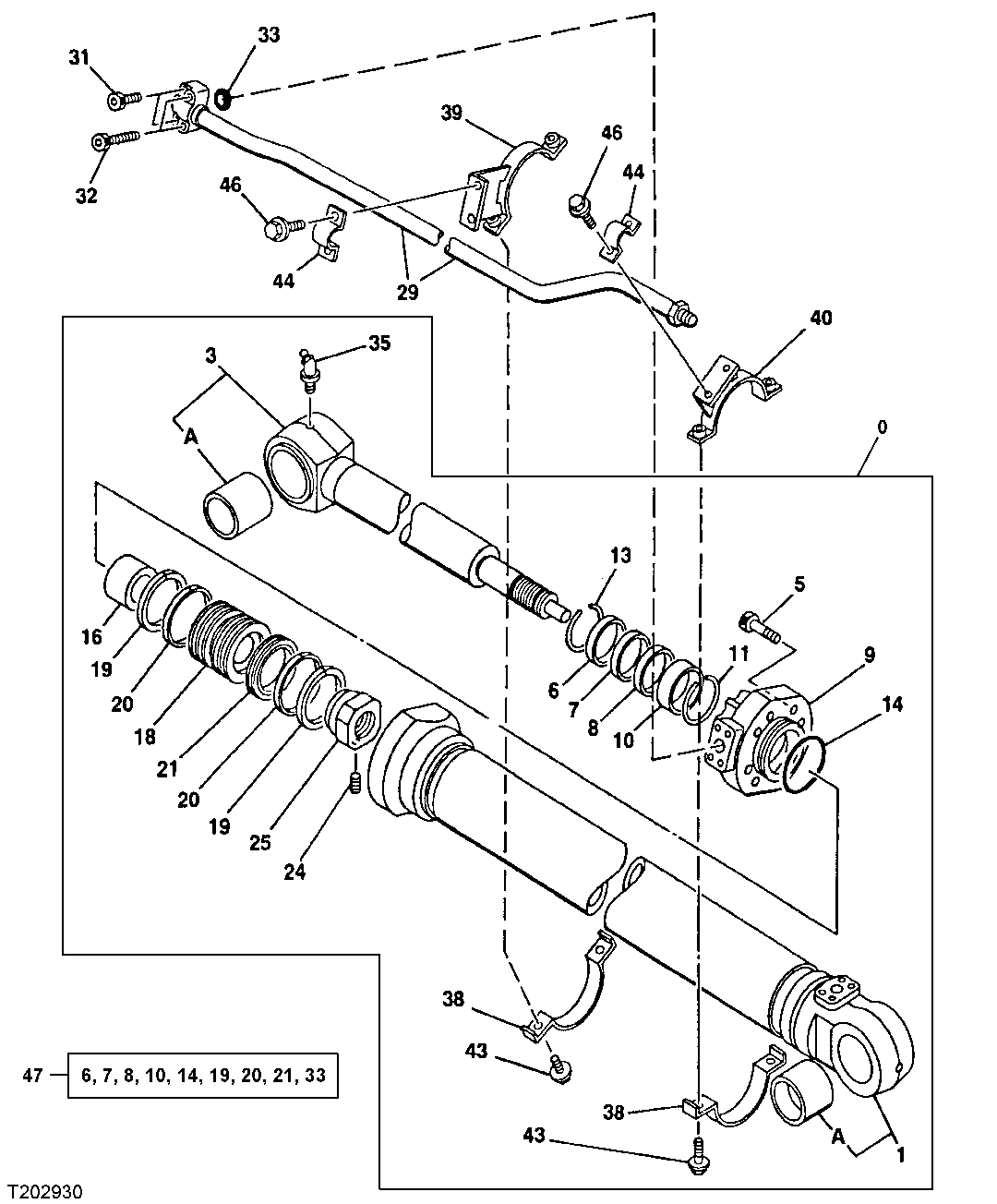

Запчасти John Deere 30LCR 365 - Arm Cylinder 3360 Hydraulic System

0

9264696

Hydraulic Cylinder

SUB FOR AT154865, 9178500 OR AT264194 Remanufactured Arm

1шт.

1

9178501

Tube

SUB FOR AT178705

1шт.

1A

3031788

Bushing

SUB FOR TH110045

1шт.

3

4645898

Rod

SUB FOR AT154810 AND 7021734

1шт.

3A

3031788

Bushing

SUB FOR TH110045

1шт.

5

19M8630

Screw

M24 X 80

8шт.

6

AT264277

Seal

SUB FOR AT181247 OR 4348207

1шт.

7

AT264398

Seal

SUB FOR TH110049

1шт.

8

AT264279

Ring

1шт.

9

1023339

Hydr. Cylinder Rod Guide

SUB FOR AT181245, AT178706 OR AT217721

1шт.

10

AT264237

Bushing

SUB FOR AT131414

1шт.

11

4267139

Snap Ring

SUB FOR AT130817

1шт.

13

4369509

Ring

SUB FOR AT181248

1шт.

14

AT264274

O-Ring

SUB FOR AT159582 OR 4267138

1шт.

16

4244049

Ring

SUB FOR AT154705

1шт.

18

3049760

Piston

SUB FOR AT154666

1шт.

19

AT264397

Ring

SUB FOR TH110033

2шт.

20

AT264266

Wear Ring

SUB FOR AT154718

2шт.

21

AT264297

Seal

SUB FOR AT218148

1шт.

24

4201806

Set Screw

SUB FOR TH110066

1шт.

25

3046744

Nut

SUB FOR AT154659

1шт.

29

8052586

Line

SUB FOR AT154842

1шт.

31

19M8341

Screw

M12 X 45

2шт.

32

19M8444

Screw

M12 X 60

2шт.

33

AT264324

O-Ring

SUB FOR TH100044

1шт.

35

T116334

Lubrication Fitting

1шт.

38

3049761

Clamp

SUB FOR AT154667

2шт.

39

8046730

Clamp

SUB FOR AT154820

1шт.

40

8046731

Clamp

SUB FOR AT154821

1шт.

43

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

44

4194152

Clamp

SUB FOR TH110029

2шт.

46

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

47

AT264433

Seal Kit

NLA, ORDER 9178284

1шт.

48

9178284

Seal Kit

INCLUDES AT264277, AT264398, AT264279, AT264274 AND AT264297 Not Illustrated

1шт.
