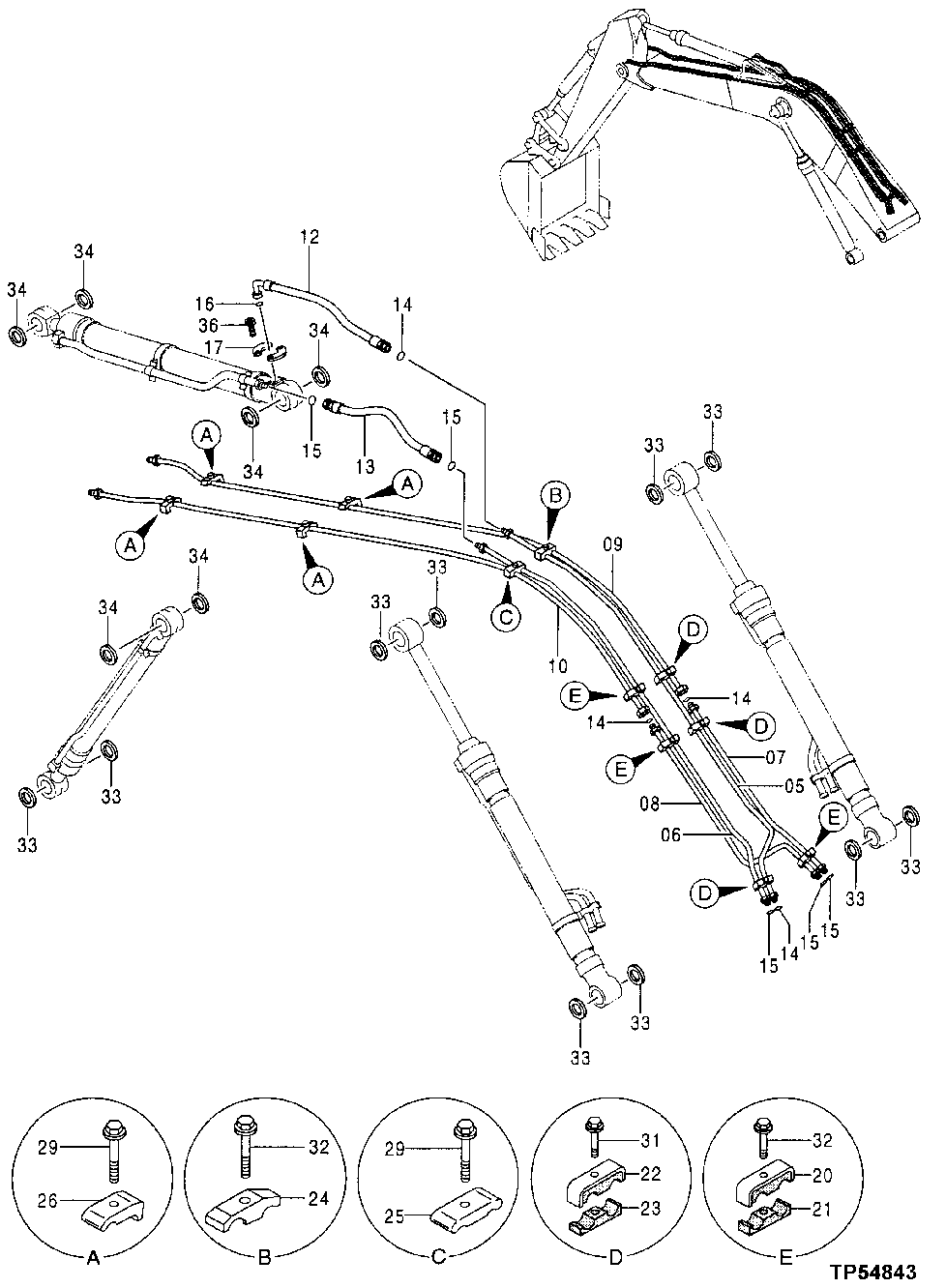

Запчасти John Deere 30LCR 358 - FRONT PIPINGS 3360 Hydraulic System

5

8063070

Oil Tube

SUB FOR AT217879

1шт.

6

8063068

Oil Tube

SUB FOR AT217878

1шт.

7

9744879G

Oil Line

SUB FOR AT217908 OR 9744879

1шт.

8

9744880

Oil Tube

SUB FOR AT217909

1шт.

9

8063077G

Oil Line

SUB FOR AT217880 OR 8063077

1шт.

10

8063078G

Oil Line

SUB FOR AT217881 OR 8063078

1шт.

12

AT131302

Hydraulic Hose

1" X 920 mm (36-1/4") X 36.5252"

1шт.

13

AT131303

Hydraulic Hose

30.1752" X 900 mm (35-1/2") X 30.1752"

1шт.

14

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

15

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

5шт.

16

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

17

4085560

Flange Fitting

SUB FOR TH101960

2шт.

20

Clamp

4285723 NLA; ORDER 4189859 Rubber

3шт.

4189859

Clamp

Steel

3шт.

21

AT318021

Clamp

SUB FOR AT155739

3шт.

22

4153488

Clamp

SUB FOR 4285725 OR AT155351

3шт.

23

AT309596

Clamp

SUB FOR AT155350 OR 4285724

3шт.

24

4153488

Clamp

SUB FOR TH103780

1шт.

25

Clamp

4285723 NLA; ORDER 4189859 Rubber

1шт.

4189859

Clamp

Steel

1шт.

26

4190126

Clamp

SUB FOR TH109830

4шт.

29

19M7363

Cap Screw

M12 X 60

5шт.

12H301

Lock Washer

1/2"

5шт.

31

12H301

Lock Washer

1/2"

3шт.

19M8088

Cap Screw

M12 X 75

3шт.

32

12H301

Lock Washer

1/2"

4шт.

19M7753

Cap Screw

M12 X 70

4шт.

33

TH102445

Seal

10шт.

34

TH102446

Seal

6шт.

36

19M9163

Screw

M12 X 40 SUB FOR J781240

4шт.
