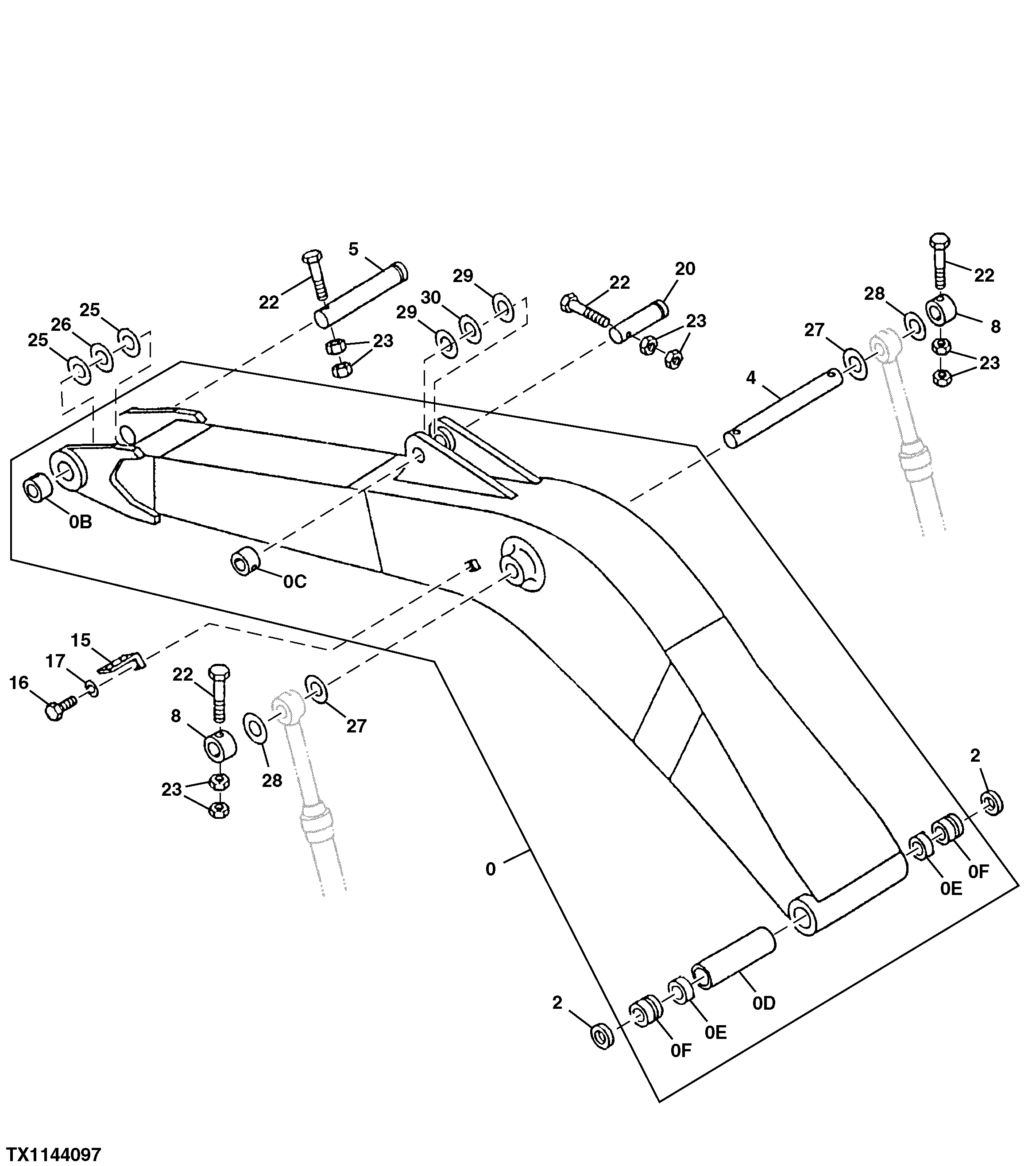

Запчасти John Deere 30LCR 326 - Boom 3344 Boom

0

7030266

Excavator Boom

SUB FOR AT217852, CONVENIENCE ASSEMBLY

1шт.

0B

TH102409

Bushing

92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")

1шт.

0C

4067719

Pivot

SUB FOR TH102410

1шт.

0D

4372730

Spacer

SUB FOR AT217817

1шт.

0E

4364501

Bushing

SUB FOR AT217799

2шт.

0F

4443885

Bushing

SUB FOR 4355877 AND AT217783

2шт.

2

TH102411

Seal

2шт.

4

TH109795

Dowel Pin

90 X 864 mm (3.543" X 34-1/64")

1шт.

5

TH109796

Dowel Pin

90 X 575 mm (3.543" X 22.638")

1шт.

8

TH102409

Bushing

92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")

2шт.

15

4224631

Angle

SUB FOR TH111685

1шт.

16

J901425

Cap Screw

SUB FOR TH104071

1шт.

17

12H317

Lock Washer

9/16"

1шт.

20

AT217742

Pin

1шт.

22

19M8503

Cap Screw

M20 X 160 SUB FOR P61796

4шт.

23

14M7277

Nut

M20

8шт.

25

4361176

Washer

SUB FOR AT214004

2шт.

26

4361177

Washer

SUB FOR TH106309 AND AT214005)

1шт.

27

4372971

Washer

SUB FOR AT217822

2шт.

28

4372970

Wear Plate

SUB FOR AT217821

2шт.

29

4366691

Thrust Washer

SUB FOR AT214029

2шт.

30

4367409

Thrust Washer

SUB FOR AT214039

1шт.
