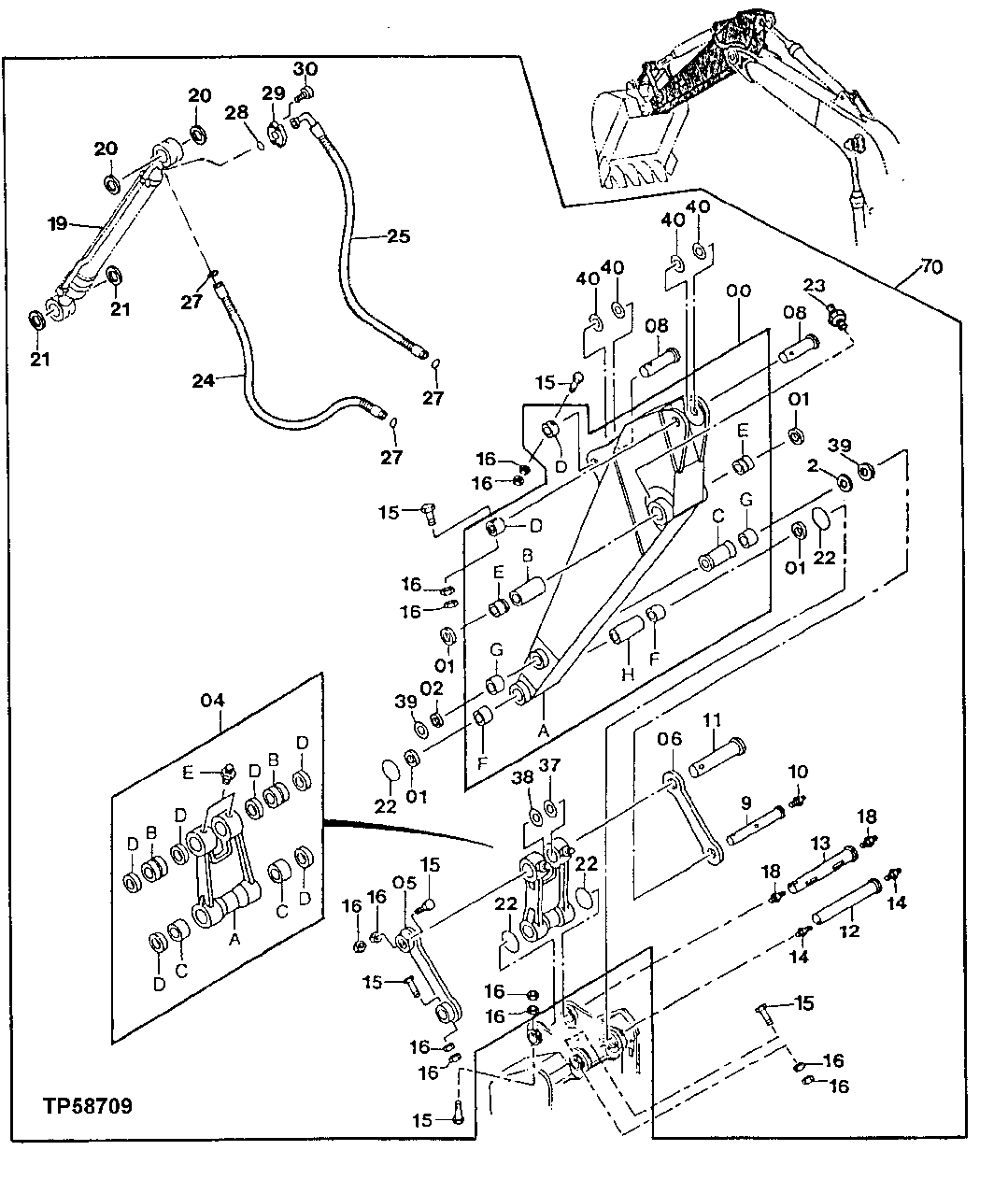

Запчасти John Deere 30LCR 325 - STANDARD ARM 2.96 M (9 FT 9 IN) 3340 Backhoe & Excavator Frames

0

AT217865

Arm

(SUB FOR AT154817)(CONVENIENCE ASSEMBLY)

1шт.

0A

Arm

1шт.

0B

4144320

Spacer

(SUB FOR TH102428)

1шт.

0C

4144380

Spacer

(SUB FOR TH102432)

1шт.

0D

4067719

Pivot

(SUB FOR TH102410)

2шт.

0E

3054062

Bushing

(SUB FOR AT154689)

2шт.

0F

TH109802

Bushing

90 X 105 X 70 mm (3.543" X 4.134" X 2.756")

2шт.

0G

TH109803

Bushing

80 X 95 X 55 mm (3.150" X 3.740" X 2.165")

2шт.

0H

4144379

Spacer

(SUB FOR TH102430)

1шт.

1

TH102445

Seal

4шт.

2

TH102446

Seal

2шт.

4

8066447

Link

(SUB FOR AT154835)

1шт.

4A

Link

1шт.

4B

TH109806

Bushing

2шт.

4C

TH109807

Bushing

90 X 105 X 100 mm (3.54 3" X 4.134" X 3-15/16")

2шт.

4D

TH102445

Seal

6шт.

4E

TH100074

Lubrication Fitting

2шт.

5

8050930

Link

(SUB FOR AT154838)

1шт.

6

3056355J

Link

(SUB FOR AT154693 OR 3056355)

1шт.

8

AT217742

Pin

2шт.

9

TH109810

Pin

1шт.

10

TH100074

Lubrication Fitting

1шт.

11

T138885

Pin

1шт.

T138902

Bushing

1шт.

19M8029

Cap Screw

M16 X 30

1шт.

12

TH110235

Pin Fastener

1шт.

13

TH110236

Pin Fastener

1шт.

14

TH100074

Lubrication Fitting

2шт.

15

19M8503

Cap Screw

M20 X 160 (SUB FOR P61796)

6шт.

16

14M7277

Nut

M20

12шт.

18

TH100074

Lubrication Fitting

2шт.

19

Cylinder

(BUCKET) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

20

TH102446

Seal

2шт.

21

TH102445

Seal

2шт.

22

4089028

O-Ring

(SUB FOR TH102444 OR T2 00732)(STANDARD O-RING)

4шт.

AT349466

Seal

(SPLIT O-RING)

4шт.

T397473

V-Ring Seal

V O-Ring

4шт.

23

TH100074

Lubrication Fitting

2шт.

24

AT155741

Hydraulic Hose

30.1752" X 1600 mm (63") X 30.1752"

1шт.

25

AT155740

Hydraulic Hose

1" X 1600 mm (63") X 30.1752"

1шт.

27

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

3шт.

28

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

29

4085560

Flange Fitting

(SUB FOR TH101960)

2шт.

30

19M9163

Screw

M12 X 40 (SUB FOR J781240)

4шт.

37

4124478

Washer

(SUB FOR TH106309)

2шт.

38

4189837

Washer

(SUB FOR TH106310)

2шт.

39

TH104296

Washer

84 X 145 X 1 mm (3.307" X 5.709" X 0.039")

2шт.

40

TH104297

Washer

84 X 145 X 2.250 mm (3. 307" X 5.709" X 0.089")

4шт.

70

AT181453

Arm

WHOLEGOODS (INCLUDES STANDARD ARM, BUCKET CYLINDER, HOSES, AND LINKAGE)

1шт.
