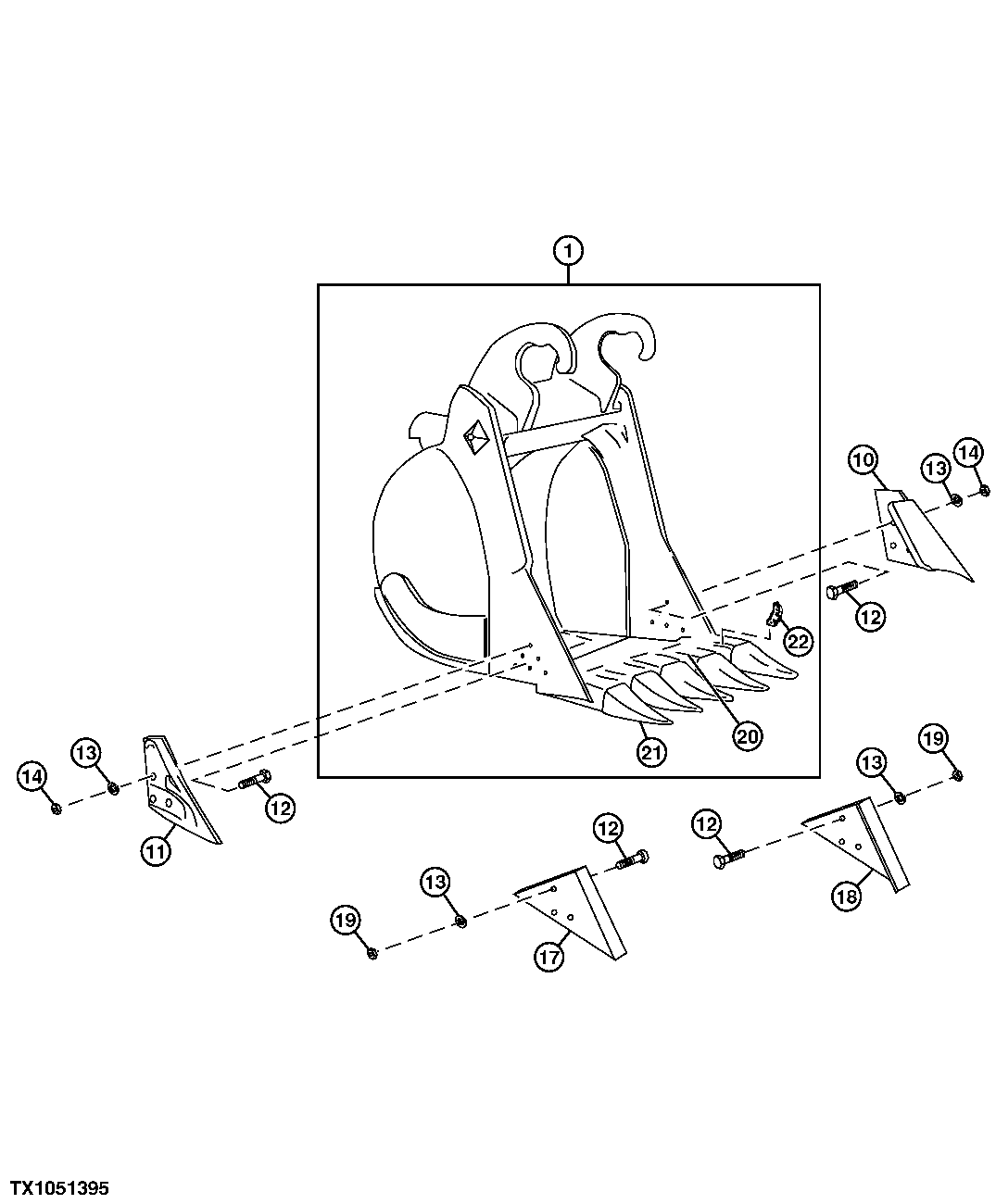

Запчасти John Deere 30LCR 307 - BUCKET (42 INCH HEAVY DUTY) 3302 Bucket With Teeth

1

Excavator Bucket

(F) ( AT188607 NLA) (42 INCH - 1.63 CUBIC YARD, HEAVY DUTY) (WOODS-CENTRAL FABRICATORS PART NO. C909325-623327)

1шт.

10

Cutting Edge

(K) (SUB AT131080)(LEFT)

1шт.

11

Cutting Edge

(K) (SUB AT131080)(RIGHT)

1шт.

12

09H1770

Bolt

7/8" X 2-1/2" (K) (K2)

6шт.

13

12H245

Lock Washer

7/8" (K) (K2)

6шт.

14

14H1077

Nut

(K) 7/8"

6шт.

17

Shroud

(WEAR SHROUD) (SUB AT167874 (K2))

1шт.

18

Shroud

(WEAR SHROUD) (SUB AT167874 (K2))

1шт.

19

14H1044

Nut

7/8" (K2)

6шт.

20

T802X400

Shank

5шт.

21

TT400

Tooth

(TIGER)

5шт.

TX400

Tooth

(STANDARD) (NOT ILLUSTR ATED) (AVAILABLE OPTION)

5шт.

22

TP400HD

Pin

5шт.
