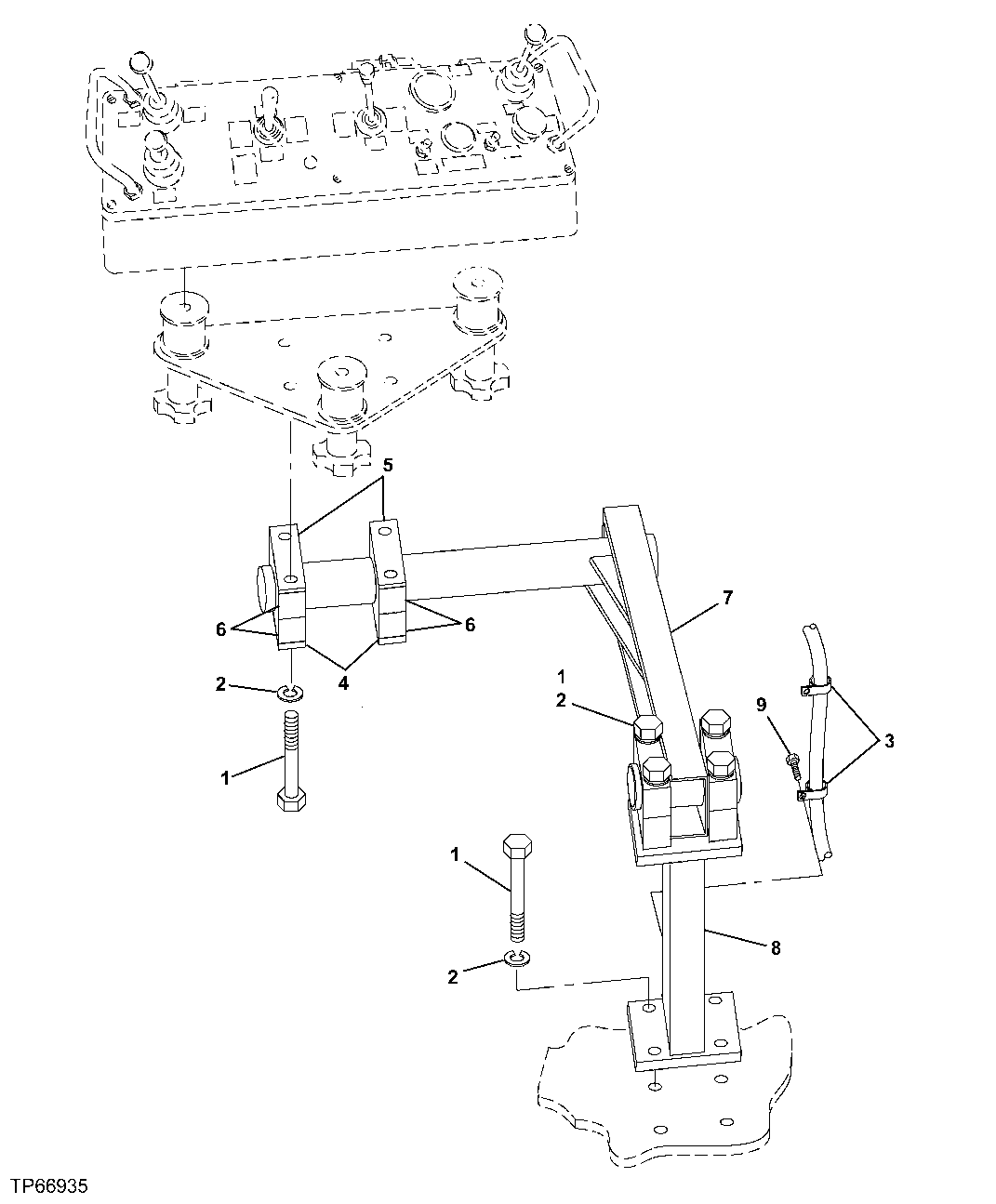

Запчасти John Deere 30LCR 304 - ROCK DRILL ELECTRIC/CONSOLE MOUNT 2263 Pneumatic System Lines & Hoses

1

19H2732

Cap Screw

3/8" X 2-3/4"

8шт.

2

24H1219

Washer

7/16" X 1" X 0.083"

10шт.

3

T28949

Clamp

2шт.

4

T166674

Plate

4шт.

5

T166675

Plate

4шт.

6

X5381-HPP

Clamp

4шт.

7

303968

Support

(UPPER CONSOLE MOUNT)

1шт.

8

303969

Support

(LOWER CONSOLE MOUNT)

1шт.

9

19M7938

Cap Screw

M10 X 20

2шт.
