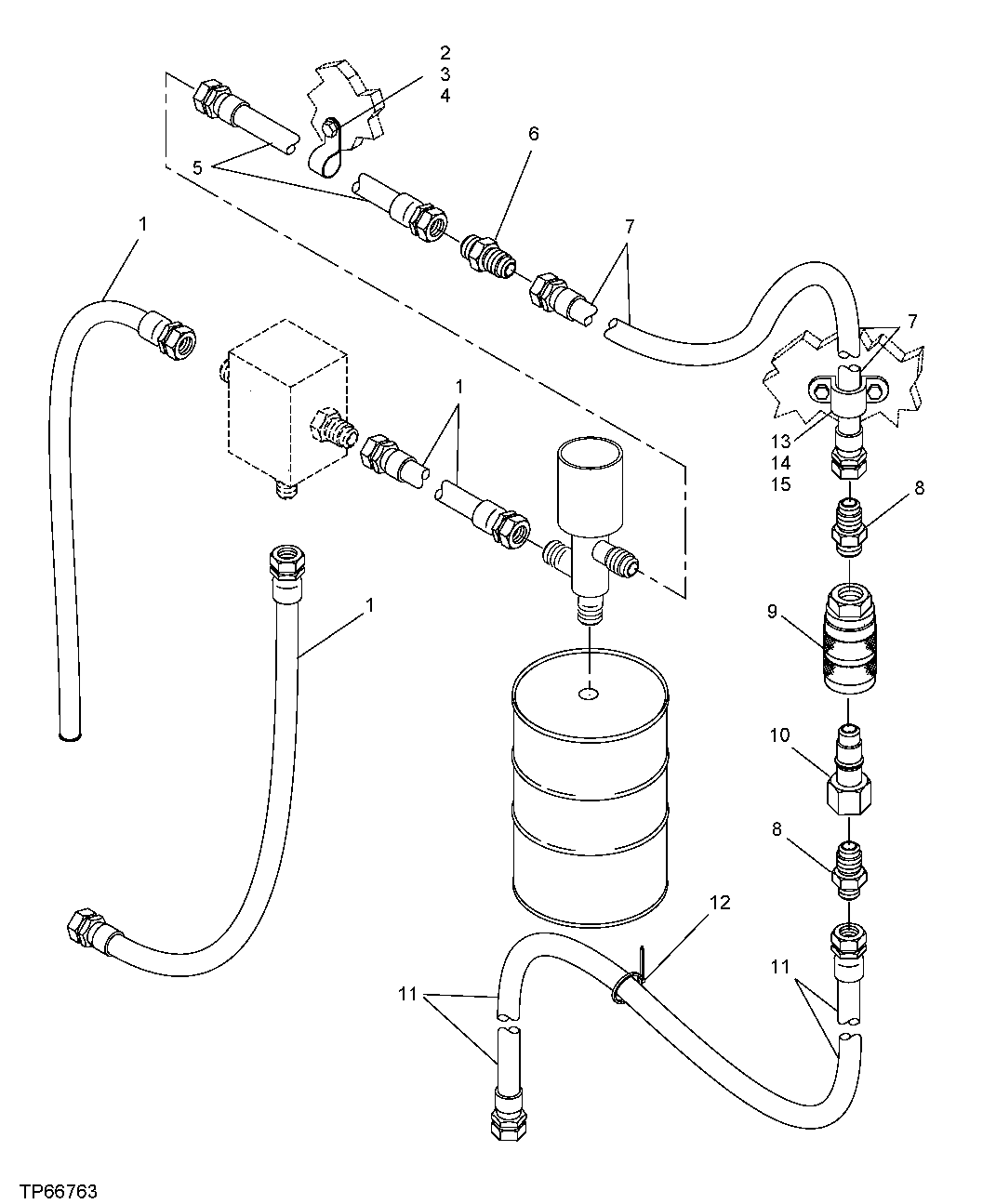

Запчасти John Deere 30LCR 299 - GREASE LINE, DRILL 2263 Pneumatic System Lines & Hoses

1

AT188885

Hydraulic Hose

3шт.

2

N205415

Clamp

5шт.

3

19M7358

Cap Screw

M10 X 40

9шт.

4

14M7168

Lock Nut

M12

5шт.

5

AT188888

Hydraulic Hose

1шт.

6

R27095

Fitting

1шт.

7

AT188891

Hydraulic Hose

1шт.

8

R44795

Adapter Fitting

2шт.

9

AT187855

Quick Coupler

1шт.

10

AT187856

Quick Coupler

1шт.

11

AT188892

Hose

1шт.

12

R44302

Tie Band

12шт.

13

19H3031

Cap Screw

3/8" X 2-1/2"

2шт.

14

24H1219

Washer

7/16" X 1" X 0.083"

2шт.

15

24H1290

Washer

21/64" X 3/4" X 0.035"

2шт.

16

T184236

Label

ROCK DRILL MAINT. (NOT ILLUSTRATED)

1шт.
